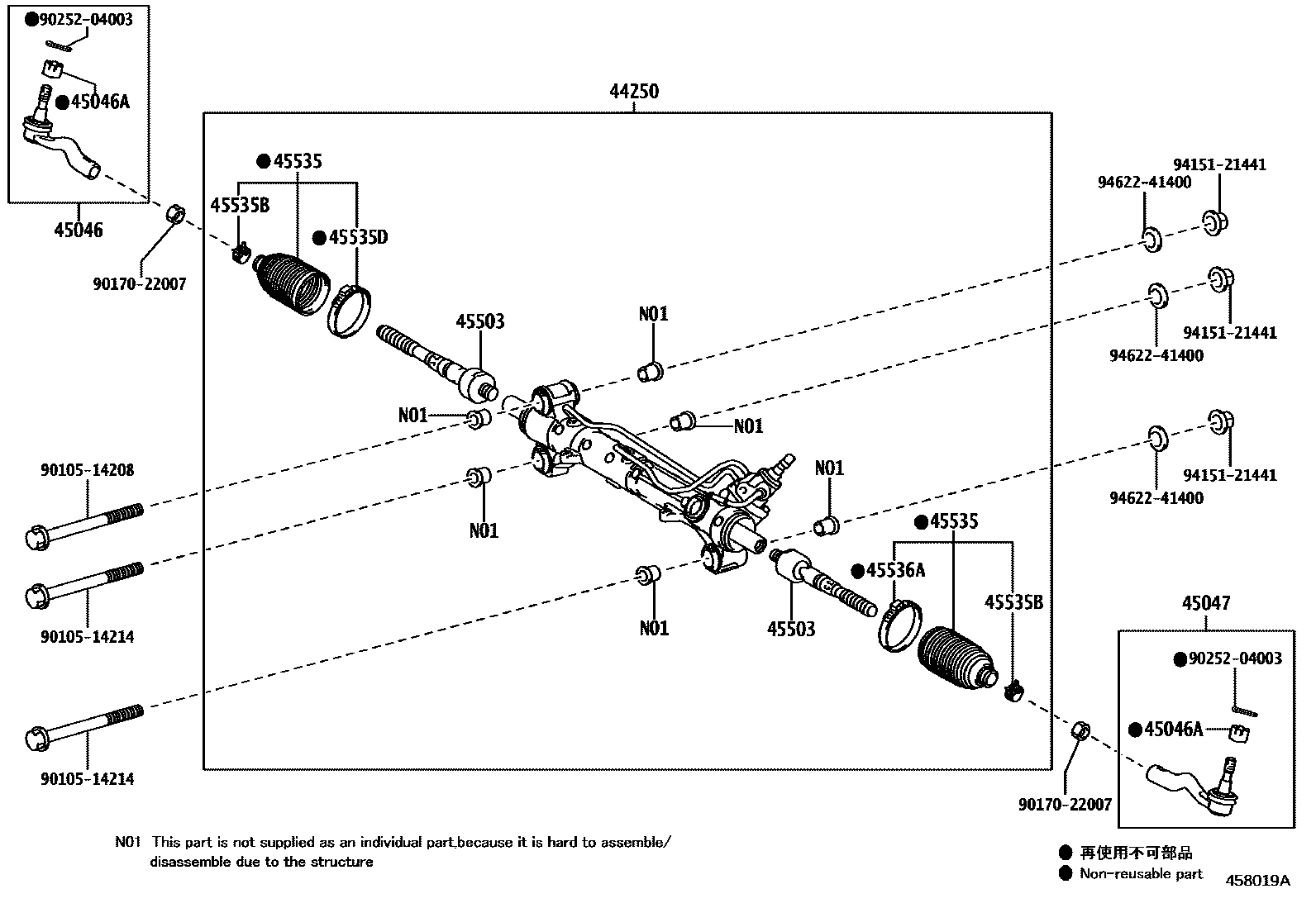

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
INDIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERTONLY); NEW ZEALAND SPEC&STEERING COLUMN-TILT & TELESCOPIC&LANE KEEPING SYSTEM- LDA & VIB(ALERT ONLY)
main44250-60310iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(V,Z);FJA300..LHD..5S..(S,V);FJA300..LHD..7S..(S,V,Z);VJA300..LHD..S..(GCC,GEN)202411
45046END SUB-ASSY, TIE ROD, RH
main45046-69256iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
45046ANUT, CASTLE(FOR TIE ROD END)
main90171-16011×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
45047END SUB-ASSY, TIE ROD, LH
main45046-69256iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202410-202411
45503END SUB-ASSY, STEERING RACK
main45503-60050×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
45535BOOT, STEERING RACK, NO.1
main45535-69035×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
45535BCLIP(FOR STEERING RACK BOOT)
main96133-42600×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
main90460-81008iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
main90460-81008iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
9010514208
main90105-14208
9010514214
main90105-14214
9017022007
main90170-22007
9025204003
main90252-04003
9415121441
main94151-21441
9462241400
main94622-41400
15 parts on this diagram · 2 diagrams in section
