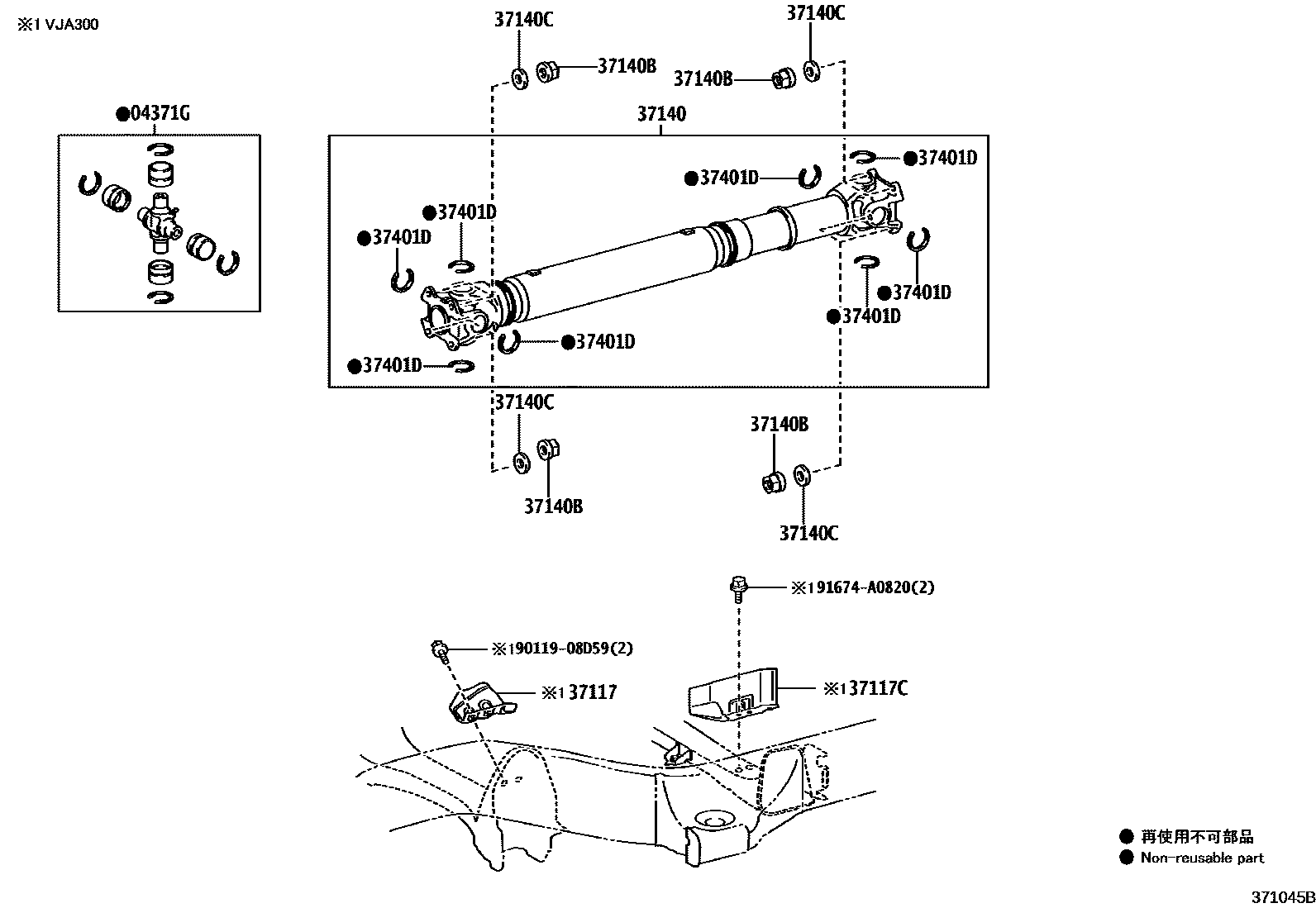

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1FRONT 0003 1REAR

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-26011×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

main04371-60070×2iGRJ300202104-202411

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-60060iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

main37117-60070iGRJ300202411

37117CINSULATOR, PROPELLER SHAFT HEAT NO.2

main37117-60080iVJA300..5S..S;VJA300..S..(GCC,GEN);GRJ300,VJA300..A,G,V,Z202411

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60550iGRJ300202411

main37140-60680iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-11001×8iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013×8iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039iGRJ300202104-202411

T=2.29,MARK 1

main90520-25040iGRJ300202104-202411

T=2.31,MARK 2

main90520-25041iGRJ300202411

T=2.33,NO MARK

main90520-25042iGRJ300202411

T=2.35,BROWN

main90520-25043iGRJ300202411

T=2.37,BLUE

main90520-25044iGRJ300202104-202411

T=2.39,MARK 6

main90520-25045iGRJ300202411

T=2.41,MARK 7

main90520-25046iGRJ300202411

T=2.43,MARK 8

main90520-25047iGRJ300202411

T=2.45,MARK 9

main90520-25048iGRJ300202104-202411

T=2.47,MARK 10

main90520-25049iGRJ300202411

T=2.49,MARK A

main90520-25050iGRJ300202104-202411

T=2.51,MARK B

main90520-25051iGRJ300202411

T=2.53,MARK C

main90520-25052iGRJ300202411

T=2.55,MARK D

main90520-25053iGRJ300202104-202411

T=2.57,MARK E

main90520-25054iGRJ300202104-202411

T=2.19,MARK D

main90520-25055iGRJ300202411

T=2.21,MARK E

main90520-25056iGRJ300202411

T=2.23,MARK F

main90520-25057iGRJ300202411

T=2.25,MARK G

main90520-25058iGRJ300202411

T=2.27,MARK H

main90520-29024iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.00,NO MARK

main90520-29025iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

T=2.03,BROWN

main90520-29026iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

T=2.06,BLUE

main90520-29027iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=2.09,NO MARK

main90520-29039iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=1.99,MARK 1

main90520-29040iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.01,MARK 2

main90520-29041iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.03,MARK 3

main90520-29042iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.05,MARK 4

main90520-29043iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

T=2.07,MARK 5

main90520-29044iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.09,MARK 6

main90520-29045iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.11,MARK 7

main90520-29046iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

T=2.13,MARK 8

main90520-29047iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=2.15,MARK 9

main90520-29048iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202411

T=2.17,MARK 10

9011908D59

main90119-08D59

91674A0820

main91674-A0820

9 parts on this diagram · 3 diagrams in section
