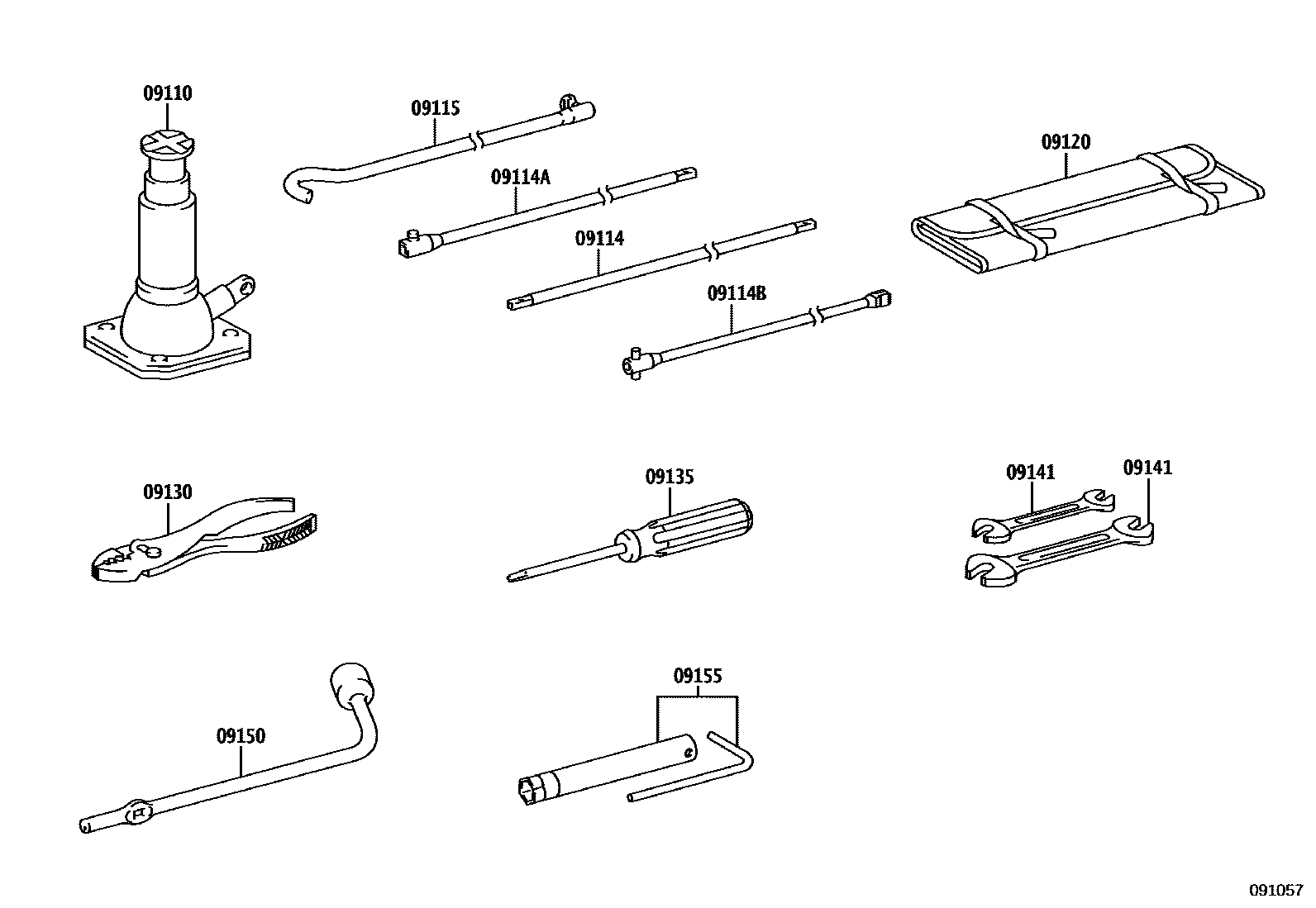

STANDARD TOOL

09110JACK ASSY

main09111-60150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

09114AEXTENSION SUB-ASSY, JACK HANDLE, NO.2

main09114-60070×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

09114BEXTENSION SUB-ASSY, JACK HANDLE, NO.3

main09114-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

09120BAG, TOOL

main09120-60250iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

09130PLIERS

main99913-11500iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

09135DRIVER, SCREW

main99915-10700iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

09141SPANNER

main99914-10810iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

8 X 10

main99914-11214iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

09155WRENCH, SPARK PLUG

main09155-70040iVJA300..7S..S..EUR202104

main09155-74010iGRJ300202104-202411

11 parts on this diagram · 1 diagram in section
