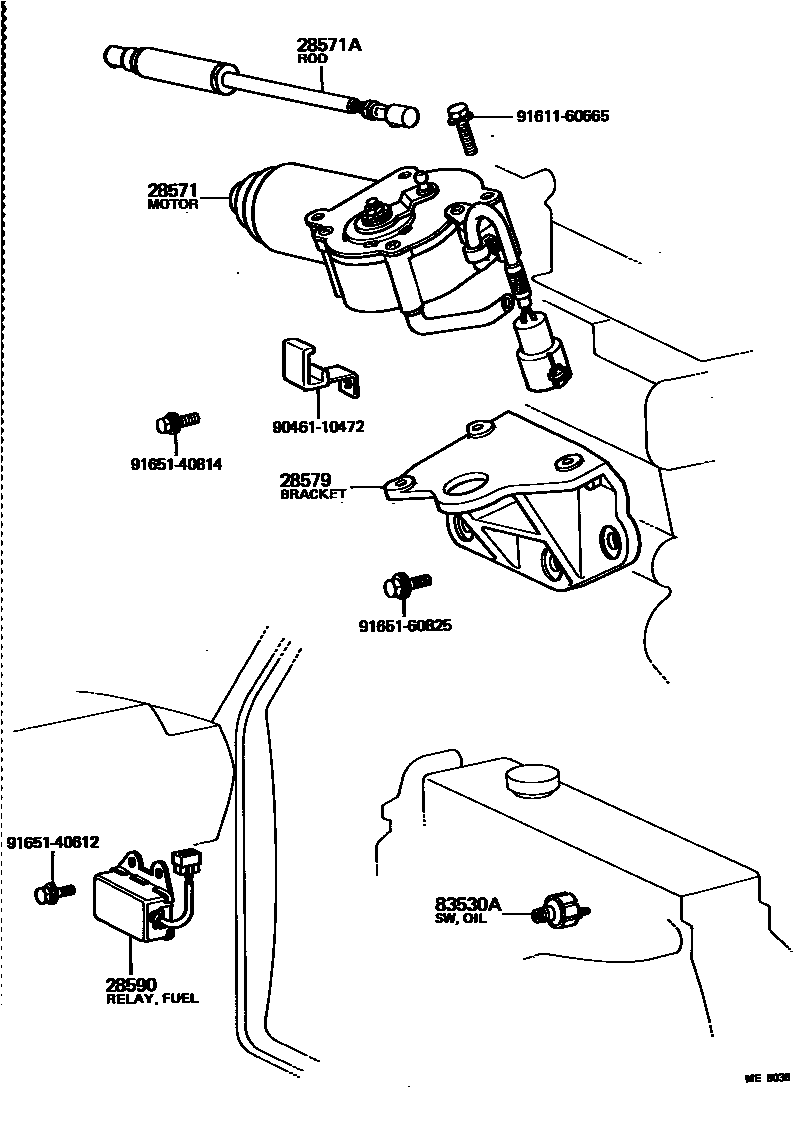

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

0001 1 0002 1

28571MOTOR, FUEL CONTROL

main28571-56120i3B..BJ60198008-198708

12V

main28571-56130i3B..BJ60..GEN198008-198510

24V

main28571-56140i2H..HJ60..MTM..ARL198008-198708

12V

main28571-56150i2H..HJ60..MTM..EUR198008-198708

24V

28571AROD, FUEL CONTROL MOTOR

main84580-36021i3B..BJ60198008-198708

main84580-36040i2H..HJ60..MTM..(ARL,EUR)198008-198708

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i3B..BJ60198008-198708

28590RELAY ASSY, FUEL CONTROL

main28590-56090i3B..BJ60;2H..HJ60..MTM..ARL198008-198708

12V

main28590-56100i3B..BJ60..GEN198008-198510

24V

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010iBJ60; HJ60..MTM..(ARL,EUR)198008-198502

main83530-14030iBJ60; HJ60..5F..(ARL,EUR); HJ60..GEN198502-198602

9046110472

main90461-10472

9161160665

main91611-60665

9165140612

main91651-40612

9165140814

main91651-40814

9165160825

main91651-60825

10 parts on this diagram · 2 diagrams in section
