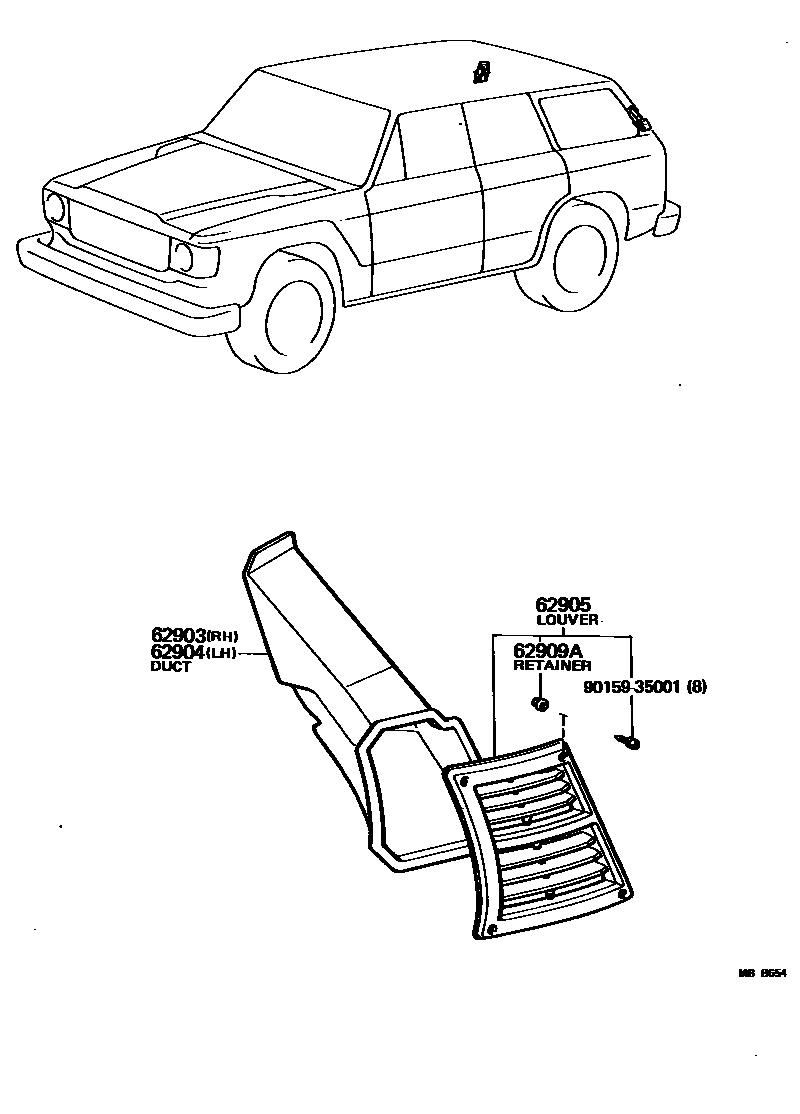

REAR VENTILATOR & ROOF VENTILATOR

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-90A00iBJ60,FJ6#,HJ6#198008-198708

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-90A00iBJ60,FJ6#,HJ6#198008-198708

62905LOUVER, QUARTER VENTILATION

main62905-69015iBJ60,FJ6#,HJ6#198008-198708

RH

main62906-69015iBJ60,FJ6#,HJ6#198008-198708

LH

62909ARETAINER SUB-ASSY, QUARTER VENTILATION LOUVER

main62909-22010×8iBJ60,FJ6#,HJ6#198008-198708

9015935001

main90159-35001

5 parts on this diagram · 1 diagram in section
