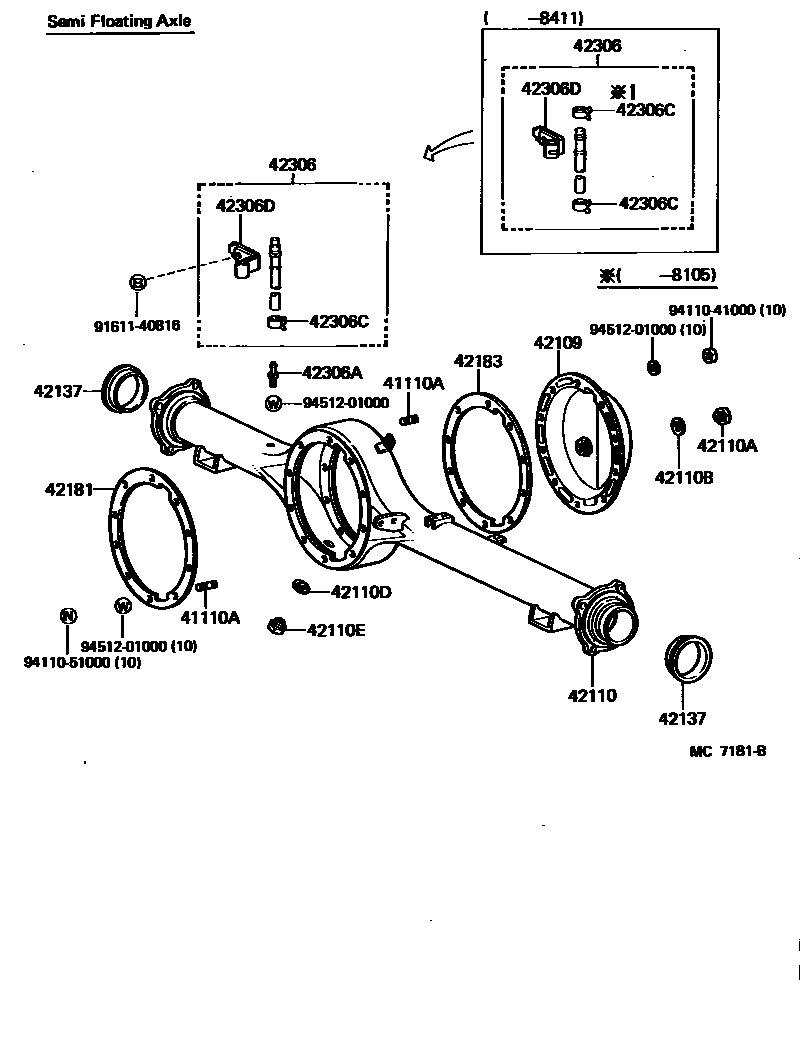

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60016iBJ60,FJ60,HJ60..ARL,GEN198008-198408

*AXC=K082,*FGR=37:9,*AXC=K082,*FGR=37:9

main41110-60017iBJ60,FJ60,HJ60..ARL,GEN198408-198411

*AXC=K082,*FGR=37:9,*AXC=K082,*FGR=37:9

main41110-60026iFJ60,HJ60..EUR,GEN198008-198408

*AXC=K052,*FGR=37:10

main41110-60027iFJ60,HJ60..EUR,GEN198408-198411

*AXC=K052,*FGR=37:10

main41110-60061iFJ60,HJ60..EUR,GEN198112-198408

*AXC=K055,*FGR=37:10,W/LSD

main41110-60062iFJ60,HJ60..EUR,GEN198408-198411

*AXC=K055,*FGR=37:10,W/LSD

main41110-60071iBJ60,FJ60,HJ60..ARL,GEN198112-198408

*AXC=K085,*FGR=37:9,*AXC=K085,*FGR=37:9,W/LSD

main41110-60072iBJ60,FJ60,HJ60..ARL,GEN198408-198411

*AXC=K085,*FGR=37:9,*AXC=K085,*FGR=37:9,W/LSD

main41110-60100iFJ62,HJ6#..MTM..(EUR,GEN)198411-198708

*FGR=37:10=3.700,*AXC=K052,*FGR=37:10

main41110-60110iHJ60..4FC..EUR198411-198708

*FGR=37:9=4.111,*AXC=K082,*FGR=37:9

main41110-60120iFJ62,HJ6#..MTM..(EUR,GEN)198411-198708

*FGR=37:10=3.700,*AXC=K055,*FGR=37:10,W/LSD

main41110-60130iHJ60..4FC..EUR198411-198708

*FGR=37:9=4.111,*AXC=K085,*FGR=37:9,W/LSD

main41110-60220iFJ62,HJ6#..MTM..(EUR,GEN)198608-198708

*FGR=37:10=3.700,*AXC=K054,*FGR=37:10,W/*DL

main41110-60230iHJ60..4FC..EUR198608-198708

*FGR=37:9=4.111,*AXC=KO85,*FGR=37:9,W/LSD

main41110-60230iHJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME198510-198708

*FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-10074iBJ60,FJ6#,HJ6#198212-198708

S=16 & 12.5,L=40.5,L=40,S=15&16

main90116-10075iBJ60,FJ6#,HJ6#198212-198708

S=18 & 12.5,L=53.5,L=53,S=15&18

main90116-10076iBJ60,FJ6#,HJ6#..EUR,GEN,ME198212-198708

S=15 & 12.5,L=35.5,L=32,S=12&20,SEMI FLOATING

main90116-10103iBJ60,FJ60,HJ60198008-198212

L=37,S=12 & 25,L=37,S=12&16

main90116-10104iBJ60,FJ60,HJ60198008-198212

L=50,S=12 & 18,L=50,S=12&18

main90116-10107iBJ60,FJ60,HJ60..EUR,GEN198008-198212

L=32,S=12 & 20,COVER,L=32,S=12&20,SEMI FLOATING

main90116-10124iFJ62,HJ60..SOB..ARL198510-198708

S=32 & 12.5,L=91.4,L=79.5,W/DIFFERENTIAL LOCK

42109COVER SUB-ASSY, REAR AXLE HOUSING

main42109-60050iBJ60,FJ6#,HJ6#..EUR,GEN,ME198008-198708

42110HOUSING ASSY, REAR AXLE

main42110-60170iBJ60,FJ60,HJ60..SOB..(EUR,GEN)198008-198210

SEMI FLOATING

main42110-60171iBJ60,FJ6#,HJ6#..WGV..(EUR,GEN,ME)198210-198608

SEMI FLOATING

main42110-60172iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

SEMI FLOATING

main42110-60190iFJ60,HJ60..LUB..(EUR,GEN)198008-198210

SEMI FLOATING

main42110-60191iFJ60,HJ60..LUB..(EUR,GEN)198210-198411

SEMI FLOATING

main42110-60192iFJ62,HJ6#..WGG..(EUR,GEN,ME)198411-198608

SEMI FLOATING

main42110-60193iFJ62,HJ6#..WGG..(EUR,GEN,ME)198608-198708

SEMI FLOATING

main42110-60210iBJ60,FJ60,HJ60..SOB198008-198210

FULL FLOATING

main42110-60211iFJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV..GEN198210-198608

FULL FLOATING

main42110-60212iBJ60,FJ62,HJ6#..WGV198608-198708

FULL FLOATING

main42110-60230iFJ60,HJ60..LUB198008-198210

FULL FLOATING

main42110-60231iFJ60..5F..HRF;FJ60,HJ60..SRF..LUB198210-198411

FULL FLOATING

main42110-60232iFJ62,HJ6#..WGG198411-198608

FULL FLOATING

main42110-60233iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

FULL FLOATING

main42110-60290iFJ62,HJ60..SOB..ARL198510-198608

FULL FLOATING,W/*DL

main42110-60291iFJ62,HJ6#..WGV198608-198708

FULL FLOATING,W/*DL

main42110-60301iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

FULL FLOATING,W/*DL

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iBJ60,FJ62,HJ6#198411-198708

main90341-18049iBJ60,FJ60,HJ60198008-198411

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iBJ60,FJ6#,HJ6#198008-198708

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iBJ60,FJ6#,HJ6#198008-198708

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iBJ60,FJ6#,HJ6#198008-198708

42137COLLAR, REAR AXLE HOUSING SIDE

main42137-55010iBJ60,FJ6#,HJ6#..EUR,GEN,ME198008-198708

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36010iBJ60,FJ6#,HJ6#198008-198708

main42181-60030iFJ62,HJ60..SOB..ARL198510-198708

W/DIFFERENTIAL LOCK

42183GASKET, REAR AXLE HOUSING COVER

main42183-35010iBJ60,FJ6#,HJ6#..EUR,GEN,ME198008-198708

42306HOSE SUB-ASSY, REAR AXLE BREATHER

main42306-60050iBJ60,FJ60,HJ60198008-198411

main42306-60051iBJ60,FJ62,HJ6#198411-198708

42306AUNION (FOR REAR AXLE BREATHER HOUSE)

main90404-10018iBJ60,FJ6#,HJ6#198008-198708

42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

main96132-30600iBJ60,FJ6#,HJ6#198008-198708

42306DCLAMP (FOR REAR AXLE BRATHER HOSE)

main90461-10558iBJ60,FJ6#,HJ6#198008-198708

9161140816

main91611-40816

9411041000

main94110-41000

9411051000

main94110-51000

9451201000

main94512-01000

19 parts on this diagram · 8 diagrams in section
