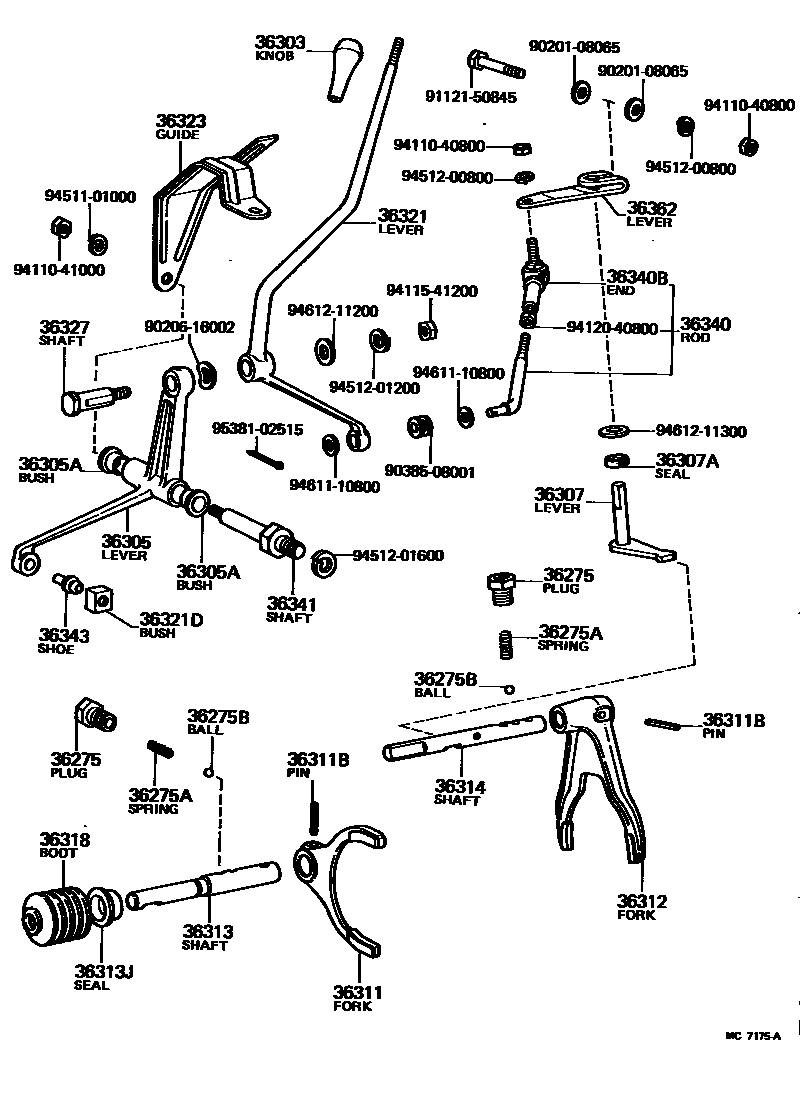

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

36275PLUG, SHIFT DETENT BALL SPRING

main90341-15001×2iBJ60,FJ6#,HJ6#198008-198708

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-14029×2iBJ60,FJ6#,HJ6#198008-198708

36275BBALL, SHIFT DETENT

main90360-10003×2iBJ60,FJ6#,HJ6#198008-198708

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60070iBJ60,FJ62,HJ6#..MTM198411-198708

*MCT

main36303-60080iBJ60,FJ60,HJ60198008-198411

*MCT

main36303-60130iBJ60,FJ62,HJ6#198411-198708

*ELC

36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK

main36337-60040iBJ60,FJ60,HJ60..4F198008-198411

main36337-60060iFJ60,HJ60..5F198210-198411

36305ABUSH (FOR FRONT DRIVE SHIFT LINK LEVER)

main36324-60050×2iBJ60,FJ6#,HJ6#..MTM198008-198708

36307LEVER SUB-ASSY, HIGH & LOW SHIFT INNER

main36307-60030iBJ60,FJ6#,HJ6#..MTM198008-198708

*MCT

main36307-60040iBJ60,FJ62,HJ6#198411-198708

*ELC

36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)

main90313-13001iBJ60,FJ6#,HJ6#198008-198708

36311FORK, TRANSFER GEAR SHIFT, NO.1

main36311-60040iBJ60,FJ60,HJ60198008-198210

main36311-60041iBJ60,FJ6#,HJ6#198210-198708

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05004iBJ60,FJ6#,HJ6#..MTM198008-198708

L=36.0,L=36

main90254-05016iBJ60,FJ6#,HJ6#198008-198708

L=25.5,L=25.5

36312FORK, TRANSFER GEAR SHIFT, NO.2

main36312-60030iBJ60,FJ6#,HJ6#..MTM198008-198708

*MCT

main36312-60040iBJ60,FJ62,HJ6#198411-198708

*ELC

36313SHAFT, TRANSFER FRONT DRIVE SHIFT

main36313-60050iBJ60,FJ6#,HJ6#..MTM198008-198708

*MCT

main36313-60070iBJ60,FJ62,HJ6#198411-198708

*ELC

36313JSEAL, OIL (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)

main90311-22005iBJ60,FJ6#,HJ6#..MTM198008-198708

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60030iBJ60,FJ60,HJ60198008-198411

main36314-60040iBJ60,FJ62,HJ6#198411-198708

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main36318-60020iBJ60,FJ6#,HJ6#..MTM198008-198708

36321LEVER, TRANSFER FRONT DRIVE SHIFT

main36321-60061iBJ60,FJ60,HJ60..4F198008-198411

main36321-60080iFJ60,HJ60..5F198210-198411

main36321-60130iBJ60,FJ62,HJ6#..MTM198411-198708

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main33548-60010iBJ60,FJ6#,HJ6#..MTM198008-198708

36323GUIDE, TRANSFER SHIFT LEVER

main36323-60060iBJ60,FJ60,HJ60..4F198008-198411

main36323-60080iBJ60,FJ62,HJ6#..MTM198411-198708

36327SHAFT, TRANSFER SHIFT LEVER

main36327-60030iBJ60,FJ62,HJ60198411-198412

*ELC

main36327-60031iBJ60,FJ62,HJ6#198412-198708

*ELC

main36327-60040iBJ60,FJ6#,HJ6#..MTM198008-198708

*MCT

36340ROD ASSY, HIGH AND LOW SHIFT, NO.2

main36340-60050iFJ60,HJ60..5F198210-198411

main36340-60060iBJ60,FJ60,HJ60..4F198008-198411

main36340-60080iBJ60,FJ62,HJ6#..MTM198411-198708

36340BEND ASSY (FOR HIGH & LOW SHIFT ROD)

main33740-26010iBJ60,FJ62,HJ6#..MTM198411-198708

main33740-35011iBJ60,FJ60,HJ60198008-198411

36341SHAFT, FRONT DRIVE SHIFT LINK SUPPORT

main36341-60030iBJ60,FJ60,HJ60198008-198107

main36341-60031iBJ60,FJ60,HJ60198107-198210

main36341-60032iBJ60,FJ6#,HJ6#..MTM198210-198708

36343SHOE, FRONT DRIVE SHIFT LINK LEVER (FOR DIRECT TYPE)

main36343-60020iBJ60,FJ6#,HJ6#..MTM198008-198708

36362LEVER, TRANSFER HIGH AND LOW SHIFT OUTER

main36362-60011iBJ60,FJ60,HJ60198008-198411

main36362-60020iBJ60,FJ62,HJ6#198411-198708

*ELC

main36362-60040iBJ60,FJ62,HJ6#..MTM198411-198708

*MCT

9020108065

main90201-08065

9020616002

main90206-16002

9038508001

main90385-08001

9112150845

main91121-50845

9411040800

main94110-40800

9411041000

main94110-41000

9411541200

main94115-41200

9412040800

main94120-40800

9451101000

main94511-01000

9451200800

main94512-00800

9451201200

main94512-01200

9451201600

main94512-01600

9461110800

main94611-10800

9461211200

main94612-11200

9461211300

main94612-11300

9538102515

main95381-02515

40 parts on this diagram · 2 diagrams in section
