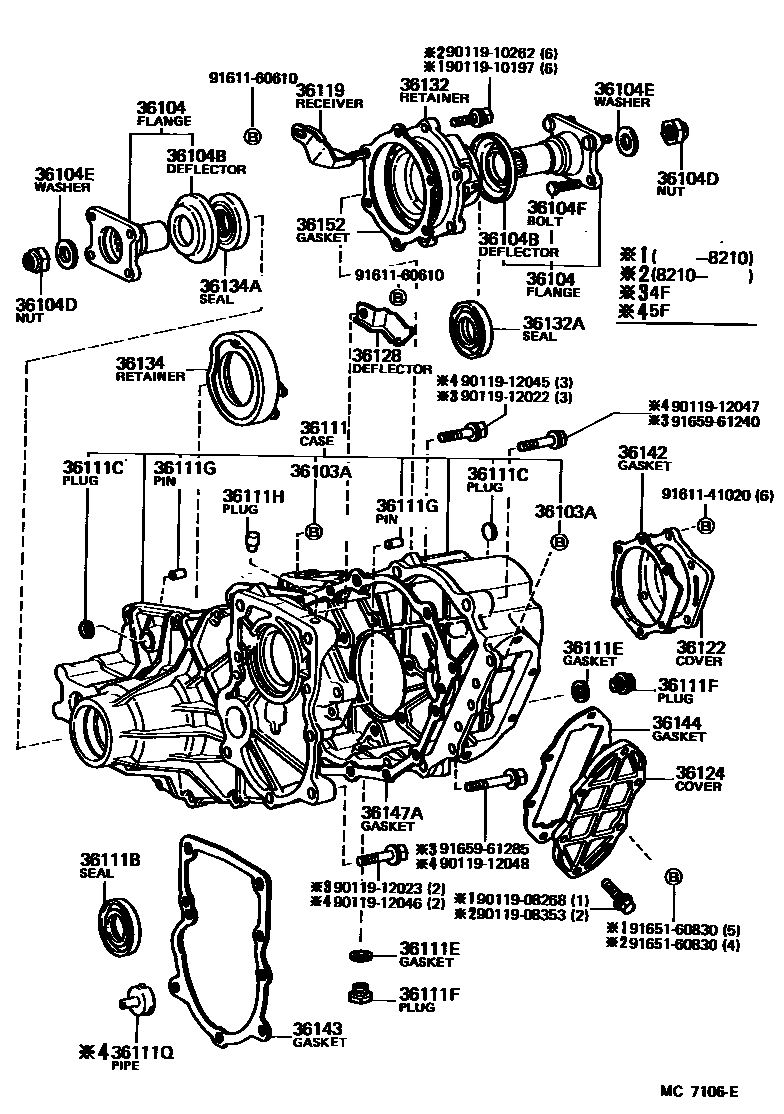

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1

36103ABOLT (FOR TRANSFER CASE)

main91651-61030×3iBJ60,FJ6#,HJ6#198008-198708

*10-1.25PX30-30,*10-1.25PX30-30

main91651-61040×8iBJ60,FJ6#,HJ6#198008-198708

*10-1.25PX40-30,*10-1.25PX40-30

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-60010iBJ60,FJ60,HJ60198008-198411

FR DRIVE

main33309-60020iBJ60,FJ60,HJ60198008-198408

RR DRIVE

main33309-60040iBJ60,FJ6#,HJ6#198408-198704

RR DRIVE

main33309-60041iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198704-198708

RR DRIVE

main33309-60070iBJ60,FJ62,HJ6#198411-198708

FR DRIVE

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-60010iBJ60,FJ6#,HJ6#198008-198708

FR DRIVE

main33325-60020iBJ60,FJ6#,HJ6#198008-198708

RR DRIVE

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22005×2iBJ60,FJ6#,HJ6#198008-198708

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-22005×2iBJ60,FJ6#,HJ6#198008-198708

36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-11124×4iBJ60,FJ6#,HJ6#198008-198708

36111CASE, TRANSFER

main36103-60010iBJ60,FJ60,HJ60198008-198210

main36103-60011iBJ60,FJ60,HJ60198210-198411

main36103-60050iBJ60,FJ62,HJ60..4F198411-198510

*MCT

main36103-60060iBJ60,FJ62,HJ60..4F198411-198510

*ELC

main36103-60070iBJ60,FJ62,HJ60..5F198411-198510

*MCT

main36103-60080iBJ60,FJ62,HJ60..5F198411-198510

*ELC

main36103-60090iFJ62,HJ60..4FC198411-198510

main36103-60100iBJ60..4F198411-198510

*ELC,NEUTRAL INDICATOR SWITCH

main36103-60120iBJ60,FJ62,HJ60..4F198510-198708

*MCT

main36103-60130iBJ60,FJ62,HJ60..4F198510-198708

*ELC

main36103-60140iBJ60,FJ62,HJ6#..5F198510-198708

*MCT

main36103-60150iBJ60,FJ62,HJ6#..5F198510-198708

*ELC

main36103-60160iFJ62,HJ6#..4FC198510-198708

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-48002iBJ60,FJ60,HJ60198008-198210

main90311-48007iBJ60,FJ60,HJ60198210-198411

main90311-48008iBJ60,FJ62,HJ6#..MTM198411-198608

main90311-48012iBJ60,FJ62,HJ6#..MTM198608-198708

main90316-48002iFJ62,HJ6#..4FC198411-198608

main90316-48003iFJ62,HJ61..4FC;HJ60..4FC..EUR198608-198708

36111CPLUG (FOR TRANSFER CASE)

main90331-16050×2iBJ60,FJ6#,HJ6#198008-198609

main96411-11600×2iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198609-198708

36111EGASKET (FOR TRANSFER CASE)

main12157-10010×2iBJ60,FJ60,HJ60198008-198109

main90430-18007×2iBJ60,FJ60,HJ60198109-198408

main90430-18008×2iBJ60,FJ6#,HJ6#198408-198708

36111FPLUG (FOR TRANSFER CASE)

main90341-18002iBJ60,FJ60,HJ60198008-198304

FILLER PLUG

main90341-18006iBJ60,FJ6#,HJ6#198304-198708

FILLER PLUG

main90341-18057iBJ60,FJ6#,HJ6#198008-198708

DRAIN PLUG

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10006×2iBJ60,FJ6#,HJ6#198008-198708

L=24,0D=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03075iBJ60,FJ6#,HJ6#198008-198708

36111QPIPE, OIL RECEIVER

main33124-36010iBJ60,FJ6#,HJ6#..5F198210-198708

36119RECEIVER, TRANSFER OIL, NO.1

main36119-60010iBJ60,FJ6#,HJ6#198008-198708

36122COVER, TRANSFER CASE, NO.2

main36122-60040iBJ60,FJ6#,HJ6#198008-198708

36124COVER, TRANSFER POWER TAKE-OFF

main36124-60020iBJ60,FJ6#,HJ6#198008-198708

36128DEFLECTOR, BREATHER OIL

main36128-60020iBJ60,FJ60,HJ60198008-198210

main36128-60021iBJ60,FJ6#,HJ6#198210-198708

36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1

main36132-60020iBJ60,FJ6#,HJ6#198008-198708

main36132-60030iFJ60..LHD..LUB..GEN198111-198210

VENEZUELA SPEC

36132ASEAL, OIL (FOR OUTPUT SHAFT RETAINER)

main90311-45001iFJ60..5F..LUB..GEN198210-198411

VENEZUELA SPEC

main90311-48003iBJ60,FJ60,HJ60198008-198411

main90311-48010iBJ60,FJ62,HJ6#198411-198708

36134RETAINER, OUTPUT SHAFT BEARING, FRONT

main36134-60020iBJ60,FJ6#,HJ6#198008-198708

36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)

main90311-48002iBJ60,FJ60,HJ60198008-198411

main90311-48009iBJ60,FJ62,HJ6#198411-198708

36142GASKET, TRANSFER COVER

main36142-60030iBJ60,FJ6#,HJ6#198008-198708

36143GASKET, TRANSFER CASE, FRONT

main33142-60020iBJ60,FJ60,HJ60..4F198008-198411

main33142-60030iBJ60,FJ6#,HJ6#..5F198210-198708

main33142-60040iBJ60,FJ62,HJ60..4F198411-198708

main36143-60030iFJ62,HJ6#..4FC198411-198708

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main36144-60020iBJ60,FJ6#,HJ6#198008-198708

36147AGASKET, TRANSFER CASE

main36143-60020iBJ60,FJ6#,HJ6#198008-198708

36152GASKET, OUTPUT SHAFT BEARING RETAINER

main36152-60030iBJ60,FJ6#,HJ6#198008-198708

9011908268

main90119-08268

9011908353

main90119-08353

9011910197

main90119-10197

9011910262

main90119-10262

9011912022

main90119-12022

9011912023

main90119-12023

9011912045

main90119-12045

9011912046

main90119-12046

9011912047

main90119-12047

9011912048

main90119-12048

9161141020

main91611-41020

9161160610

main91611-60610

9165160830

main91651-60830

9165961240

main91659-61240

9165961285

main91659-61285

42 parts on this diagram · 3 diagrams in section
