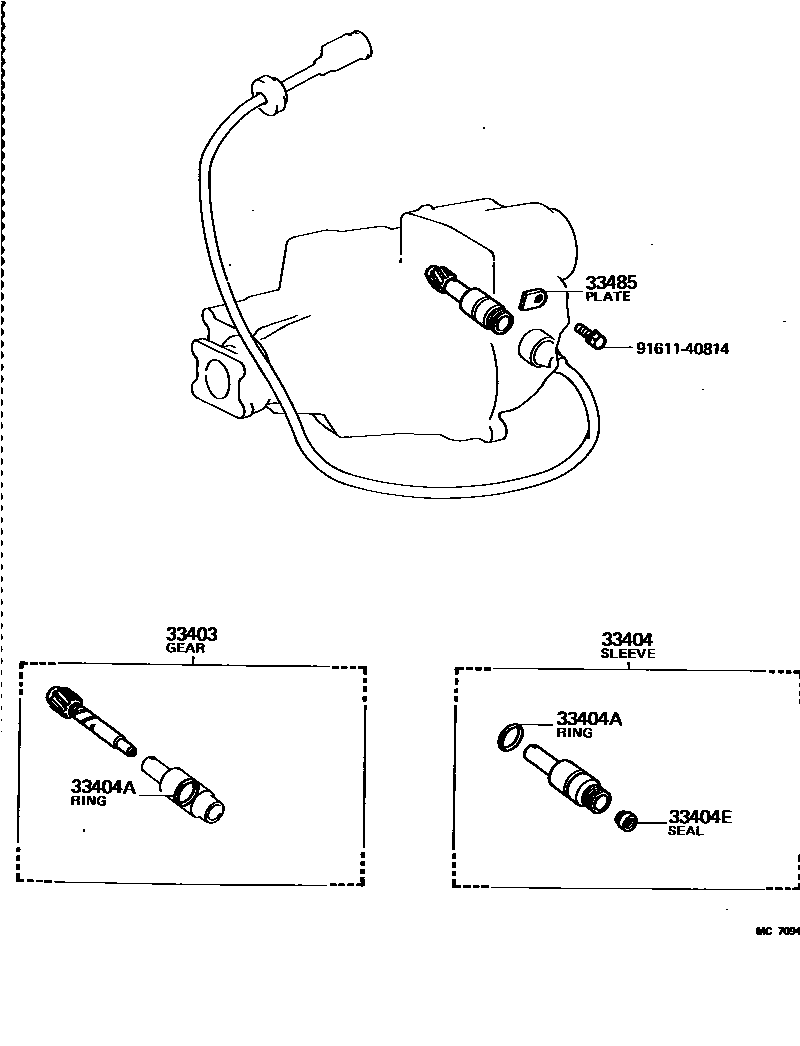

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69016iBJ60,FJ60,HJ60..SOB..(EUR,GEN)198008-198708

N=17,MARK 17:6,N=17,MARK 17X6

main33403-69055iFJ62..SOB..GEN198008-198708

N=15,MARK 15:6,N=15,MARK 15X6

main33403-69075iBJ60..ME;BJ60..4F;FJ62,HJ60..MTM198008-198708

N=16,MARK 16:6,N=16,MARK 16X6

main33403-69105iFJ62,HJ60..MTM..GEN198510-198708

N=16,MARK 16X7

main33403-69115iFJ6#,HJ60..MTM..GEN198008-198708

N=17,MARK 17X7

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iBJ60,FJ6#,HJ6#..MTM198008-198708

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iBJ60,FJ62,HJ6#..MTM198608-198708

main90301-18018iBJ60,FJ6#,HJ6#..MTM198008-198608

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBJ60,FJ6#,HJ6#..MTM198008-198708

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBJ60,FJ6#,HJ6#..MTM198008-198708

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
