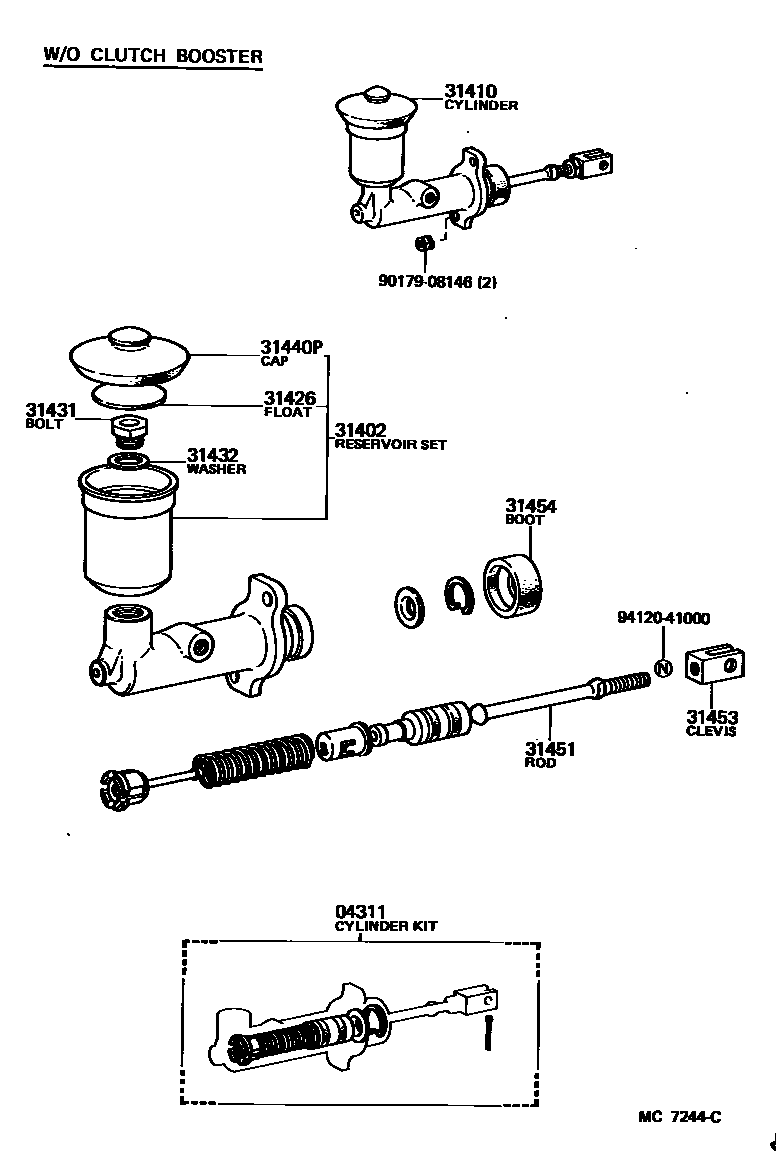

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60030iBJ60,FJ60,HJ60198008-198411

sub04311-60031

main04311-60040iBJ60,HJ60..RHD198210-198301

W/CLUTCH BOOSTER

main04311-60041iBJ60,FJ62,HJ6#..MTM198704-198708

W/CLUTCH BOOSTER

sub04311-60042

main04311-60050iBJ60,FJ62,HJ6#..MTM198411-198708

sub04311-60051

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iBJ60,HJ60..RHD198210-198301

W/CLUTCH BOOSTER

main31402-30030iBJ60,FJ62,HJ6#..MTM198411-198708

main47202-12010iBJ60,FJ60,HJ60198008-198411

sub47202-12050

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60010iFJ60..ARL,GEN198210-198411

W/CLUTCH BOOSTER

main31401-60020iBJ60,FJ62,HJ6#..MTM198411-198704

W/CLUTCH BOOSTER

main31401-60021iBJ60,FJ62,HJ6#..MTM198704-198708

W/CLUTCH BOOSTER

sub31401-60022

main31410-60050iBJ60,FJ60,HJ60198008-198411

sub31410-60051

main31410-60280iBJ60,FJ62,HJ6#..MTM198411-198708

sub31410-60281

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iBJ60,FJ6#,HJ6#..MTM198008-198708

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ60,HJ60..RHD198210-198301

W/CLUTCH BOOSTER

main47231-30010iBJ60,FJ6#,HJ6#..MTM198008-198708

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iBJ60,FJ6#,HJ6#..MTM198008-198708

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBJ60,FJ60,HJ60198008-198411

main47230-20040iBJ60,FJ62,HJ6#..MTM198411-198708

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30030iBJ60,FJ60,HJ60198008-198411

main31451-60050iBJ60,FJ62,HJ6#..MTM198411-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iBJ60,FJ62,HJ6#..MTM198411-198611

main31453-30011iBJ60,FJ60,HJ60198008-198411

main31453-35010iBJ60,FJ62,HJ6#..MTM198611-198708

31454BOOT, CLUTCH MASTER CYLINDER

main31454-30030iBJ60,FJ6#,HJ6#..MTM198008-198708

main47265-20050iBJ60,HJ60..RHD198210-198301

W/CLUTCH BOOSTER

9017908146

main90179-08146

9412041000

main94120-41000

12 parts on this diagram · 3 diagrams in section
