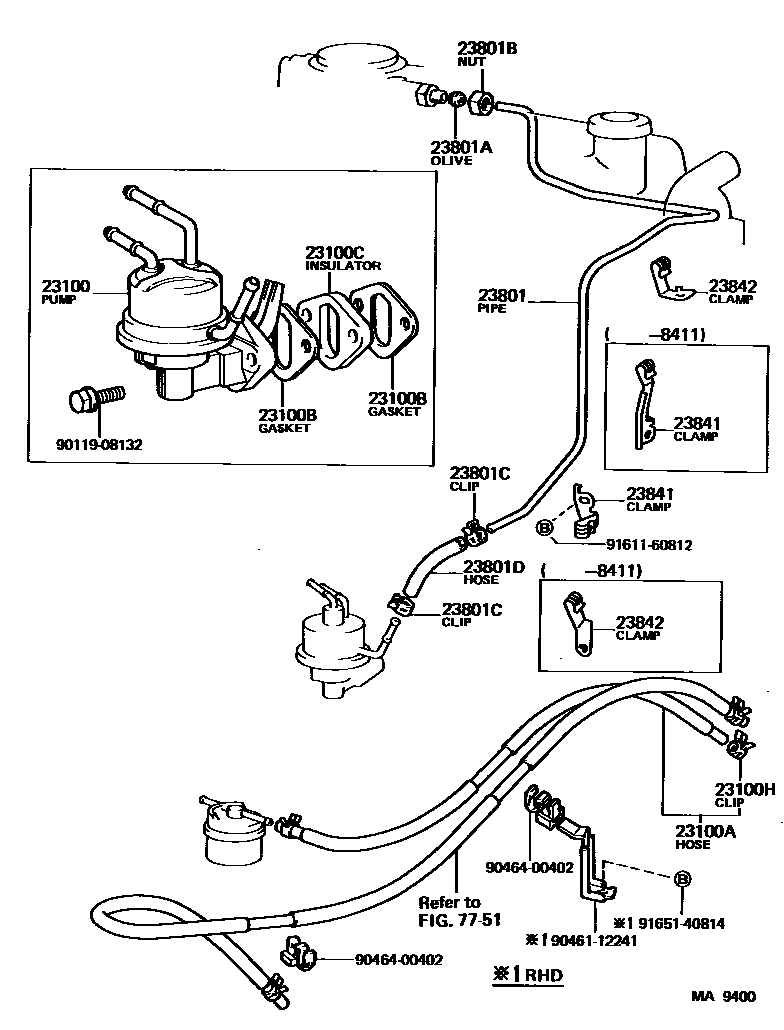

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-61050i2F..FJ60198008-198411

main23100-61060i2F..FJ60..ARL,GEN198308-198411

main23100-61080i3F..FJ62198411-198704

main23100-61090i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198605-198704

CHINA SPEC

sub23100-61091

main23100-61100i3F..FJ62198704-198708

sub23100-61101

23100AHOSE, FUEL

main23820-61041i2F,3F..FJ6#198008-198611

sub77260-60100

main77260-60100i3F..FJ62198611-198708

main77260-60120i3F..FJ62..RHD198704-198708

23100BGASKET, FUEL PUMP

main90923-05005i2F..FJ60198008-198410

sub90923-05019

main90923-05016i2F,3F..FJ6#198410-198708

sub90923-06010

sub90923-06014

23100CINSULATOR, FUEL PUMP

main90923-06001i2F..FJ60198008-198410

sub90923-06009

main90923-06008i2F,3F..FJ6#198410-198708

sub90923-06010

sub90923-06014

23100HCLIP(FOR FUEL HOSE)

main96132-30800i2F,3F..FJ6#198008-198704

sub96132-51300

main96132-31000i3F..FJ62198704-198708

sub96132-41500

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-61032i2F..FJ60198008-198411

main23811-61060i3F..FJ62198411-198708

23801AOLIVE(FOR FUEL PIPE)

main96395-71400i2F,3F..FJ6#198008-198708

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041i2F,3F..FJ6#198008-198708

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30800i2F,3F..FJ6#198008-198708

sub96132-51300

23801DHOSE, FUEL PIPE, NO.1

main95332-08020i2F,3F..FJ6#198008-198702

L=200(*H,L=130)

sub95333-08020

main95333-08020i3F..FJ62198702-198708

L=200(*H,L=130)

sub95337-08020

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-61021i2F..FJ60198008-198411

main23841-61030i3F..FJ62198411-198708

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-61020i3F..FJ62198411-198708

main23842-61031i2F..FJ60198008-198411

7751

9011908132

main90119-08132

9046112241

main90461-12241

9046400402

main90464-00402

9161160812

main91611-60812

9165140814

main91651-40814

18 parts on this diagram · 2 diagrams in section
