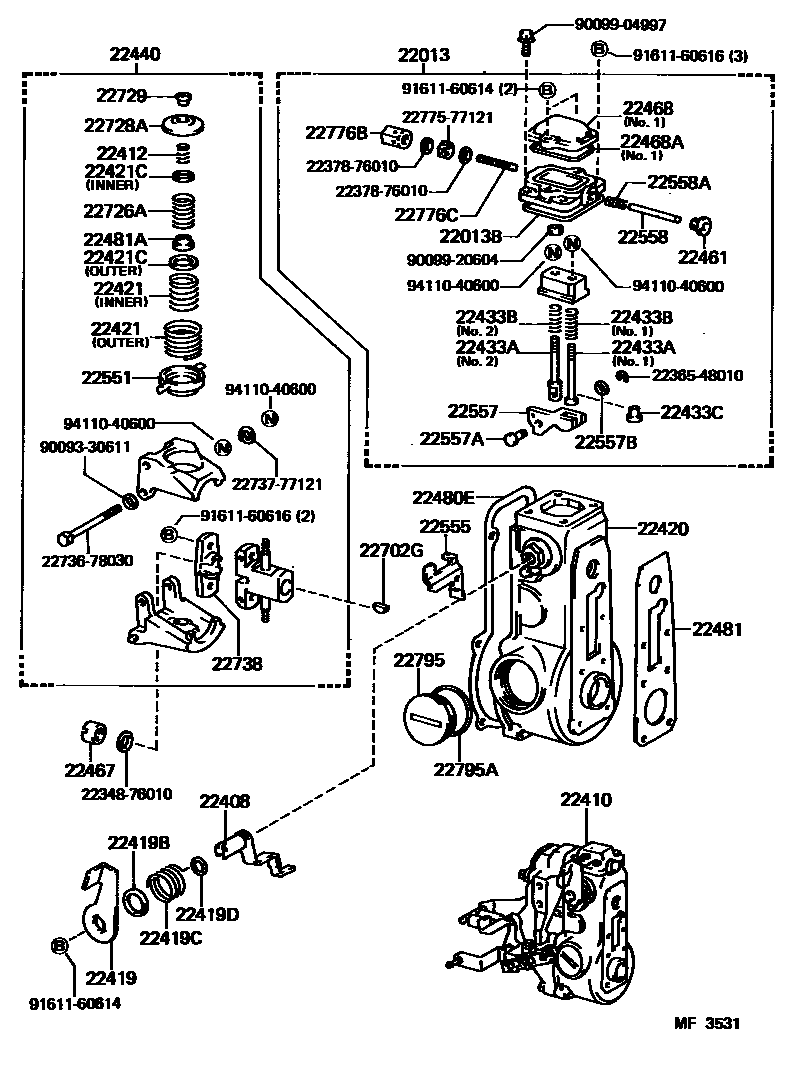

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
COLD SPEC
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
22408ARM, STOPPER
COLD SPEC
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
COLD SPEC
W/PS
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
COLD SPEC
22419BWASHER, PLATE(FOR STOPPER LEVER)
T=0.50,T=0.5
T=0.10,T=0.1
T=0.05,T=0.2
22419CSPRING, RETURN(FOR STOPPER LEVER)
COLD SPEC
22419DRING, O(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
COLD SPEC
22421SPRING, IDLING
INNER
INNER
OUTER
22421CWASHER, IDLING SPRING
T=0.20,OUTER,T=0.2
T=0.40,OUTER,T=0.4
T=0.60,OUTER,T=0.6
T=0.40,INNER,T=0.4
T=0.60,INNER,T=0.6
T=0.50,OUTER,T=0.5
T=0.55,INNER,T=0.55
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.2
NO.2,COLD SPEC
NO.1
NO.2
22433BSPRING(FOR ADAPTER SCREW)
NO.2
NO.2
NO.2,COLD SPEC
NO.1
NO.2
22433CBUSH(FOR ADAPTER SCREW)
22440FLYWEIGHT SUB-ASSY
22461PLUG, SCREW
FULL ROAD STOPPER HOUSING
GOVERNOR COVER
22467NUT, ROUND
22468COVER, PLATE
NO.2
NO.2
NO.1
22468AO, RING
NO.1
NO.2
NO.1
22480EGASKET, GOVERNOR COVER
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22555BRACKET, STOPPER
22557CAM, FULL STOP
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
T=0.20,T=0.20
T=0.05,T=0.05
T=0.10,T=0.10
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
22702LEVER ASSY, FLOATING
COLD SPEC
22702GKEY, WOODRUFF(FOR FROATING LEVER)
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
2234876010BUSH, GEAR SHAFT
main22348-76010
2236548010RING, E(FOR INJECTION PUMP LEVER)
main22365-48010
2237876010WASHER, DRAIN SCREW
main22378-76010
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
9009330611
main90093-30611
9009904997
main90099-04997
9009920604
main90099-20604
9161160614
main91611-60614
9161160616
main91611-60616
9411040600
main94110-40600
52 parts on this diagram · 4 diagrams in section
