FRONT DOOR LOCK & HANDLE

0001 1 0003 1 0005 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69250-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69250-90300iBJ40,FJ40,45,HJ45..PIC,V197501-197608

FOR STEEL DOOR

main69250-90301iBJ4#,FJ4#,HJ45197608-198007

FOR STEEL DOOR

main69261-60010iFJ40,42,43..TP196903-197309

FOR CANVAS DOOR

main69261-90300iBJ4#,FJ40,43..TP..GEN197309-198007

FOR CANVAS DOOR

main69270-39015iFJ55196903-198007

69207FSPRING, TENSION(FOR FRONT DOOR INSIDE HANDLE)

main90506-16191iBJ4#,FJ40,42,43..TP196903-198007

FOR CANVAS DOOR

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69260-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69260-90300iBJ40,FJ40,45,HJ45..PIC,V197501-197608

FOR STEEL DOOR

main69260-90301iBJ4#,FJ4#,HJ45197608-198007

FOR STEEL DOOR

main69262-60010iFJ40,42,43..TP196903-197309

FOR CANVAS DOOR

main69262-90300iBJ4#,FJ40,43..TP197309-198007

FOR CANVAS DOOR

main69270-39015iFJ55196903-198007

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69201-60010iBJ4#,FJ40,42,43..TP196903-198007

FOR CANVAS DOOR

main69201-90901iBJ4#,FJ40,43,45,HJ45196903-197509

FOR STEEL DOOR

main69210-90300iBJ4#,FJ4#,HJ45197501-198007

FOR STEEL DOOR

main69210-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69210-90351iFJ55196903-198007

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69201-60010iBJ4#,FJ40,42,43..TP196903-198007

FOR CANVAS DOOR

main69201-90901iBJ4#,FJ40,43,45,HJ45196903-197509

FOR STEEL DOOR

main69220-90300iBJ40,FJ40,45,HJ45..PIC,V197501-198007

FOR STEEL DOOR

main69220-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69220-90351iFJ55196903-198007

69310LOCK ASSY, FRONT DOOR, RH

main69310-60031iBJ4#,FJ40,43,45,HJ45196903-197509

main69310-90300iBJ4#,FJ4#,HJ45197509-198007

main69310-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69310-90300iBJ40,FJ40,45,HJ45..PIC,V197501-197509

FOR STEEL DOOR

main69310-90352iFJ55196903-197508

main69310-90353iFJ55197508-198007

69320LOCK ASSY, FRONT DOOR, LH

main69320-60031iBJ4#,FJ40,43,45,HJ45196903-197509

main69320-90300iBJ40,FJ40,45,HJ45..PIC,V197501-197509

FOR STEEL DOOR

main69320-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69320-90300iBJ4#,FJ4#,HJ45197509-198007

main69320-90352iFJ55196903-197508

main69320-90353iFJ55197508-198007

69405STOP SUB-ASSY, DOOR DOWN

main69405-90300iBJ4#,FJ4#,HJ45197207-197509

main69405-95010iFJ40,43,45,HJ45196903-197207

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main67451-60020iFJ40,43,45,HJ45196903-197207

main67451-90301iBJ4#,FJ4#,HJ45197207-197509

main69410-20031iFJ55196903-197001

RH.

main69410-20032iFJ55197001-197811

RH.

main69410-90300iBJ4#,FJ4#,HJ45197501-198007

main69410-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69410-90351iFJ55197811-198007

RH.

main69420-20031iFJ55196903-197001

LH.

main69420-20032iFJ55197001-197811

LH.

main69420-90351iFJ55197811-198007

LH.

9015980099

main90159-80099

9020112191

main90201-12191

9020112192

main90201-12192

9020212086

main90202-12086

9333016012

main93330-16012

9411040600

main94110-40600

9412040600

main94120-40600

9451100600

main94511-00600

9461210600

main94612-10600

9461310600

main94613-10600

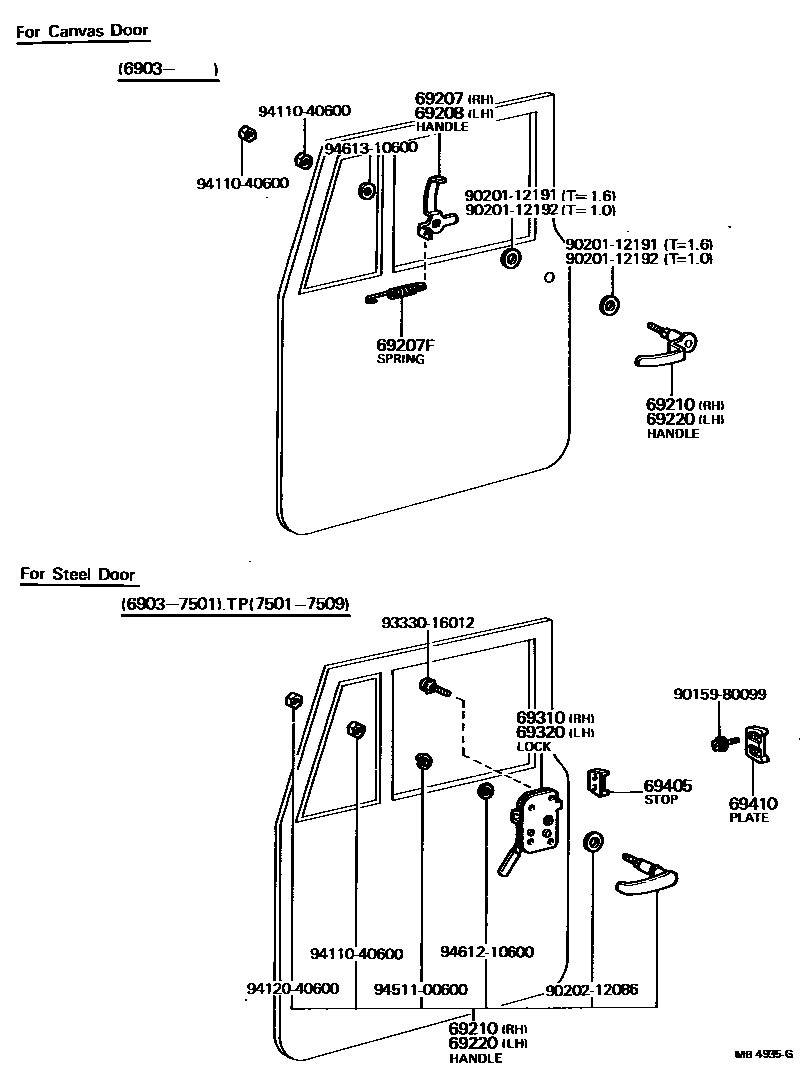

19 parts on this diagram · 3 diagrams in section
