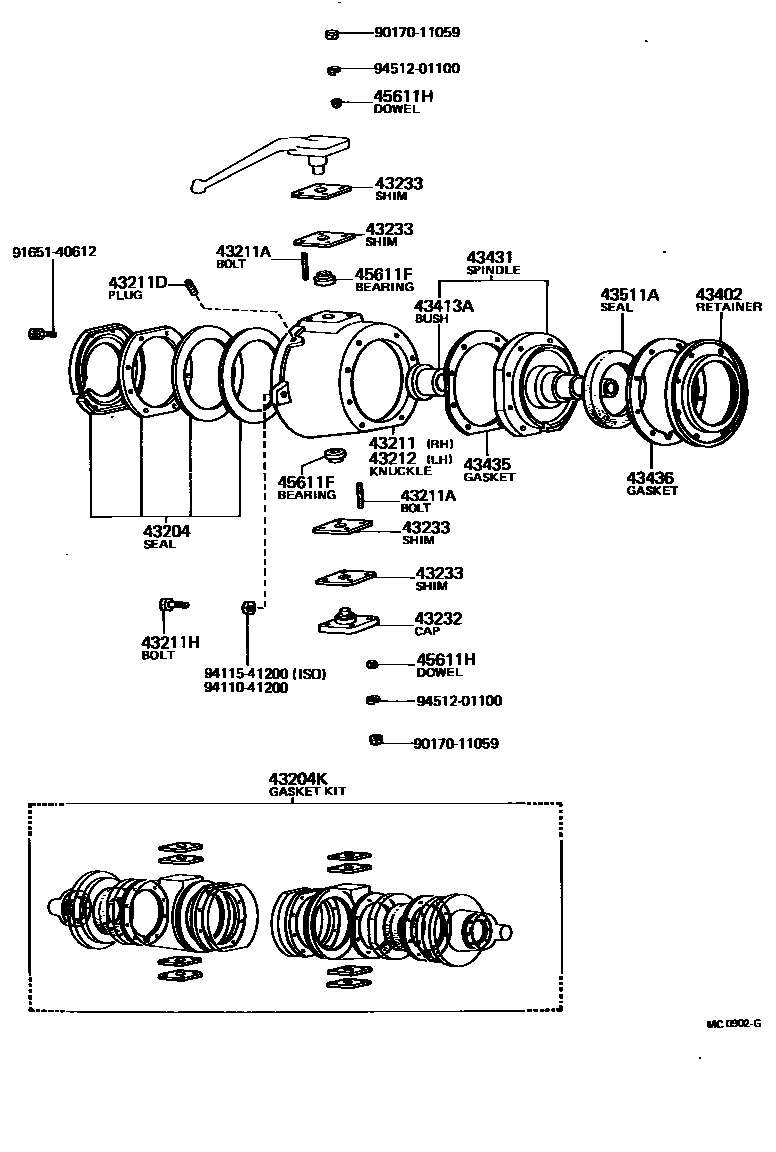

FRONT AXLE ARM & STEERING KNUCKLE
43204SEAL SUB-ASSY, STEERING KNUCKLE OIL
43204KGASKET KIT, FRONT AXLE OVERHAUL
43211KNUCKLE, STEERING, RH
ISO
FOR DRUM BRAKE
FOR DISC BRAKE
43211ABOLT, STUD (FOR STEERING SET)
43211DPLUG (FOR STEERING KNUCKLE)
ISO
43211HBOLT, ROUND HEXAGON
ISO
ISO
43212KNUCKLE, STEERING, LH
ISO
FOR DRUM BRAKE
FOR DISC BRAKE
43232CAP, STEERING KNUCKLE BEARING
43233SHIM, STEERING KNUCKLE ADJUST, NO.1
T=0.2
T=0.20,T=0.2
T=1.0
T=0.5
T=0.50,T=0.5
T=1.0,T=1.0
T=0.1,T=0.1
43402RETAINER SUB-ASSY, STEERING KNUCKLE SPINDLE OIL
43413ABUSH, SOLID (FOR DRIVE SHAFT)
43431SPINDLE, STEERING KNUCKLE
43435GASKET, KNUCKLE SPINDLE
43436GASKET, KNUCKLE SPINDLE OIL RETAINER
43511ASEAL, DUST (FOR FRONT AXLE HUB)
45611FBEARING(FOR STEERING KNUCKLE ARM)
45611HDOWEL, SPLIT(FOR STEERING KNUCKLE ARM)
9017011059
main90170-11059
9165140612
main91651-40612
9411041200
main94110-41200
9411541200
main94115-41200
9451201100
main94512-01100
22 parts on this diagram · 2 diagrams in section
