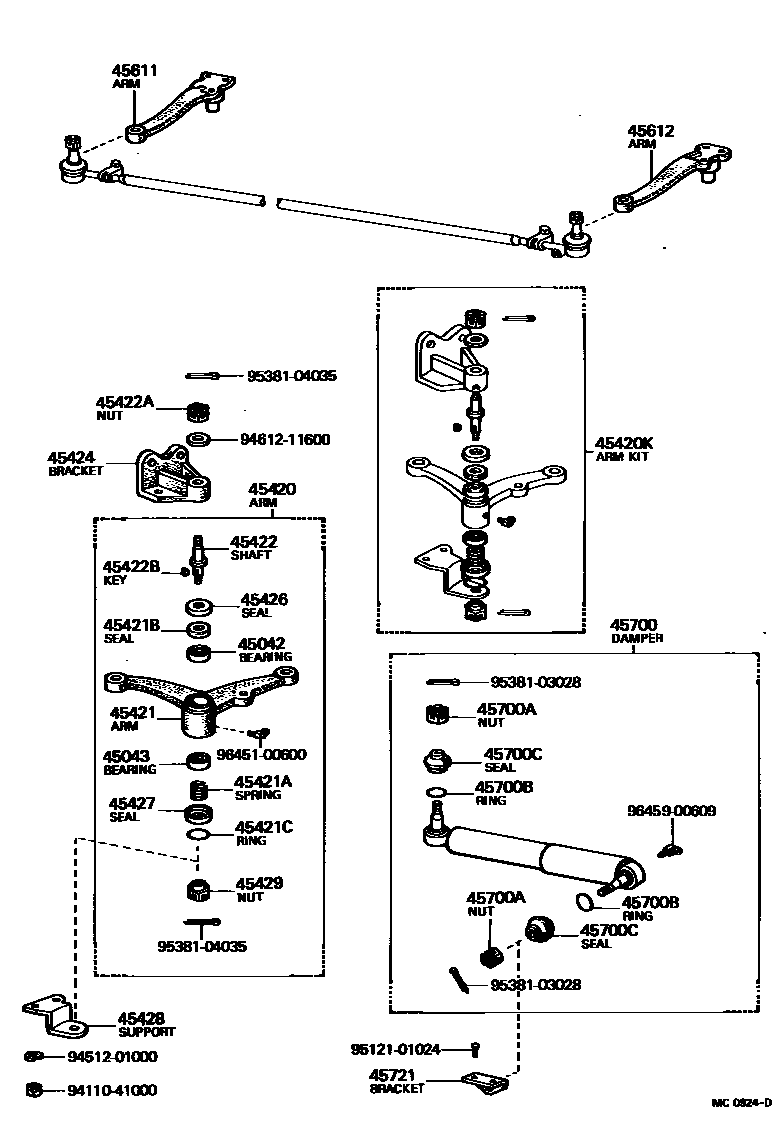

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0005 1

45042BEARING SUB-ASSY, CENTER ARM, UPPER

main45042-60011iFJ4#196903-196906

45043BEARING SUB-ASSY, CENTER ARM, LOWER

main45043-60011iFJ4#196903-196906

45420ARM ASSY, STEERING CENTER

main45420-60011iFJ40,43,45..RHD196903-196906

main45420-60020iFJ4#..LHD196903-196906

45420KARM KIT, STEERING CENTER

main04453-60011iFJ4#196903-196906

main04453-60020iBJ4#,FJ4#,55,HJ45196906-198007

45421ARM, STEERING CENTER

main45421-60010iFJ40,43,45..RHD196903-196906

main45421-60011iBJ4#,FJ40,43,45,HJ45..RHD196906-198007

main45421-60020iFJ4#..LHD196903-196906

main45421-60021iBJ4#,FJ4#,HJ45..LHD196906-198007

main45421-60031iFJ55..RHD196903-198007

main45421-60041iFJ55..LHD196903-198007

45421ASPRING, COMPRESSION(FOR STEERING CENTER ARM)

main90501-45123iBJ4#,FJ4#,55,HJ45196903-198007

45421BSEAL, DUST(FOR STEERING CENTER ARM)

main90303-24033iFJ55196903-196906

main90303-30025iFJ4#196903-196906

45421CRING, O (FOR STEERING CENTER ARM)

main90301-40088iFJ4#196903-196906

45422SHAFT, CENTER ARM

main45422-60010iFJ4#196903-196906

main45422-60020iBJ4#,FJ4#,55,HJ45196906-198007

45422ANUT, CASTLE(FOR CENTER ARM SHAFT)

main90171-16014iFJ4#196903-196906

45422BKEY, WOODRUFF(FOR CENTER ARM SHAFT)

main90280-05006×2iFJ4#196903-196906

45424BRACKET, CENTER ARM

main45424-60010iFJ40,43,45..RHD196903-196906

main45424-60020iFJ4#..LHD196903-196906

main45424-60030iFJ55..RHD196903-196906

main45424-60040iFJ55..LHD196903-196906

45426SEAL, CENTER ARM DUST, UPPER

main45426-60010iFJ4#196903-196906

45427SEAL, CENTER ARM DUST, LOWER

main45427-60010iFJ4#196903-196906

main45427-60020iFJ55196903-196906

45428SUPPORT, CENTER ARM SHAFT

main45428-60010iFJ40,43,45..RHD196903-196906

main45428-60020iFJ4#..LHD196903-196906

45429NUT, CENTER ARM SHAFT

main45429-60011iFJ4#196903-196906

main45429-60020iFJ55196903-196906

45611ARM, STEERING KNUCKLE, RH

main45611-60020iBJ4#,FJ4#,55,HJ45196903-197901

main45611-60021iBJ4#,FJ4#,55,HJ45197901-198007

45612ARM, STEERING KNUCKLE, LH

main45612-60020iBJ4#,FJ4#,55,HJ45196903-197901

main45612-60021iBJ4#,FJ4#,55,HJ45197901-198007

45700DAMPER ASSY, STEERING

main45700-60010iFJ4#,55196903-197112

main45700-60011iFJ4#,55,HJ45197112-197312

main45700-60012iBJ4#,FJ4#,55,HJ45197312-197709

main45700-60013iBJ4#,FJ4#,55,HJ45197709-198007

45700ANUT(FOR STEERING DAMPER)

main90171-12005×2iFJ4#,55196903-196908

main90171-12028×2iBJ4#,FJ4#,55,HJ45196908-198007

ISO

45700BRING, SET(FOR STEERING DAMPER DUST SEAL)

main90522-32011×2iBJ4#,FJ4#,55,HJ45196903-198007

45700CSEAL, DUST(FOR STEERING DAMPER)

main45479-30030×2iBJ4#,FJ4#,55,HJ45196903-198007

45721BRACKET, STEERING DAMPER

main45721-60010iBJ4#,FJ4#,HJ45196903-198007

main45721-60020iFJ55196903-198007

9411041000

main94110-41000

9451201000

main94512-01000

9461211600

main94612-11600

9512101024

main95121-01024

9538103028

main95381-03028

9538104035

main95381-04035

9645100600

main96451-00600

9645900609

main96459-00609

31 parts on this diagram · 4 diagrams in section
