TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

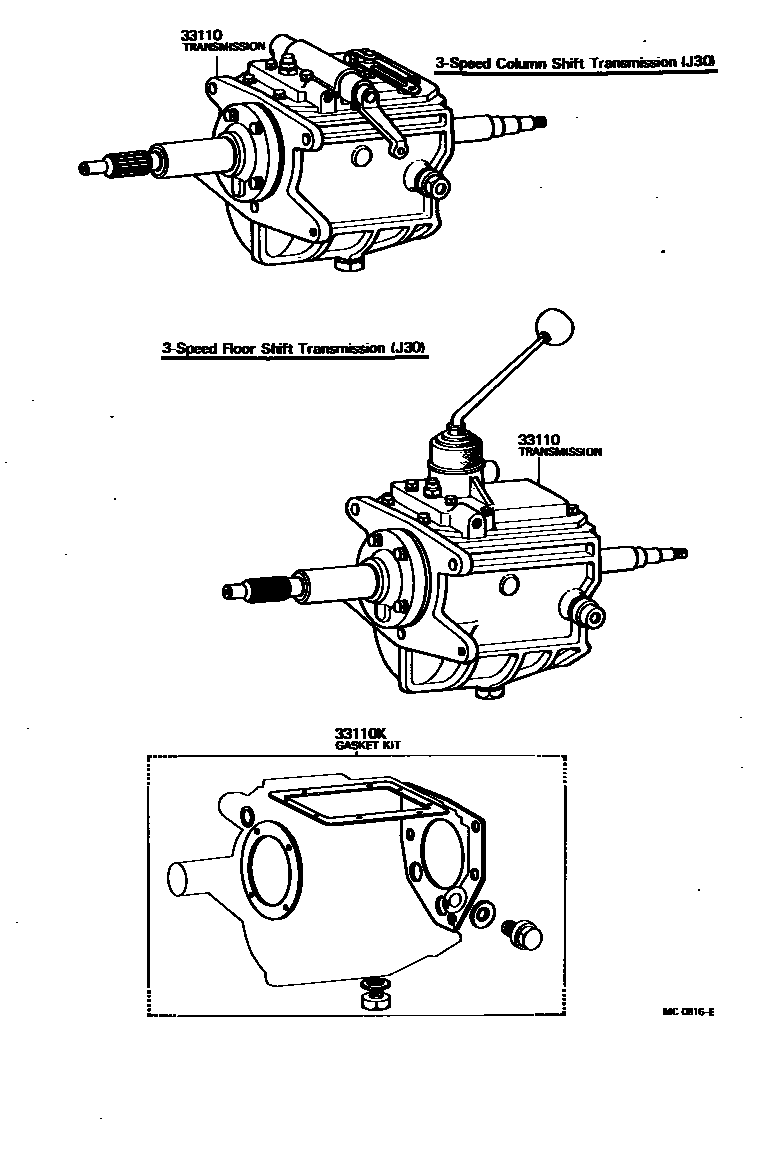

Parts diagram
33110TRANSMISSION ASSY, MANUAL
main33110-60020i196903-197209
3-SPEED COLUMN SHIFT T/M
main33110-60030i196903-197209
3-SPEED COLUMN SHIFT T/M
main33110-60050i196903-197209
3-SPEED COLUMN SHIFT T/M
main33110-60060i196903-197209
3-SPEED COLUMN SHIFT T/M
main33120-60020i196903-197209
3-SPEED FLOOR SHIFT T/M
main33120-60021i197501-197709
main33120-60030i196903-197209
3-SPEED FLOOR SHIFT T/M
main33120-60040i196903-197110
4-SPEED TRANSMISSION
main33120-60041i197110-197209
4-SPEED TRANSMISSION
main33120-60042i197209-197309
4-SPEED TRANSMISSION
main33120-60043i197309-197501
4-SPEED TRANSMISSION
main33120-60050i197204-197209
4-SPEED TRANSMISSION
main33120-60051i197209-197309
4-SPEED TRANSMISSION
main33120-60052i197501-197709
main33120-60060i197209-197501
3-SPEED TRANSMISSION
main33120-60070i197209-197309
4-SPEED TRANSMISSION
main33120-60071i197309-197501
4-SPEED TRANSMISSION
main33120-60080i197209-197309
4-SPEED TRANSMISSION
main33120-60081i197309-197501
4-SPEED TRANSMISSION
main33120-60090i197209-197501
3-SPEED TRANSMISSION
main33120-60100i197209-197501
3-SPEED TRANSMISSION
main33120-60110i197209-197309
4-SPEED TRANSMISSION
main33120-60111i197309-197501
4-SPEED TRANSMISSION
main33120-60120i197209-197309
4-SPEED TRANSMISSION
main33120-60121i197501-197709
main33120-60150i197501-197704
main33120-60151i197704-197709
main33120-60160i197501-197704
main33120-60161i197704-197709
main33120-60240i197608-197709
FOR NEW SOUTH WALES
main33120-60902i197709-198007
main33120-60905i197709-197803
FOR NEW SOUTH WALES
main33120-60906i197709-198007
main33120-60907i197709-198007
33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL
main04331-60020i197501-198007
main04331-60030i197110-197209
FOR 4-SPEED TRANSMISSION
main04331-60031i197501-197604
main04331-60032i197604-198007

2 parts on this diagram · 4 diagrams in section
