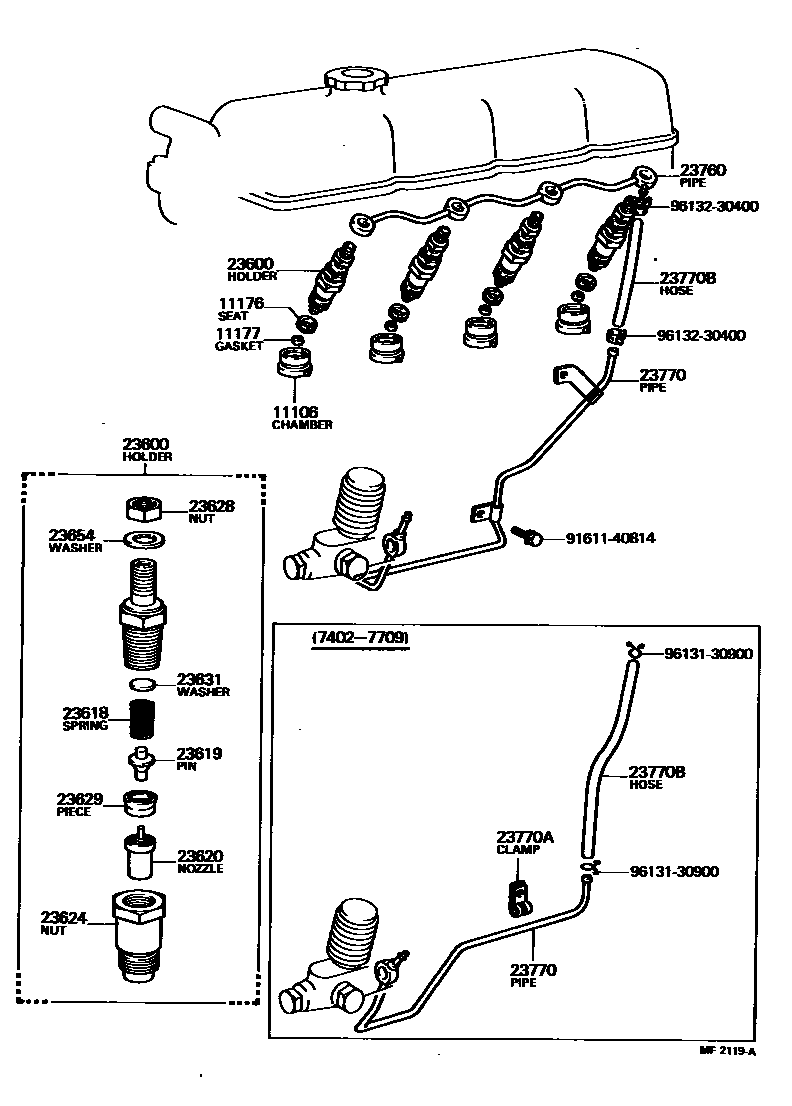

INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23624NUT, NOZZLE RETAINING
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
23770BHOSE, FUEL
9161140814
main91611-40814
9613130900
main96131-30900
9613230400
main96132-30400
19 parts on this diagram · 3 diagrams in section
