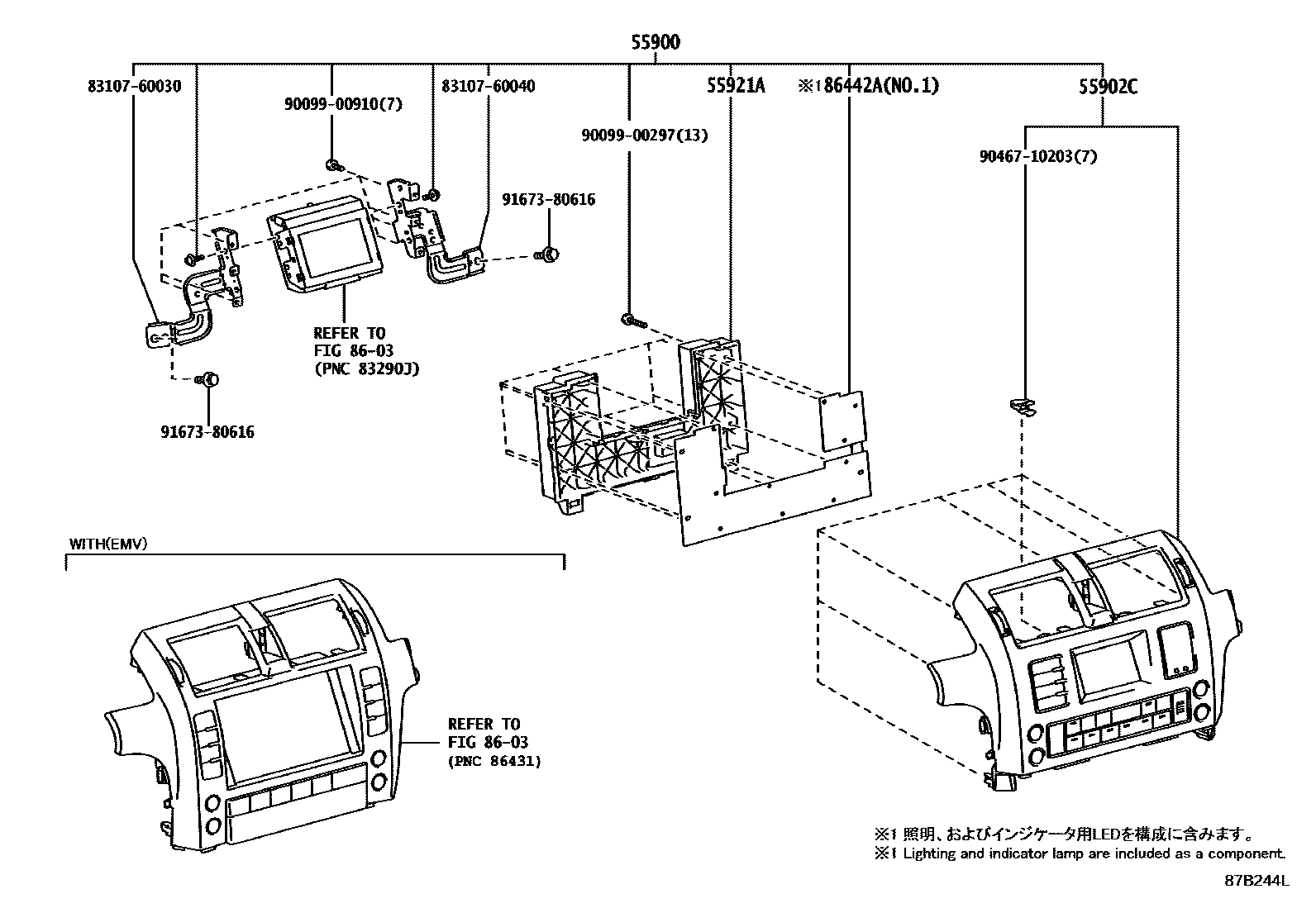

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55900CONTROL ASSY, AIR CONDITIONER
2 SEAT PACKAGE; 2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
2 SEAT PACKAGE; 2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
2 SEAT PACKAGE
55902CPANEL SUB-ASSY, AIR CONDITIONER
2 SEAT PACKAGE; 2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
2 SEAT PACKAGE; 2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
8603NAVIGATION & FRONT MONITOR DISPLAY
86442ABOARD, HEATER CONTROL SWITCH
NO.1
2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1; 2 SEAT PACKAGE,NO.1
2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1; 2 SEAT PACKAGE,NO.1
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2; 2 SEAT PACKAGE,NO.2
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),NO.2
8310760030BRACKET SUB-ASSY, METER
main83107-60030
8310760040BRACKET SUB-ASSY, METER
main83107-60040
9009900297
main90099-00297
9009900910
main90099-00910
9046710203
main90467-10203
9167380616
main91673-80616
11 parts on this diagram · 8 diagrams in section
