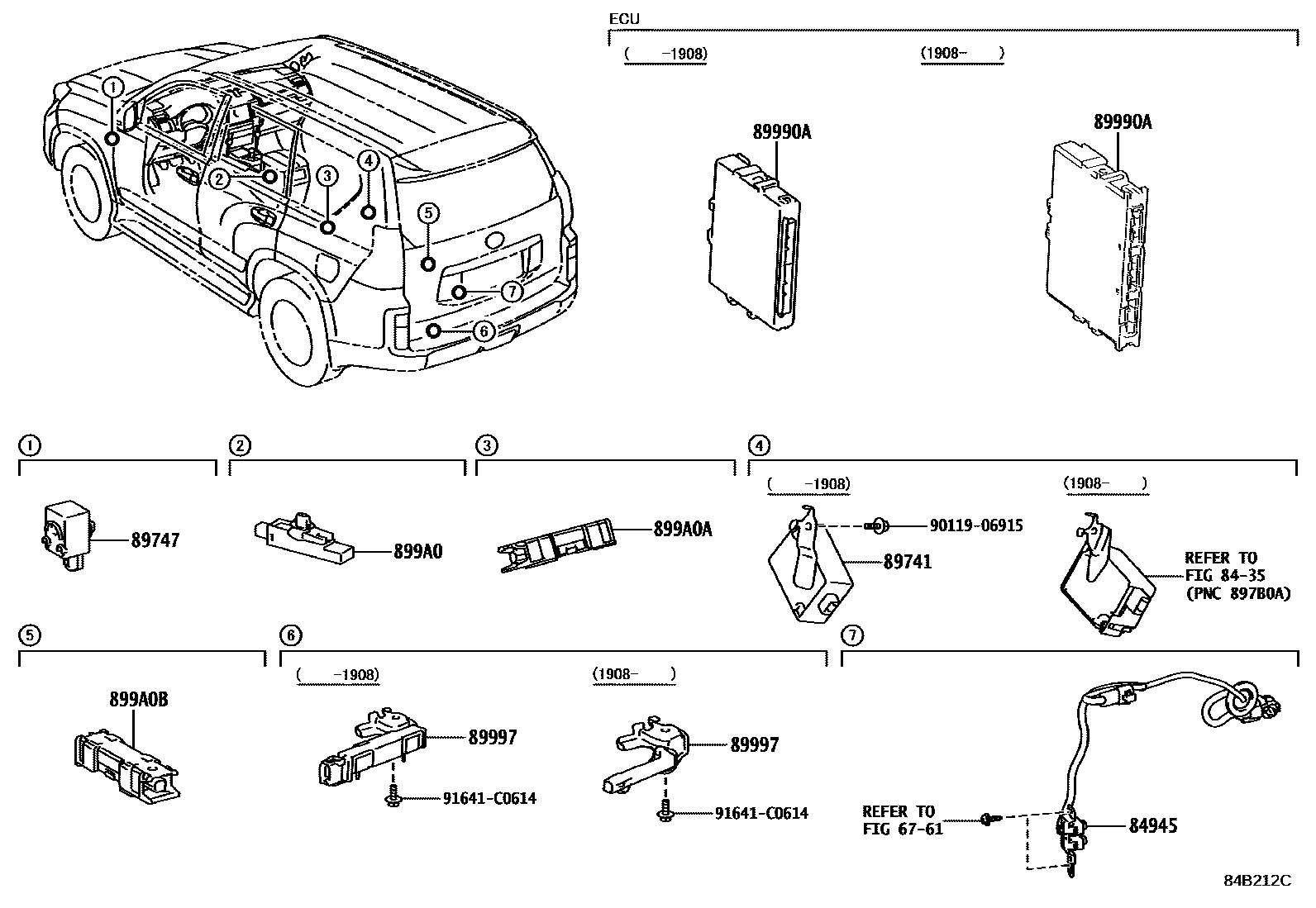

WIRELESS DOOR LOCK

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84905-60010iURJ150200911-201308

89741RECEIVER, DOOR CONTROL

main89740-60070iURJ150200911-201008

main89740-60071iURJ150201009-201103

main89740-60072iURJ150201104-201308

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURJ150200911-201308

89990ACOMPUTER ASSY, SMART KEY

main89990-60210iURJ150200911-201101

main89990-60211iURJ150201102-201108

main89990-60212iURJ150201108-201206

main89990-60213iURJ150201206-201308

main89990-60214iURJ150201501-201507

P/N LABEL=8999060214

main89990-60215iURJ150201508-201608

main89990-60400iURJ150201608-201612

main89990-60401iURJ150201701-201908

main89990-60730iURJ150201908-202202

main89990-60731iURJ150202203

89997ANTENNA, ELECTRICAL KEY

main89997-60060iURJ150200911-201308

main89997-60110iURJ150201908

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iURJ150200911-201308

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iURJ150200911-201308

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60020iURJ150200911-201308

9011906915

main90119-06915

91641C0614

main91641-C0614

12 parts on this diagram · 1 diagram in section
