SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOB R/B(EXCEPT EURO5)0007 1ENGINE ROOB R/B(EXCEPT EURO5)0008 1ENGINE ROOB RELAY BLOCK(EURO50009 1ENGINE ROOM RELAY BLOCK(EURO50010 1COWL 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 1/2 0017 1INSTRUMENT PANEL 2/2 0018 1STEERING 0019 1STEERING 0020 1SEAT 0021 1DOOR & ROOF 0022 1FLOOR & BACK DOOR

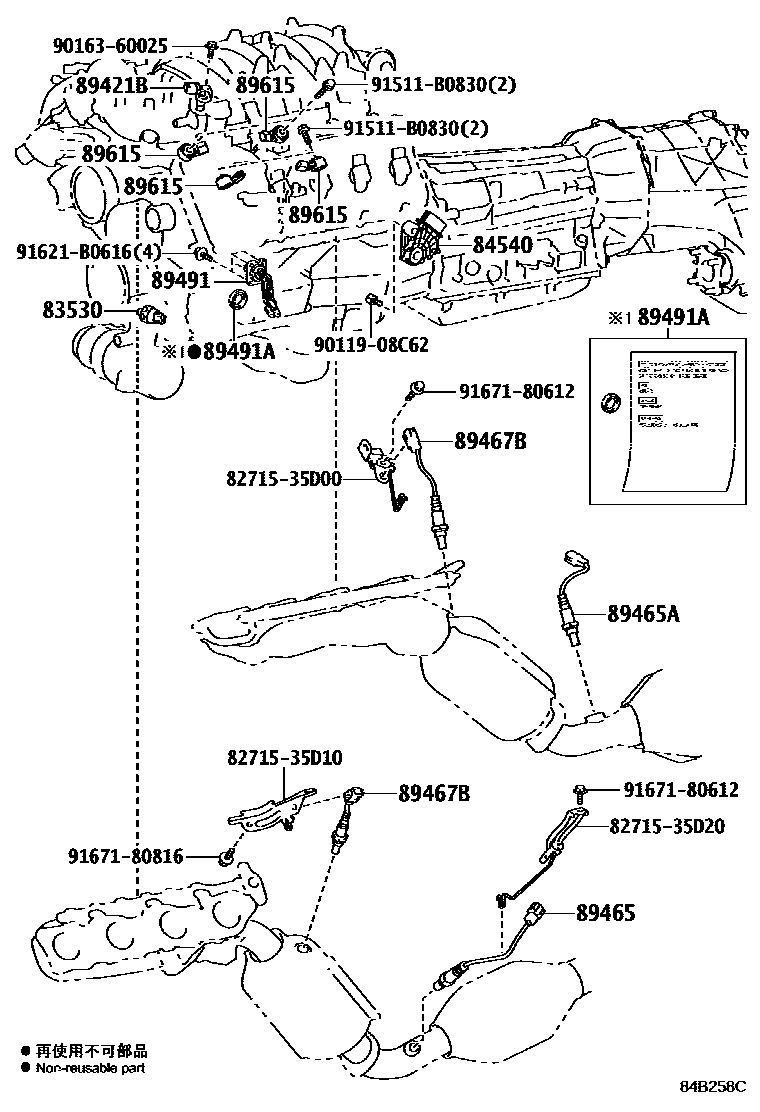

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURJ150200911-201104

main83530-60020iURJ150201908

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-35060iURJ150200911-201308

main84540-35061iURJ150202008

main84540-60050iURJ150201308-201610

89421BSENSOR, VACUUM

main89421-47010iURJ150201009-201308

main89421-52010iURJ150200911-201009

89465SENSOR, OXYGEN

main89465-35720supersedes 89465-60460iURJ150201308-201508

89465ASENSOR, OXYGEN NO.2

main89465-36040supersedes 89465-34160iURJ150201308-201508

89467BSENSOR, AIR FUEL RATIO

main89467-35110×2supersedes 89467-60140iURJ150201308-201508

89491SENSOR, ENGINE OIL LEVEL

main89491-60170iURJ150201908

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iURJ150201908

89615SENSOR, KNOCK CONTROL

main89615-20090×4iURJ150200911-201308

8271535D00BRACKET,WIRING HARNESS CLAMP

main82715-35D00

8271535D10BRACKET,WIRING HARNESS CLAMP

main82715-35D10

8271535D20BRACKET,WIRING HARNESS CLAMP

main82715-35D20

9011908C62

main90119-08C62

9016360025

main90163-60025

91511B0830

main91511-B0830

91621B0616

main91621-B0616

9167180612

main91671-80612

9167180816

main91671-80816

18 parts on this diagram · 22 diagrams in section
