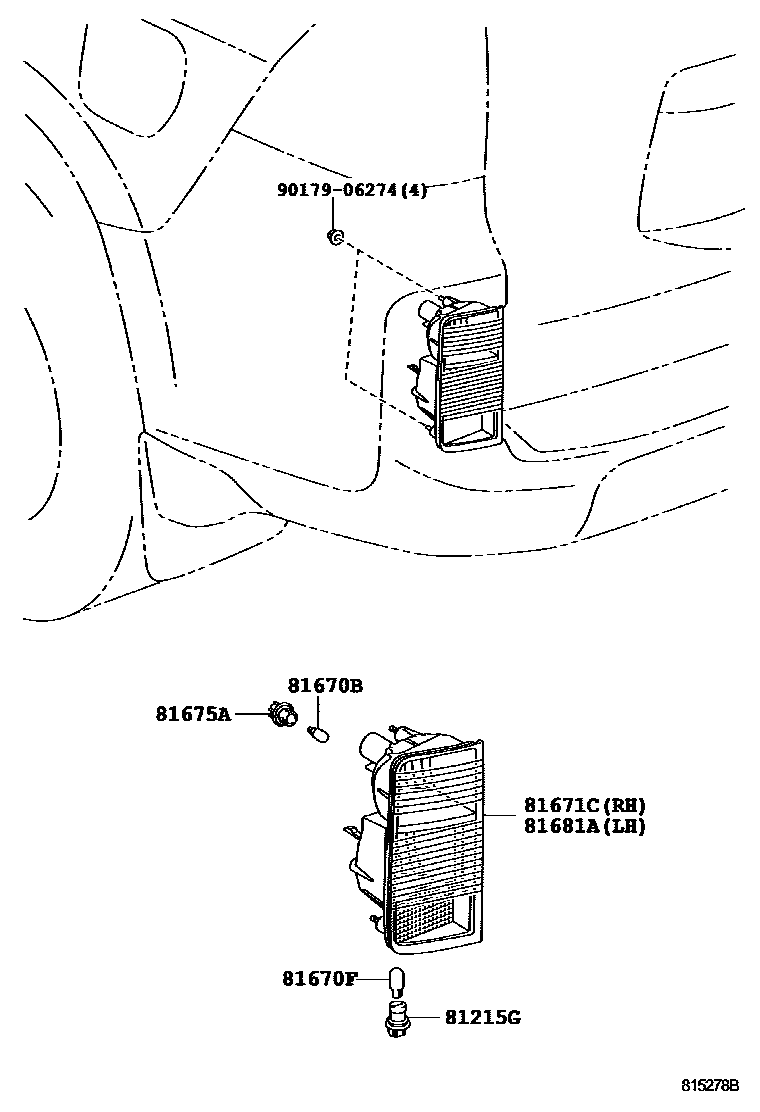

BACK UP LAMP

0001 1 0002 1

81215GSOCKET,REAR FOG LAMP

main81585-60240×2iURJ150200911-201308

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2iURJ150200911-201308

12V 16W

81670FBULB(FOR REAR FOG LAMP)

main90981-13043×2iURJ150200911-201308

12V 21W

81671CLENS & BODY, BACK-UP LAMP, RH

main81671-60130iURJ150200911-201308

main81671-60170iURJ150201308-201908

81675APLUG, SOCKET(FOR BACK-UP LAMP)

main81675-60120×2iURJ150200911-201308

81681ALENS & BODY, BACK-UP LAMP, LH

main81681-60090iURJ150200911-201308

main81681-60130iURJ150201308-201908

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
