EPC Data

SEAT & SEAT TRACK

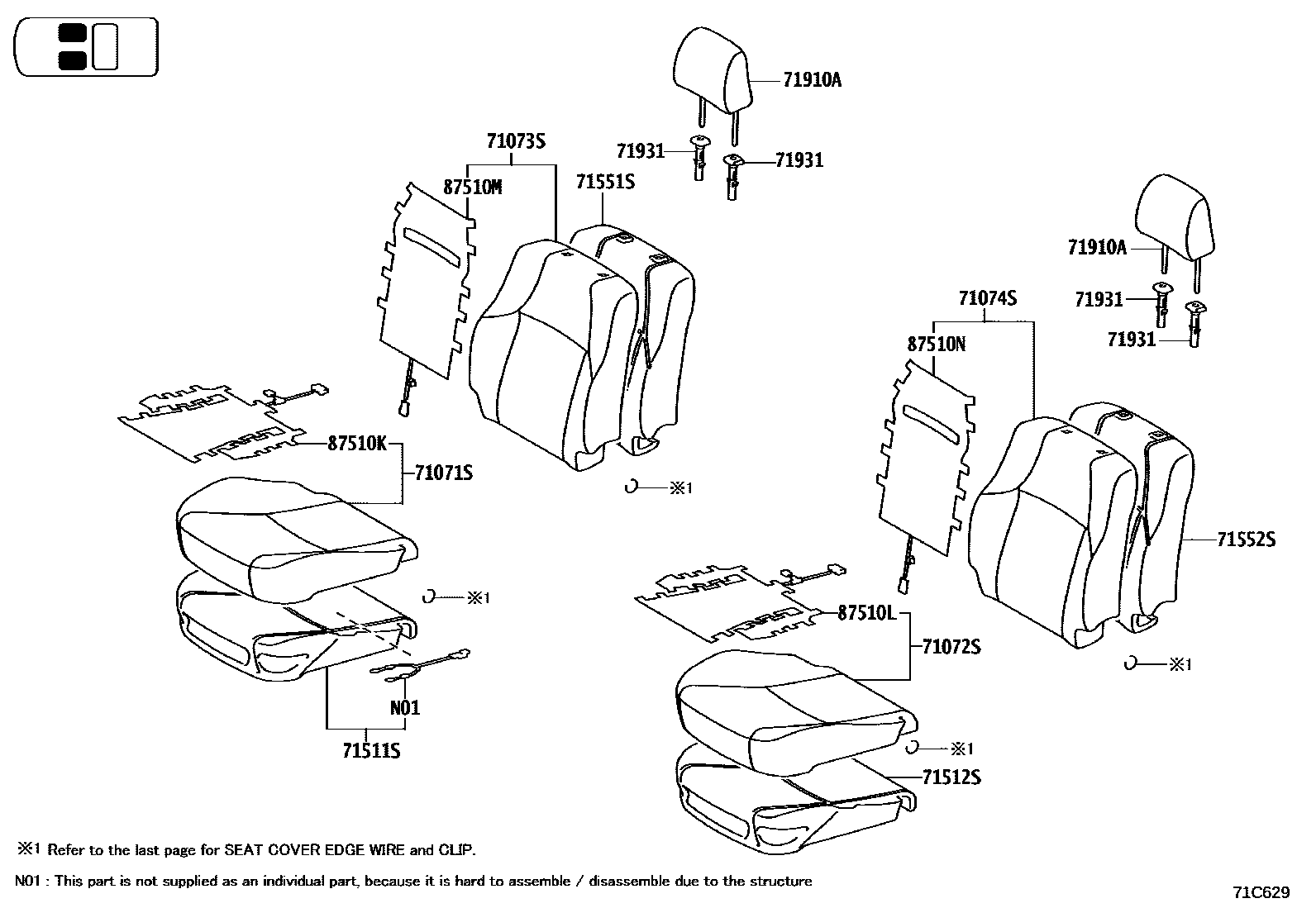

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60E20-A1supersedes 71071-60G73-A3i200911-201209
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main71071-60E20-C1supersedes 71071-60G73-C3i200911-201209
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main71071-60E20-E1supersedes 71071-60D91-E2i200911-201209
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main71071-60E21-A1supersedes 71071-60G73-A3i201210-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71071-60E22
main71071-60E21-C1supersedes 71071-60G73-C3i201210-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71071-60E22
main71071-60E21-E1supersedes 71071-60D91-E2i201210-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71071-60E22
main71071-60J00-A1supersedes 71071-60G73-A3i201308-201611
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J00-C1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71071-60J01-A1supersedes 71071-60G73-A3i201612-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J01-C1supersedes 71071-60G73-C3i201612-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J02-A2supersedes 71071-60G73-A2i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J02-A3supersedes 71071-60G73-A3i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J02-C2supersedes 71071-60G73-C2i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J02-C3supersedes 71071-60G73-C3i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J50-A1supersedes 71071-60G73-A3i201308-201411
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60J50-C1i201308-201411
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71071-60J50-E2supersedes 71071-60D91-E2i201308-201411
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71071-60J50-E3i201308-201411
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71071-60J51-A1supersedes 71071-60G73-A3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60J51-C1i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60J51-E2supersedes 71071-60D91-E2i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60J51-E3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71071-60J52-A1supersedes 71071-60G73-A3i201612-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60J52-C1i201612-201807
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71071-60J52-E2supersedes 71071-60D91-E2i201612-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60J52-E3i201612-201807
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71071-60Q10-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71071-60Q10-A1i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60Q10-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71071-60Q10-C1i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60Q10-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71071-60Q10-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71071-60Q10-E2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60Q10-E3i201808-201812
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71071-60R10-A0supersedes 71071-60J12-A1i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60R10-A1supersedes 71071-60J12-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
main71071-60R10-C0supersedes 71071-60J12-C4i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60R10-C1supersedes 71071-60J12-C5i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71071-60R10-D0supersedes 71071-60J12-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71071-60R10-D1supersedes 71071-60J12-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71071-60R10-E0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60R10-E1i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71071-60R10-E2supersedes 71071-60J12-E5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60R10-E3supersedes 71071-60J12-E6i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-60D50-A1supersedes 71072-60G13-A3i200911-201209
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main71072-60D50-C1supersedes 71072-60G13-C5i200911-201209
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main71072-60D50-E1supersedes 71072-60D31-E3i200911-201209
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main71072-60D51-A1supersedes 71072-60G13-A3i201210-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71072-60D52
main71072-60D51-C1supersedes 71072-60G13-C5i201210-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71072-60D52
main71072-60D51-E1supersedes 71072-60D31-E3i201210-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71072-60D52
main71072-60G30-A1supersedes 71072-60G13-A3i201308-201611
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G30-C1supersedes 71072-60G13-C5i201308-201611
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G31-A1supersedes 71072-60G13-A3i201612-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G31-C1supersedes 71072-60G13-C5i201612-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G32-A2supersedes 71072-60G13-A2i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G32-A3supersedes 71072-60G13-A3i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G32-C2supersedes 71072-60G13-C4i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G32-C3supersedes 71072-60G13-C5i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G40-A1supersedes 71072-60G13-A3i201308-201411
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60G40-C1i201308-201411
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71072-60G40-E2supersedes 71072-60D31-E3i201308-201411
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71072-60G40-E3i201308-201411
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71072-60G41-A1supersedes 71072-60G13-A3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60G41-C1i201412-201611
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71072-60G41-E2supersedes 71072-60D31-E3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60G41-E3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71072-60G42-A1supersedes 71072-60G13-A3i201612-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60G42-C1i201612-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71072-60G42-E2supersedes 71072-60D31-E3i201612-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60G42-E3i201612-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71072-60N80-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71072-60N80-A1i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60N80-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71072-60N80-C1i201808-201812
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71072-60N80-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71072-60N80-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71072-60N80-E2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60N80-E3i201808-201812
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71072-60P80-A0supersedes 71072-60G22-A1i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60P80-A1supersedes 71072-60G22-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
main71072-60P80-C0supersedes 71072-60G22-C4i201812-201908
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71072-60P80-C1supersedes 71072-60G22-C7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71072-60P80-D0supersedes 71072-60G22-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71072-60P80-D1supersedes 71072-60G22-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71072-60P80-E0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60P80-E1i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71072-60P80-E2supersedes 71072-60G22-E5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60P80-E3supersedes 71072-60G22-E6i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-60C00-A3supersedes 71073-60C10-A6i200911-201201
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C01
main71073-60C00-A4supersedes 71073-60C10-A6i201201-201308
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C01
main71073-60C00-C2supersedes 71073-60C10-C5i200911-201201
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C01
main71073-60C00-C3supersedes 71073-60C10-C5i201201-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C01
main71073-60C00-E2supersedes 71073-60C10-E5i200911-201201
REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C01
main71073-60C00-E3supersedes 71073-60C10-E5i201201-201308
REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C01
main71073-60C20-A1supersedes 71073-60C10-A6i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C21
main71073-60C20-A2supersedes 71073-60C10-A6i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C21
main71073-60C20-C1supersedes 71073-60C10-C5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C21
main71073-60C20-C2supersedes 71073-60C10-C5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C21
main71073-60C20-E1supersedes 71073-60C10-E5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C21
main71073-60C20-E2supersedes 71073-60C10-E5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C21
main71073-60C30-A1supersedes 71073-60C10-A6i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
sub71073-60C31
main71073-60C30-A2supersedes 71073-60C10-A6i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
sub71073-60C31
main71073-60C30-C1supersedes 71073-60C10-C5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM2#
sub71073-60C31
main71073-60C30-C2supersedes 71073-60C10-C5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM2#
sub71073-60C31
main71073-60C30-E1supersedes 71073-60C10-E5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71073-60C31
main71073-60C30-E2supersedes 71073-60C10-E5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71073-60C31
main71073-60E60-A1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E60-C1supersedes 71073-60C10-C5i201308-201807
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60E61-A3supersedes 71073-60B71-A3i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E61-A4supersedes 71073-60C10-A6i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E61-C3supersedes 71073-60B71-C5i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60E61-C4supersedes 71073-60C10-C5i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60E70-A1i201308-201608
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),E
main71073-60E70-C1i201308-201608
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71073-60E70-E2supersedes 71073-60C10-E5i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71073-60E70-E3i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71073-60E80-A1supersedes 71073-60C10-A6i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71073-60E80-C1i201308-201807
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71073-60E80-E2supersedes 71073-60C10-E5i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60E80-E3i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71073-60E90-A1supersedes 71073-60C10-A6i201308-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60E90-C1supersedes 71073-60C10-C5i201308-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60E91-A3supersedes 71073-60B71-A3i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60E91-A4supersedes 71073-60C10-A6i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60E91-C3supersedes 71073-60B71-C5i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60E91-C4supersedes 71073-60C10-C5i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60F10-A1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60F10-C1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60F90-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71073-60F90-A2supersedes 71073-60B71-A3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60F90-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71073-60F90-C2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71073-60F90-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71073-60F90-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71073-60F90-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71073-60F90-E6i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71073-60G00-A2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71073-60G00-C2i201808-201812
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71073-60G00-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60G00-E6i201808-201812
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71073-60N10-A0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71073-60N10-A1supersedes 71073-60F01-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
main71073-60N10-C0i201812-201908
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71073-60N10-C1supersedes 71073-60F01-C8i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71073-60N10-D0supersedes 71073-60F01-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71073-60N10-D1supersedes 71073-60F01-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71073-60N10-E0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60N10-E1i201812-201908
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71073-60N10-E2supersedes 71073-60F01-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
main71073-60N10-E3supersedes 71073-60F01-E7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
main71073-60N20-A0supersedes 71073-60C10-A6i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60N20-C0supersedes 71073-60F01-C5i201812-201908
UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACK
main71073-60N20-D0supersedes 71073-60F01-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71073-60N20-E0supersedes 71073-60C10-E5i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71073-60N20-E1i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71073-60N20-E2supersedes 71073-60F01-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-60C10-A3supersedes 71074-60C20-A6i200911-201201
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C11
main71074-60C10-A4supersedes 71074-60C20-A6i201201-201308
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C11
main71074-60C10-C2supersedes 71074-60C20-C5i200911-201201
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C11
main71074-60C10-C3supersedes 71074-60C20-C5i201201-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C11
main71074-60C10-E2supersedes 71074-60C20-E5i200911-201201
REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C11
main71074-60C10-E3supersedes 71074-60C20-E5i201201-201308
REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C11
main71074-60C30-A1supersedes 71074-60C20-A6i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C31
main71074-60C30-A2supersedes 71074-60C20-A6i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C31
main71074-60C30-C1supersedes 71074-60C20-C5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C31
main71074-60C30-C2supersedes 71074-60C20-C5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C31
main71074-60C30-E1supersedes 71074-60C20-E5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C31
main71074-60C30-E2supersedes 71074-60C20-E5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C31
main71074-60C40-A1supersedes 71074-60C20-A6i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
sub71074-60C41
main71074-60C40-A2supersedes 71074-60C20-A6i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
sub71074-60C41
main71074-60C40-C1supersedes 71074-60C20-C5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM2#
sub71074-60C41
main71074-60C40-C2supersedes 71074-60C20-C5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM2#
sub71074-60C41
main71074-60C40-E1supersedes 71074-60C20-E5i200911-201201
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71074-60C41
main71074-60C40-E2supersedes 71074-60C20-E5i201201-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71074-60C41
main71074-60E70-A1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E70-C1supersedes 71074-60C20-C5i201308-201807
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60E71-A3supersedes 71074-60A61-A3i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E71-A4supersedes 71074-60C20-A6i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E71-C3supersedes 71074-60A61-C5i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60E71-C4supersedes 71074-60C20-C5i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60E80-A1i201308-201608
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),E
main71074-60E80-C1i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71074-60E80-E2i201608-201805
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60E80-E3i201608-201805
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60E90-A1supersedes 71074-60C20-A6i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71074-60E90-C1i201308-201807
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71074-60E90-E2supersedes 71074-60C20-E5i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60E90-E3i201308-201807
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71074-60F00-A1supersedes 71074-60C20-A6i201308-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60F00-C1supersedes 71074-60C20-C5i201308-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60F01-A3supersedes 71074-60A61-A3i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60F01-A4supersedes 71074-60C20-A6i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60F01-C3supersedes 71074-60A61-C5i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60F01-C4supersedes 71074-60C20-C5i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60F20-A1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60F20-C1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60G20-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60G20-A2supersedes 71074-60A61-A3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60G20-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60G20-C2i201808-201812
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60G20-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60G20-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)&M
main71074-60G20-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71074-60G20-E6i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71074-60J00-A2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71074-60J00-C2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71074-60J00-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60J00-E6i201808-201812
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71074-60N20-A0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71074-60N20-A1supersedes 71074-60F11-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
main71074-60N20-C0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71074-60N20-C1supersedes 71074-60F11-C8i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71074-60N20-D0supersedes 71074-60F11-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71074-60N20-D1supersedes 71074-60F11-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71074-60N20-E0i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60N20-E1i201812-201908
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SADDLE TAN,TRIM21
main71074-60N20-E2supersedes 71074-60F11-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
main71074-60N20-E3supersedes 71074-60F11-E7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
main71074-60N30-A0supersedes 71074-60F11-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60N30-C0supersedes 71074-60F11-C5i201812-201908
UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACK
main71074-60N30-D0supersedes 71074-60F11-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71074-60N30-E0supersedes 71074-60C20-E5i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71074-60N30-E1i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71074-60N30-E2supersedes 71074-60F11-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-60550i201908
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-60360i200911-201308
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-60130supersedes 71505-60220i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH
main71505-60210supersedes 71505-60220i201308-201608
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71506-60130supersedes 71506-60220i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH
main71506-60210supersedes 71506-60220i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
71910AHEADREST ASSY, FRONT SEAT
main71910-60780-A1×2supersedes 71910-60B21-A0i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main71910-60780-C1×2supersedes 71910-60810-C2i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main71910-60780-E1×2supersedes 71910-60B21-E3i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main71910-60790-A1×2supersedes 71910-60B21-A0i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,ECRU,TRIM0#
sub71910-60E30
main71910-60790-C1×2supersedes 71910-60810-C2i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM2#
sub71910-60E30
main71910-60790-E1×2supersedes 71910-60B21-E3i200911-201308
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
sub71910-60E30
main71910-60800-A1×2supersedes 71910-60B21-A0i200911-201308
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main71910-60800-C1×2supersedes 71910-60810-C2i200911-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main71910-60800-E1×2supersedes 71910-60B21-E3i200911-201308
REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main71910-60A90-A1×2i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60A90-C1×2supersedes 71910-60820-C2i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71910-60A91-A2×2supersedes 71910-60821-A2i201808-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60A91-C2×2supersedes 71910-60821-C4i201808-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71910-60B00-A1×2supersedes 71910-60B21-A0i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60B00-C1×2supersedes 71910-60B21-C3i201308-201412
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71910-60B00-E2×2supersedes 71910-60B21-D1i201308-201412
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71910-60B00-E3×2supersedes 71910-60B21-E3i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60B01-A2×2supersedes 71910-60821-A2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60B01-C2×2supersedes 71910-60B21-C3i201812-201908
UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACK
main71910-60B01-D1×2i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71910-60B01-E4×2supersedes 71910-60B21-D1i201812-201908
UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACK
main71910-60B01-E5×2supersedes 71910-60B21-E3i201812-201908
UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACK
main71910-60B01-E6×2i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60B10-A1×2supersedes 71910-60B21-A0i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71910-60B10-C1×2supersedes 71910-60B21-C3i201308-201412
2 SEAT PACKAGE&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71910-60B10-E2×2supersedes 71910-60B21-D1i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71910-60B10-E3×2supersedes 71910-60B21-E3i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71910-60B11-A2×2supersedes 71910-60821-A2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71910-60B11-C3×2supersedes 71910-60B21-C3i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,BLACK,TRIM20
main71910-60B11-D1×2supersedes 71910-60B21-D1i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,DK.ROSE,TRIM21
main71910-60B11-E5×2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71910-60B11-E6×2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71910-60B11-E7×2supersedes 71910-60B21-E3i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,SEPIA,TRIM4#
main71910-60D50-A0×2supersedes 71910-60820-A1i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60D50-C0×2supersedes 71910-60B21-C3i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71910-60D50-E0×2supersedes 71910-60B21-D1i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71910-60D50-E1×2supersedes 71910-60B21-E3i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60D60-A0×2supersedes 71910-60820-A1i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71910-60D60-C0×2i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71910-60D60-E0×2i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71910-60D60-E1×2i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A2×2i201308-201908
W(LOCK),ECRU,TRIM0#
main71930-47020-C0×2i201308-201710
W(LOCK),BLACK,TRIM2#
main71930-47020-C4×2i201908
W(LOCK),BLACK,TRIM2#
main71931-47020-A2×2i201308-201908
W/O(LOCK),ECRU,TRIM0#
main71931-47020-C0×2i200911-201308
W/O(LOCK),BLACK,TRIM2#
main71931-47020-C4×2i201710-201908
W/O(LOCK),BLACK,TRIM2#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-60520i201908
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-60520i201908

14 parts on this diagram · 20 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
