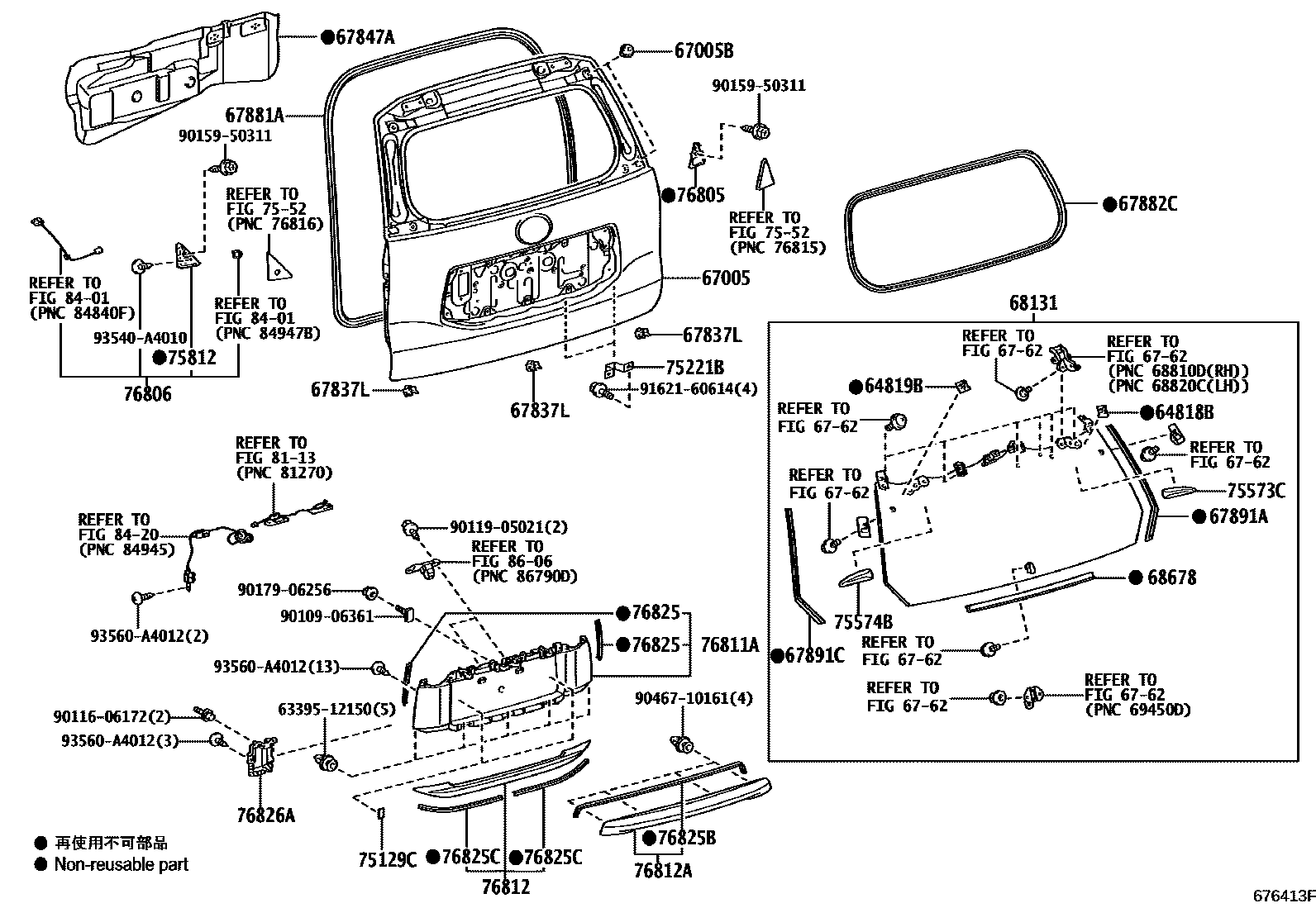

BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
6762
67837LSEAL, DOOR DUST PROOF
67847ACOVER, BACK DOOR SERVICE HOLE
67882CWEATHERSTRIP, BACK DOOR, NO.2
67891ASEAL, BACK DOOR
67891CSEAL, BACK DOOR
68131GLASS, BACK DOOR
*UVCEHT,T=5.0,GREEN
68678PROTECTOR, BACK DOOR WINDOW
75129CCUSHION, REAR LICENCE PLATE
75221BBRACKET, TOOL BOX
7552
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
76811AGARNISH, BACK DOOR, OUTSIDE
sub76811-60907
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP BLUE MC.,8X5
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825BPROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
8113
8401
8420
8606
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9010906361
main90109-06361
9011606172
main90116-06172
9011905021
main90119-05021
9015950311
main90159-50311
9017906256
main90179-06256
9046710161
main90467-10161
9162160614
main91621-60614
93540A4010
main93540-A4010
93560A4012
main93560-A4012
42 parts on this diagram · 2 diagrams in section
