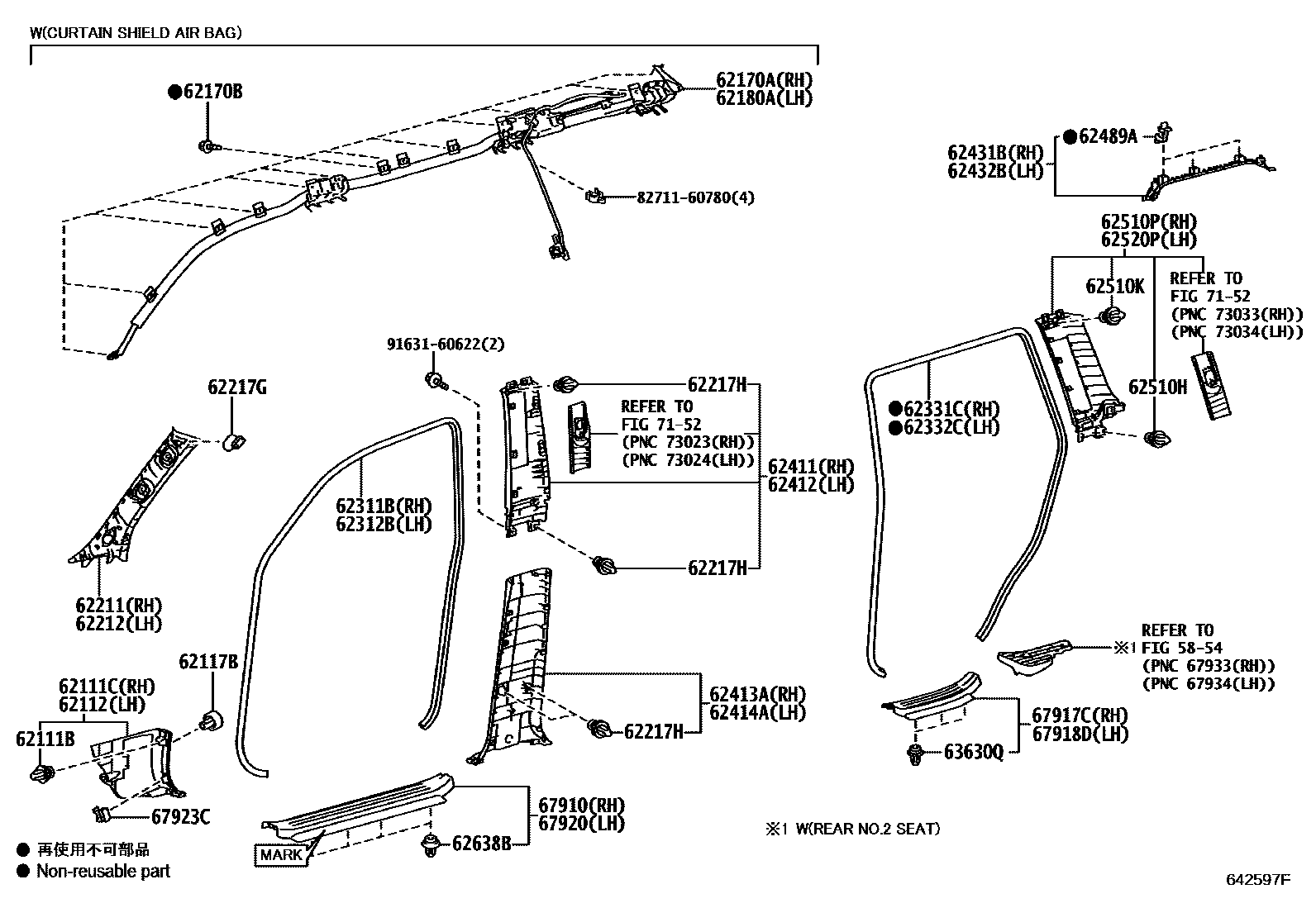

INSIDE TRIM BOARD

0001 1 0002 1

5854

62111BCLIP(FOR COWL SIDE TRIM)

main62217-13010iURJ150200911-201908

62111CBOARD, COWL SIDE TRIM, RH

main62111-60160-C0iURJ150200911-201305

BLACK,TRIM2#

sub62111-60161

main62111-60160-E0iURJ150200911-201305

SEPIA,TRIM0#,4#

sub62111-60161

main62111-60161-C0iURJ150201306-201908

BLACK,TRIM2#

main62111-60161-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62111-60161-E0iURJ150201306-201908

SEPIA,TRIM0#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-60250-C0iURJ150200911-201305

BLACK,TRIM2#

sub62112-60251

main62112-60250-E0iURJ150200911-201305

SEPIA,TRIM0#,4#

sub62112-60251

main62112-60251-C0iURJ150201908-202109

BLACK,TRIM0#,2#,4#

sub62112-60260

main62112-60251-C0iURJ150201306-201908

BLACK,TRIM2#

sub62112-60260

main62112-60251-E0iURJ150201306-201908

SEPIA,TRIM0#,4#

sub62112-60260

main62112-60260-C0iURJ150202109

BLACK,TRIM0#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06183iURJ150200911-201908

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-60130iURJ150200911-201308

main62170-60140iURJ150201308-201908

62170BBOLT, W/WASHER

main90119-06869iURJ150200911-201908

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-60110iURJ150200911-201308

main62180-60120iURJ150201308-201908

62211GARNISH, FRONT PILLAR, RH

main62210-60230-A2iURJ150200911-201305

ECRU,TRIM0#,4#

sub62210-60231

main62210-60230-B2iURJ150200911-201305

LT.GRAY,TRIM2#

sub62210-60231

main62210-60231-A2iURJ150201306-201511

ECRU,TRIM0#,4#

sub62210-60260

main62210-60231-B2iURJ150201306-201511

LT.GRAY,TRIM2#

sub62210-60260

main62210-60260-A0iURJ150201512-201908

ECRU,TRIM0#,4#

main62210-60260-B0iURJ150201512-201908

LT.GRAY,TRIM2#

main62210-60260-C0iURJ150201908

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-60230-A2iURJ150200911-201305

ECRU,TRIM0#,4#

sub62220-60231

main62220-60230-B2iURJ150200911-201305

LT.GRAY,TRIM2#

sub62220-60231

main62220-60231-A2iURJ150201306-201511

ECRU,TRIM0#,4#

sub62220-60260

main62220-60231-B2iURJ150201306-201511

LT.GRAY,TRIM2#

sub62220-60260

main62220-60260-A0iURJ150201512-201908

ECRU,TRIM0#,4#

main62220-60260-B0iURJ150201512-201908

LT.GRAY,TRIM2#

main62220-60260-C0iURJ150201908

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-60020iURJ150200911-201908

62217HCLIP, CENTER PILLER GARNISH

main90467-10161iURJ150200911-201908

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-60160-C0iURJ150200911-201908

BLACK,TRIM2#

main62311-60160-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62311-60160-E0iURJ150200911-201908

SEPIA,TRIM0#,4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-60160-C0iURJ150200911-201908

BLACK,TRIM2#

main62312-60160-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62312-60160-E0iURJ150200911-201908

SEPIA,TRIM0#,4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-60100-C0iURJ150200911-201804

BLACK,TRIM2#

sub62331-60101

main62331-60100-E0iURJ150200911-201804

SEPIA,TRIM0#,4#

sub62331-60101

main62331-60101-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62331-60101-C0iURJ150201805-201908

BLACK,TRIM2#

main62331-60101-E0iURJ150201805-201908

SEPIA,TRIM0#,4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-60100-C0iURJ150200911-201804

BLACK,TRIM2#

sub62332-60101

main62332-60100-E0iURJ150200911-201804

SEPIA,TRIM0#,4#

sub62332-60101

main62332-60101-C0iURJ150201805-201908

BLACK,TRIM2#

main62332-60101-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62332-60101-E0iURJ150201805-201908

SEPIA,TRIM0#,4#

62411GARNISH, CENTER PILLAR, RH

main62410-60150-A1iURJ150200911-201305

ECRU,TRIM0#,4#

sub62410-60151

main62410-60150-B1iURJ150200911-201305

LT.GRAY,TRIM2#

sub62410-60151

main62410-60151-A1iURJ150201306-201511

ECRU,TRIM0#,4#

sub62410-60170

main62410-60151-B1iURJ150201306-201511

LT.GRAY,TRIM2#

sub62410-60170

main62410-60170-A0iURJ150201512-201908

ECRU,TRIM0#,4#

main62410-60170-B0iURJ150201512-201908

LT.GRAY,TRIM2#

main62410-60170-C0iURJ150201908

BLACK,TRIM2#

62412GARNISH, CENTER PILLAR, LH

main62420-60150-A1iURJ150200911-201305

ECRU,TRIM0#,4#

sub62420-60151

main62420-60150-B1iURJ150200911-201305

LT.GRAY,TRIM2#

sub62420-60151

main62420-60151-A1iURJ150201306-201511

ECRU,TRIM0#,4#

sub62420-60170

main62420-60151-B1iURJ150201306-201511

LT.GRAY,TRIM2#

sub62420-60170

main62420-60170-A0iURJ150201512-201908

ECRU,TRIM0#,4#

main62420-60170-B0iURJ150201512-201908

LT.GRAY,TRIM2#

main62420-60170-C0iURJ150201908

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60090-C0iURJ150200911-201908

BLACK,TRIM2#

main62413-60090-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62413-60090-E0iURJ150200911-201908

SEPIA,TRIM0#,4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60090-C0iURJ150200911-201908

BLACK,TRIM2#

main62414-60090-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main62414-60090-E0iURJ150200911-201908

SEPIA,TRIM0#,4#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-60080-A0iURJ150200911-201305

ECRU,TRIM0#,4#

sub62431-60081

main62431-60080-B0iURJ150200911-201305

LT.GRAY,TRIM2#

sub62431-60081

main62431-60081-A0iURJ150201306-201908

ECRU,TRIM0#,4#

main62431-60081-B0iURJ150201306-201908

LT.GRAY,TRIM2#

main62431-60081-C0iURJ150201908

BLACK,TRIM2#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-60060-A0iURJ150200911-201305

ECRU,TRIM0#,4#

sub62432-60061

main62432-60060-B0iURJ150200911-201305

LT.GRAY,TRIM2#

sub62432-60061

main62432-60061-A0iURJ150201306-201908

ECRU,TRIM0#,4#

main62432-60061-B0iURJ150201306-201908

LT.GRAY,TRIM2#

main62432-60061-C0iURJ150201908

BLACK,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-60020iURJ150200911-201908

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10161iURJ150200911-201908

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10188iURJ150200911-201908

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-60D20-A2iURJ150200911-201305

ECRU,TRIM0#,4#

sub62510-60D21

main62510-60D20-B2iURJ150200911-201305

LT.GRAY,TRIM2#

sub62510-60D21

main62510-60D21-A2iURJ150201306-201602

ECRU,TRIM0#,4#

sub62510-60D30

main62510-60D21-B2iURJ150201306-201602

LT.GRAY,TRIM2#

sub62510-60D30

main62510-60D30-A0iURJ150201603-201908

ECRU,TRIM0#,4#

main62510-60D30-B0iURJ150201603-201908

LT.GRAY,TRIM2#

main62510-60D30-C0iURJ150201908

BLACK,TRIM2#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-60B50-A2iURJ150200911-201305

ECRU,TRIM0#,4#

sub62520-60B51

main62520-60B50-B2iURJ150200911-201305

LT.GRAY,TRIM2#

sub62520-60B51

main62520-60B51-A2iURJ150201306-201602

ECRU,TRIM0#,4#

sub62520-60G20

main62520-60B51-B2iURJ150201306-201602

LT.GRAY,TRIM2#

sub62520-60G20

main62520-60G20-A0iURJ150201603-201908

ECRU,TRIM0#,4#

main62520-60G20-B0iURJ150201603-201908

LT.GRAY,TRIM2#

main62520-60G20-C0iURJ150201908

BLACK,TRIM2#

62638BCLIP

main90467-10162iURJ150200911-201908

63630QCLIP

main90467-10162iURJ150200911-201908

67910PLATE ASSY, DOOR SCUFF, RH

main67910-60060-C0iURJ150200911-201306

BLACK,TRIM2#,MARK:LEXUS

sub67910-60062

main67910-60060-E0iURJ150200911-201306

SEPIA,TRIM0#,4#,MARK:LEXUS

sub67910-60062

main67910-60062-C0iURJ150201306-201308

BLACK,TRIM2#,MARK:LEXUS

sub67910-60063

main67910-60062-E0iURJ150201306-201308

SEPIA,TRIM0#,4#,MARK:LEXUS

sub67910-60063

main67910-60063-C0iURJ150201308-201602

BLACK,TRIM2#,MARK:LEXUS

sub67910-60080

main67910-60063-E0iURJ150201308-201602

SEPIA,TRIM0#,4#,MARK:LEXUS

sub67910-60080

main67910-60080-C0iURJ150201908

BLACK,TRIM0#,2#,4#,MARK:LEXUS

main67910-60080-C0iURJ150201603-201908

BLACK,TRIM2#,MARK:LEXUS

main67910-60080-E0iURJ150201603-201908

SEPIA,TRIM0#,4#,MARK:LEXUS

67917CPLATE, REAR DOOR SCUFF, RH

main67930-60080-C0iURJ150200911-201306

BLACK,TRIM2#

sub67930-60082

main67930-60080-E0iURJ150200911-201306

SEPIA,TRIM0#,4#

sub67930-60082

main67930-60082-C0iURJ150201306-201308

BLACK,TRIM2#

sub67930-60083

main67930-60082-E0iURJ150201306-201308

SEPIA,TRIM0#,4#

sub67930-60083

main67930-60083-C0iURJ150201308-201602

BLACK,TRIM2#

sub67930-60090

main67930-60083-E0iURJ150201308-201602

SEPIA,TRIM0#,4#

sub67930-60090

main67930-60090-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main67930-60090-C0iURJ150201603-201908

BLACK,TRIM2#

main67930-60090-E0iURJ150201603-201908

SEPIA,TRIM0#,4#

67918DPLATE, REAR DOOR SCUFF, LH

main67940-60040-C0iURJ150200911-201306

BLACK,TRIM2#

sub67940-60042

main67940-60040-E0iURJ150200911-201306

SEPIA,TRIM0#,4#

sub67940-60042

main67940-60042-C0iURJ150201306-201308

BLACK,TRIM2#

sub67940-60043

main67940-60042-E0iURJ150201306-201308

SEPIA,TRIM0#,4#

sub67940-60043

main67940-60043-C0iURJ150201308-201602

BLACK,TRIM2#

sub67940-60050

main67940-60043-E0iURJ150201308-201602

SEPIA,TRIM0#,4#

sub67940-60050

main67940-60050-C0iURJ150201908

BLACK,TRIM0#,2#,4#

main67940-60050-C0iURJ150201603-201908

BLACK,TRIM2#

main67940-60050-E0iURJ150201603-201908

SEPIA,TRIM0#,4#

67920PLATE ASSY, DOOR SCUFF, LH

main67920-60060-C0iURJ150200911-201306

BLACK,TRIM2#,MARK:LEXUS

sub67920-60062

main67920-60060-E0iURJ150200911-201306

SEPIA,TRIM0#,4#,MARK:LEXUS

sub67920-60062

main67920-60062-C0iURJ150201306-201308

BLACK,TRIM2#,MARK:LEXUS

sub67920-60063

main67920-60062-E0iURJ150201306-201308

SEPIA,TRIM0#,4#,MARK:LEXUS

sub67920-60063

main67920-60063-C0iURJ150201308-201602

BLACK,TRIM2#,MARK:LEXUS

sub67920-60080

main67920-60063-E0iURJ150201308-201602

SEPIA,TRIM0#,4#,MARK:LEXUS

sub67920-60080

main67920-60080-C0iURJ150201908

BLACK,TRIM0#,2#,4#,MARK:LEXUS

main67920-60080-C0iURJ150201603-201908

BLACK,TRIM2#,MARK:LEXUS

main67920-60080-E0iURJ150201603-201908

SEPIA,TRIM0#,4#,MARK:LEXUS

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iURJ150200911-201908

7152

8271160780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60780

9163160622

main91631-60622

37 parts on this diagram · 2 diagrams in section
