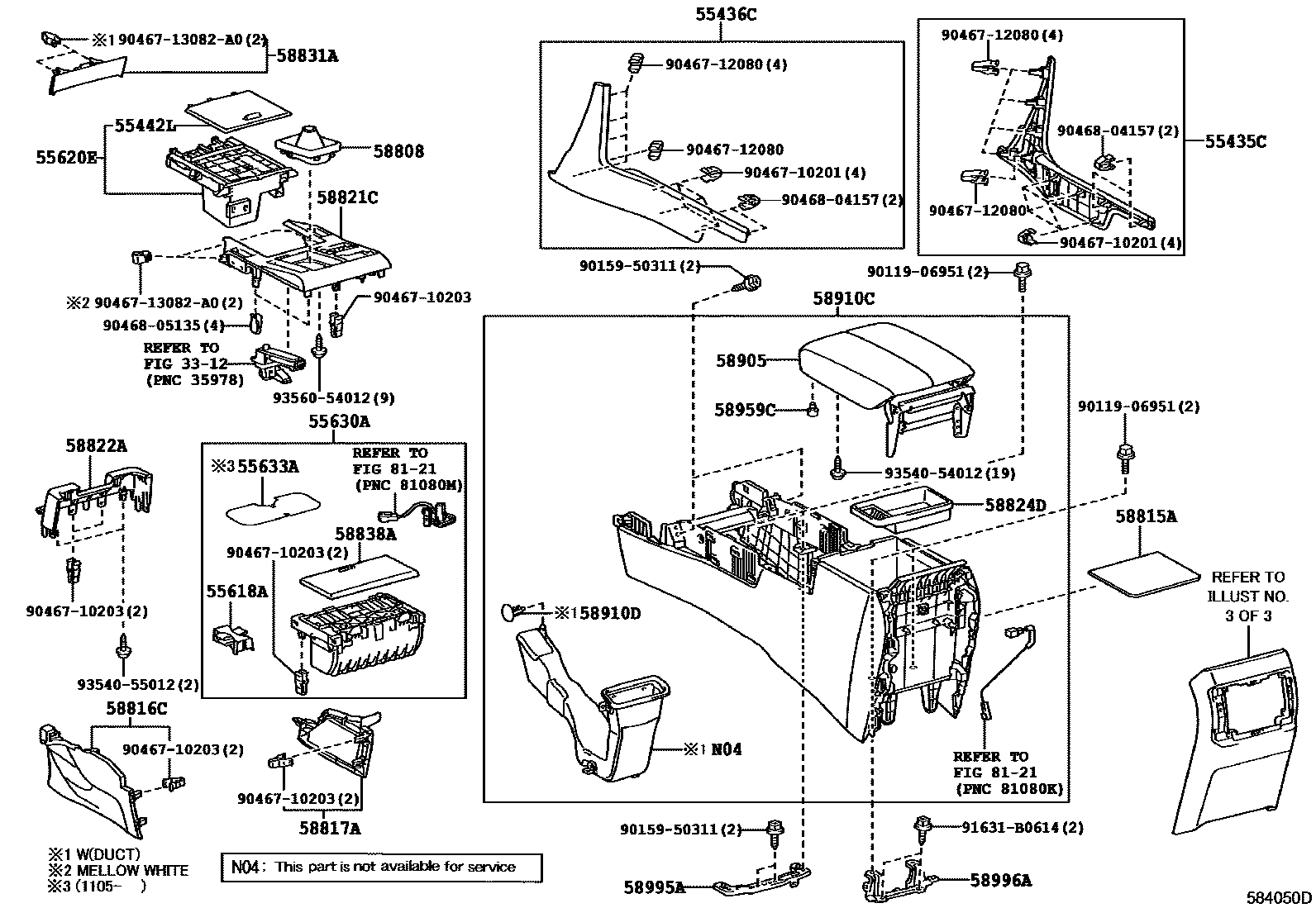

CONSOLE BOX & BRACKET

0001 1W/O(COOL BOX) 0002 1W(COOL BOX) 0003 1W/O(COOL BOX) 0004 1W(COOL BOX) 0005 1W/O(COOL BOX) 0006 1W/O(COOL BOX) 0007 1W(COOL BOX) 0008 1W(COOL BOX) 0009 1W(COOL BOX) 0010 1 0011 1 0012 1

3312

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

main55402-60070-A2iURJ150200911-202108

ECRU,TRIM0#

main55402-60070-C1iURJ150201908-202108

BLACK,TRIM20

main55402-60070-C1iURJ150200911-201908

BLACK,TRIM2#

main55402-60070-C3iURJ150201908-202108

BLACK/CRIMSON,TRIM21

main55402-60070-E1iURJ150200911-201908

SEPIA,TRIM4#

main55402-60070-E2iURJ150201908-202108

SEPIA/LT.BROWN,TRIM4#

main55402-60300-A0iURJ150202108

ECRU,TRIM0#

main55402-60300-C0iURJ150202108

BLACK/CRIMSON,TRIM21

main55402-60300-C2iURJ150202108

BLACK/LT.BROWN,TRIM20

main55402-60300-E0iURJ150202108

SEPIA,TRIM4#

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55403-60070-A2iURJ150200911-202108

ECRU,TRIM0#

main55403-60070-C1iURJ150201908-202108

BLACK,TRIM20

main55403-60070-C1iURJ150200911-201908

BLACK,TRIM2#

main55403-60070-C3iURJ150201908-202108

BLACK/CRIMSON,TRIM21

main55403-60070-E1iURJ150200911-201908

SEPIA,TRIM4#

main55403-60070-E2iURJ150201908-202108

SEPIA/LT.BROWN,TRIM4#

main55403-60290-A0iURJ150202108

ECRU,TRIM0#

main55403-60290-C0iURJ150202108

BLACK/CRIMSON,TRIM21

main55403-60290-C2iURJ150202108

BLACK/LT.BROWN,TRIM20

main55403-60290-E0iURJ150202108

SEPIA,TRIM4#

55442LDOOR, INSTRUMENT PANEL

main55442-60080iURJ150201308-201908

main55442-60130-E0iURJ150200911-201308

REDDISH BROWN,TRIM0#,2#,4#

55618AHOLDER, CONSOLE BOX CUP

main55618-60180iURJ150200911-201105

sub55618-60190

main55618-60190iURJ150201105-201308

55620EHOLDER ASSY, INSTRUMENT PANEL CUP

main55620-60050iURJ150201308-201908

main55620-60190-E0iURJ150200911-201107

SEPIA,TRIM0#,2#,4#

sub55620-60200

main55620-60200-E0iURJ150201108-201308

REDDISH BROWN,TRIM0#,2#,4#

sub55620-60201

main55620-60350iURJ150201908

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-60040-E0iURJ150200911-201107

SEPIA,TRIM0#,2#,4#

sub55630-60050

main55630-60050-E0iURJ150201108-201203

REDDISH BROWN,TRIM0#,2#,4#

sub55630-60051

main55630-60051-E0iURJ150201204-201308

REDDISH BROWN,TRIM0#,2#,4#

main55630-60060iURJ150201810-201908

main55630-60060-E0iURJ150201308-201810

BROWN,TRIM0#,2#,4#

sub55630-60060

main55630-60070iURJ150201908-202108

main55630-60080iURJ150202108

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-60130iURJ150201105-201308

main55633-60160iURJ150202108

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60400-C1iURJ150200911-201111

BLACK,TRIM2#,4#

sub58808-60401

main58808-60400-E1iURJ150200911-201111

SEPIA,TRIM0#

sub58808-60401

main58808-60401-C1iURJ150201112-201202

BLACK,TRIM2#,4#

sub58808-60402

main58808-60401-E1iURJ150201112-201202

SEPIA,TRIM0#

sub58808-60402

main58808-60402-C1iURJ150201203-201908

BLACK,TRIM2#,4#

main58808-60402-E1iURJ150201203-201908

SEPIA,TRIM0#

main58808-60510-C1iURJ150201908-202108

BLACK/LT.BROWN,TRIM0#,20,4#

main58808-60510-C2iURJ150201908-202108

BLACK/CRIMSON,TRIM21

main58808-60580-C0iURJ150202108

BLACK/CRIMSON,TRIM21

main58808-60580-C2iURJ150202108

BLACK/LT.BROWN,TRIM0#,20,4#

58815ACARPET, CONSOLE BOX

main58815-60130iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH

main58815-60130iURJ150201308-201908

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-60050-A0iURJ150200911-201908

ECRU,TRIM0#

main58816-60050-C0iURJ150200911-201908

BLACK,TRIM2#

main58816-60050-E0iURJ150200911-201908

SEPIA,TRIM4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-60060-A0iURJ150200911-201908

ECRU,TRIM0#

main58817-60060-C0iURJ150200911-201908

BLACK,TRIM2#

main58817-60060-E0iURJ150200911-201908

SEPIA,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58821-60380iURJ150200911-201212

sub58821-60381

main58821-60381iURJ150201301-201908

main58821-60A10iURJ150201908-202108

main58821-60B90iURJ150202108

58822APANEL, CONSOLE, UPPER REAR

main58822-60070-A0iURJ150200911-201908

ECRU,TRIM0#

main58822-60070-C0iURJ150200911-201908

BLACK,TRIM2#

main58822-60070-E0iURJ150200911-201908

SEPIA,TRIM4#

58824DBOX, CONSOLE COIN

main58824-60020iURJ150201308-201908

main58824-60020iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-60220iURJ150200911-201308

main58831-60230iURJ150201308-202108

main58831-60460iURJ150202108

58838ADOOR, CONSOLE CUP HOLDER BOX

main58838-60090-E0iURJ150200911-201308

REDDISH BROWN,TRIM0#,2#,4#

main58838-60100iURJ150201810-201908

main58838-60100-E0iURJ150201308-201810

BROWN,TRIM0#,2#,4#

sub58838-60100

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60330-A2iURJ150200911-201607

ECRU,TRIM0#

sub58905-60331

main58905-60330-A2iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH,ECRU,TRIM0#

sub58905-60331

main58905-60330-C1iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH,BLACK,TRIM2#

sub58905-60331

main58905-60330-C1iURJ150200911-201607

BLACK,TRIM2#

sub58905-60331

main58905-60330-C3iURJ150201908

BLACK/CRIMSON,TRIM2#

sub58905-60331

main58905-60330-E1iURJ150200911-201607

SEPIA,TRIM4#

sub58905-60331

main58905-60330-E1iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH,SEPIA,TRIM4#

sub58905-60331

main58905-60330-E2iURJ150201908

SEPIA/LT.BROWN,TRIM4#

sub58905-60331

main58905-60331-A2iURJ150201607-201908

TRIM0#

main58905-60331-C1iURJ150201607-201908

TRIM2#

main58905-60331-E1iURJ150201607-201908

TRIM4#

58910CBOX ASSY, CONSOLE, REAR

main58910-60130-A2iURJ150200911-201607

ECRU,TRIM0#

sub58910-60131

main58910-60130-A2iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH,ECRU,TRIM0#

sub58910-60131

main58910-60130-C1iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH,BLACK,TRIM2#

sub58910-60131

main58910-60130-C1iURJ150200911-201607

BLACK,TRIM2#

sub58910-60131

main58910-60130-C3iURJ150201908-202108

BLACK/CRIMSON,TRIM2#

sub58910-60131

main58910-60130-E1iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH,SEPIA,TRIM4#

sub58910-60131

main58910-60130-E1iURJ150200911-201607

SEPIA,TRIM4#

sub58910-60131

main58910-60130-E2iURJ150201908-202108

SEPIA/LT.BROWN,TRIM4#

sub58910-60131

main58910-60131-A2iURJ150201607-202108

TRIM0#

main58910-60131-C1iURJ150201607-202108

TRIM2#

main58910-60131-E1iURJ150201607-201908

TRIM4#

main58910-60300-A0iURJ150202108

ECRU,TRIM0#

main58910-60300-C0iURJ150202108

BLACK/CRIMSON,TRIM21

main58910-60300-C2iURJ150202108

BLACK/LT.BROWN,TRIM20

main58910-60300-E0iURJ150202108

SEPIA/LT.BROWN,TRIM4#

58910DCLIP(FOR CONSOLE BOX)

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iURJ150200911-201308

2 SEAT PACKAGE&COOL BOX-WITH

main58959-60060iURJ150201308-201908

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-35060iURJ150200911-201308

COOL BOX-WITH

main58995-35060iURJ150201308-201908

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60090iURJ150200911-201205

COOL BOX-WITH

sub58996-60120

main58996-60120iURJ150201206-201308

COOL BOX-WITH

main58996-60120iURJ150201308-201908

8121

9011906951

main90119-06951

9015950311

main90159-50311

9046710201

main90467-10201

9046710203

main90467-10203

9046712080

main90467-12080

9046713082A0

main90467-13082A0

9046804157

main90468-04157

9046805135

main90468-05135

91631B0614

main91631-B0614

9354054012

main93540-54012

9354055012

main93540-55012

9356054012

main93560-54012

36 parts on this diagram · 12 diagrams in section
