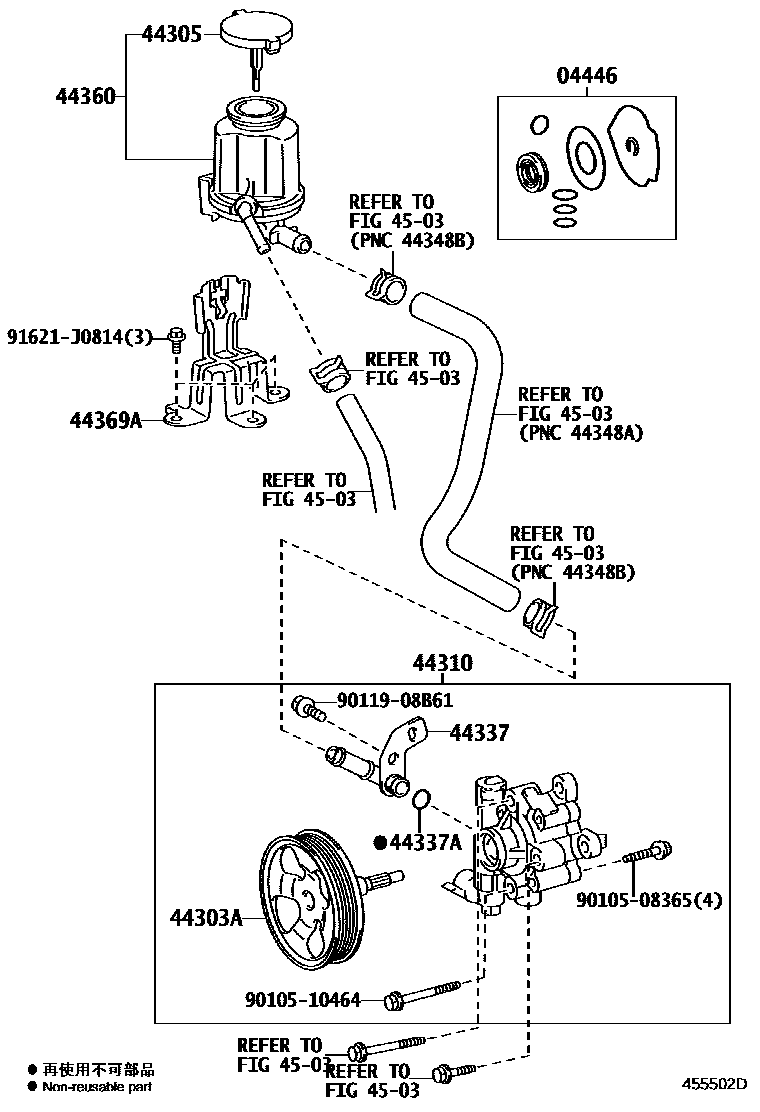

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-12080iURJ150200911-201908

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-35020iURJ150200911-201908

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28060iURJ150200911-201207

main44305-28061iURJ150201208-201908

44310PUMP ASSY, VANE

main44310-60570iURJ150200911-201305

main44310-60571iURJ150201306-201908

44337UNION, POWER STEERING SUCTION PORT

main44337-35110iURJ150200911-201908

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iURJ150200911-201908

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60320iURJ150200911-201207

main44360-60321iURJ150201208-201908

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iURJ150200911-201908

4503POWER STEERING TUBE

→ Go to FIG 45-03

9010508365

main90105-08365

9010510464

main90105-10464

9011908B61

main90119-08B61

91621J0814

main91621-J0814

13 parts on this diagram · 1 diagram in section
