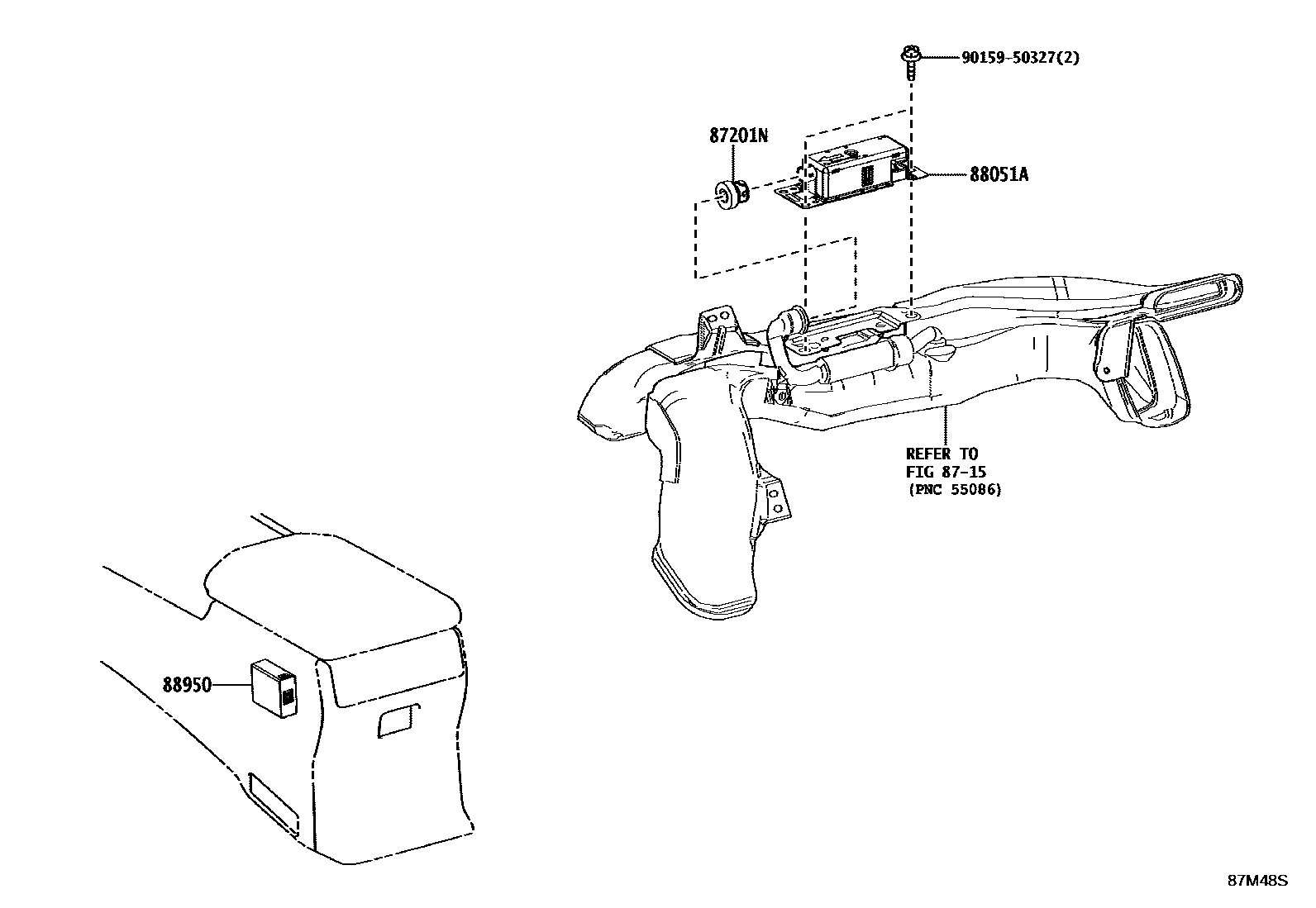

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-50010iTJH252,VJA252..ARL,CHI; VJA252..LHD202402

MINUS ION GENERATOR-WITH

88051AGENERATOR SUB-ASSY,ION

main88051-48010iTJH252,VJA252..ARL,CHI; VJA252..LHD202402

MINUS ION GENERATOR-WITH

88950AMPLIFIER ASSY, AIR PURIFIER

main88950-60040iVJA252202402

REAR CONSOLE BOX-W(COOL BOX)

9015950327

main90159-50327

5 parts on this diagram · 1 diagram in section
