LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
MASTER KEY
69503EKEY, BLANK(CARD KEY)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745BBATTERY, TRANSMITTER(CARD KEY)
89745CBATTERY, TRANSMITTER
CR2032
CR2450
CR2450,VIETNAM SPEC&&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
CR2450,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
CR2450,DOMINICAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
CR2450,PANAMA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
89751ACOVER, TRANSMITTER HOUSING
BRUNEI SPEC&
MALAYSIA SPEC&
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
VIETNAM SPEC&&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
DOMINICAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
PANAMA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
8975BCOVER, TRANSMITTER BATTERY HOUSING
BRUNEI SPEC&
MALAYSIA SPEC&
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
DOMINICAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
PANAMA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
VIETNAM SPEC&&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&ALARM&SIREN&*IS&TILT)
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
TYPE A
TYPE B
TYPE B
TYPE A
TYPE B
BRUNEI SPEC&,TYPE B
TYPE B
BRUNEI SPEC&,TYPE B
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

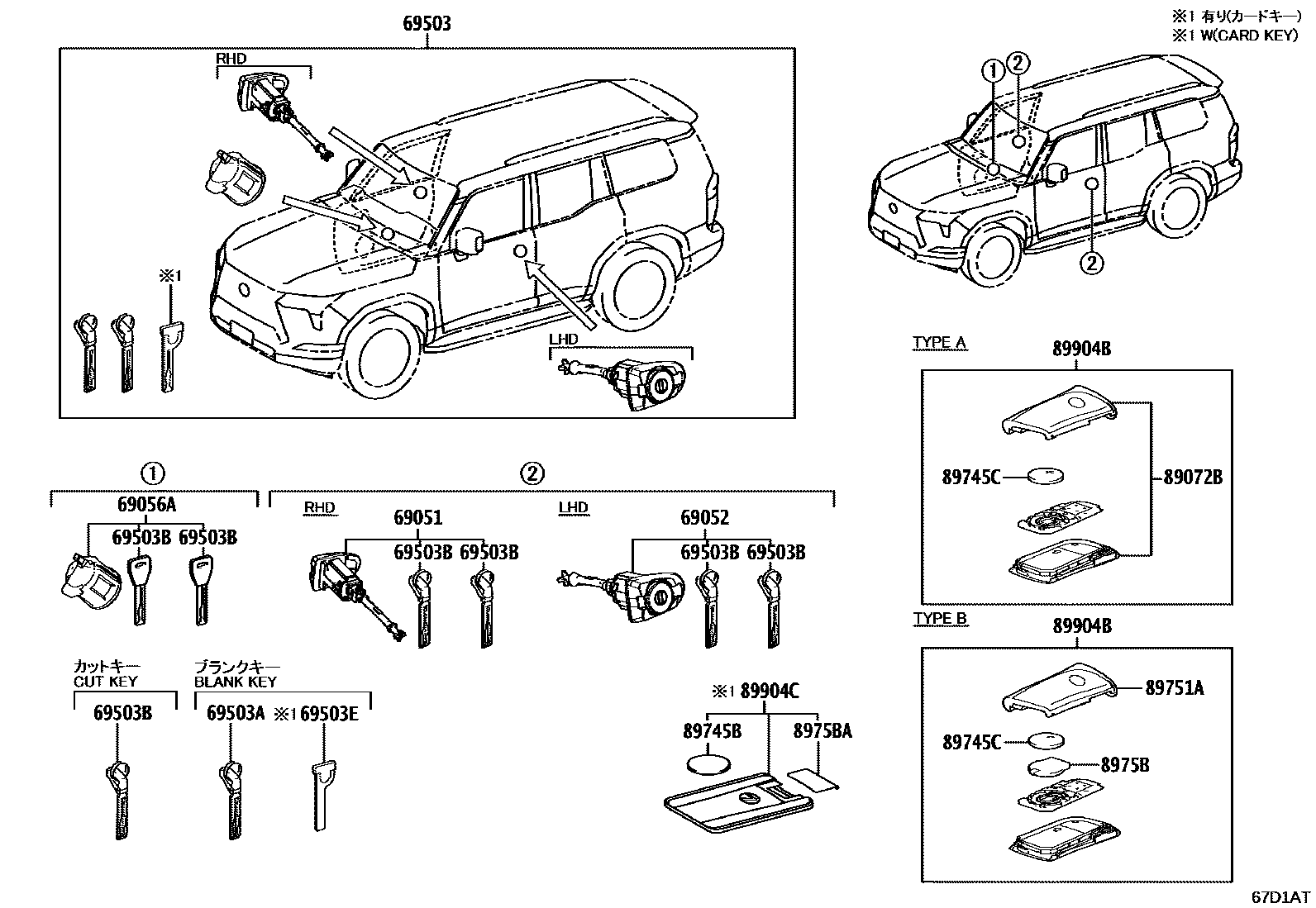

15 parts on this diagram · 1 diagram in section
