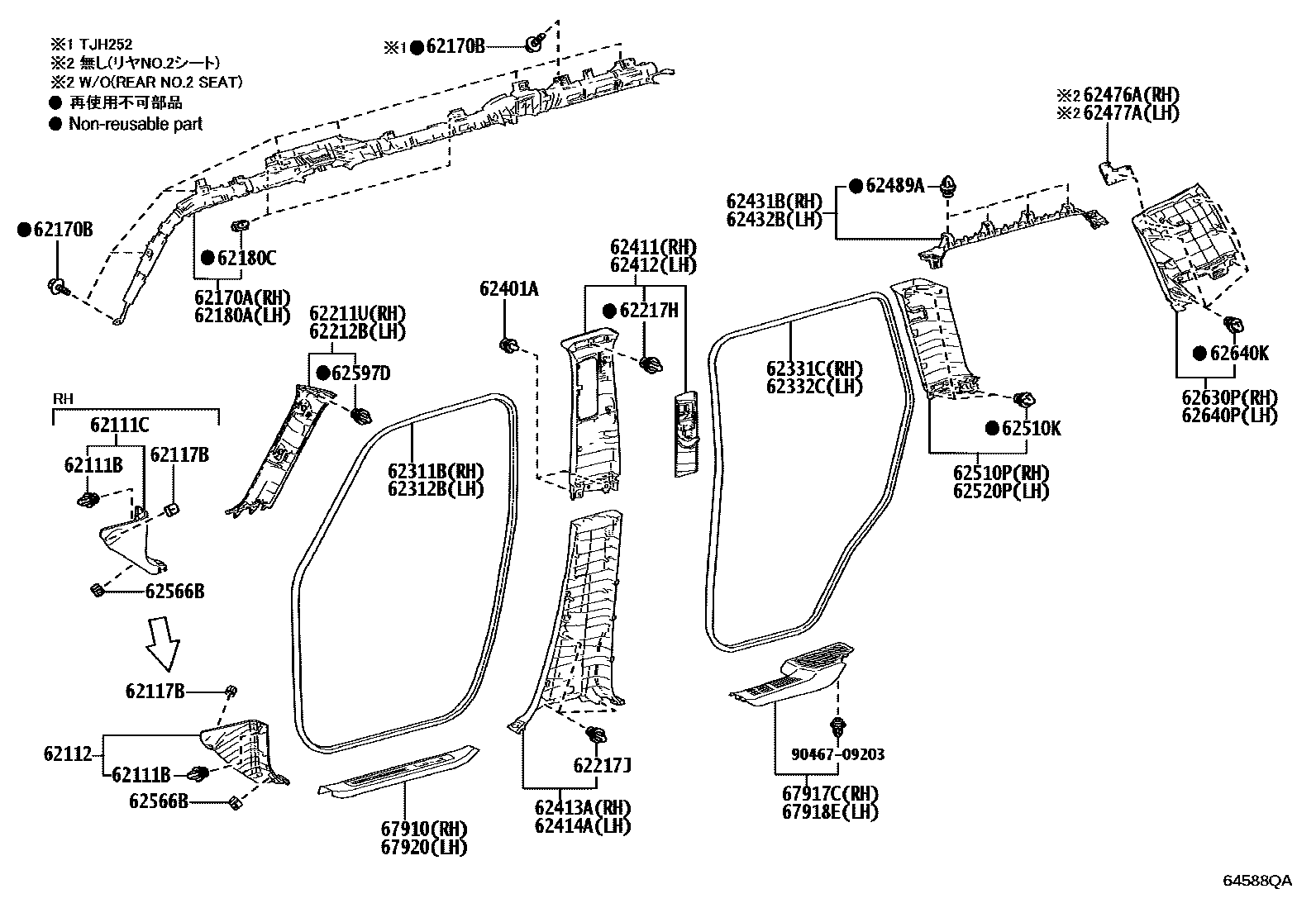

INSIDE TRIM BOARD

0001 1FRONT & CENTER 0002 1QUARTER, RH 0003 1QUARTER, RH 0004 1QUARTER, LH 0005 1QUARTER, LH

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iTJH252,VJA252202402

62111CBOARD, COWL SIDE TRIM, RH

main62111-60210-C0iTJH252,VJA252..LHD202402

BLACK,TRIM1#,2#,4#

main62111-60220-C0iVJA252..ARL202402

BLACK,TRIM1#,2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-60350-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iTJH252,VJA252202402

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-60210iTJH252202403

main62170-60220iVJA252202402-202407

main62170-60222iVJA252202407

62170BBOLT, W/WASHER

main91673-80616iTJH252202402

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-60210iTJH252202403

main62180-60220iVJA252202402-202407

main62180-60222iVJA252202407

62180CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iVJA252202402-202407

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-60440-C0iVJA252..ARL202402-202411

NV PACKAGE BASE GRADE,BLACK,TRIM1#,2#

main62210-60440-C0iVJA252..LHD202402-202411

BLACK,TRIM1#,2#,4#

main62210-60450-C0iTJH252,VJA252..ARL,CHI202402

BLACK,TRIM1#,2#,4#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-60440-C0iVJA252..LHD202402-202411

BLACK,TRIM1#,2#,4#

main62220-60440-C0iVJA252..LHD202402-202411

NV PACKAGE BASE GRADE,BLACK,TRIM1#,2#

main62220-60450-C0iTJH252,VJA252..ARL,CHI202402

BLACK,TRIM1#,2#,4#

62217HCLIP, CENTER PILLER GARNISH

main90467-10188iTJH252,VJA252202402

62217JCLIP, CENTER PILLER GARNISH

main90467-10167iTJH252,VJA252202402

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-60190iTJH252,VJA252202402

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-60190iTJH252,VJA252202402

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-60120iTJH252,VJA252202402

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-60120iTJH252,VJA252202402

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10216iTJH252,VJA252202402

62411GARNISH, CENTER PILLAR, RH

main62410-60290-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62412GARNISH, CENTER PILLAR, LH

main62420-60290-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60130-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60130-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-60120-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-60110-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62476ACAP, ROOF SIDE INNER GARNISH, RH

main62476-60020-C0iVJA252..RUS202402

BLACK,TRIM1#,2#,4#

main62476-60020-C0iVJA252..RUS202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

62477ACAP, ROOF SIDE INNER GARNISH, LH

main62477-60020-C0iVJA252..RUS202402

BLACK,TRIM1#,2#,4#

main62477-60020-C0iVJA252..RUS202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

62489ACLIP, ROOF SIDE INNER GARNISH

main90467-09245iTJH252,VJA252202402

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10167iTJH252,VJA252202402

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-60L30-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-60S00-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-48020iTJH252,VJA252202402

62597DCLIP

main90467-10161iTJH252,VJA252202402

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-60340-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

62640KCLIP(FOR QUARTER TRIM REAR PANEL)

main90467-09245iTJH252,VJA252202402

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62640-60320-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

67910PLATE ASSY, DOOR SCUFF, RH

main67910-60170-C0iTJH252,VJA252..ARL,CHI202402

BLACK,TRIM1#,2#,4#

main67910-60170-C0iTJH252,VJA252..ARL,CHI202402

MALAYSIA SPEC&LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main67910-60170-C0iTJH252,VJA252..ARL,CHI202402

PREMIUM+ PACKAGE,BLACK,TRIM1#,2#,4#

main67913-60300-C0iVJA252..LHD202402

BLACK,TRIM1#,2#,4#

main67913-60300-C0iVJA252..LHD202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-60250-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-60240-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

67920PLATE ASSY, DOOR SCUFF, LH

main67914-60270-C0iVJA252..LHD202402

BLACK,TRIM1#,2#,4#

main67914-60270-C0iVJA252..LHD202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

main67920-60170-C0iTJH252,VJA252..ARL,CHI202402

BLACK,TRIM1#,2#,4#

main67920-60170-C0iTJH252,VJA252..ARL,CHI202402

MALAYSIA SPEC&LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#

main67920-60170-C0iTJH252,VJA252..ARL,CHI202402

PREMIUM+ PACKAGE,BLACK,TRIM1#,2#,4#

9046709203

main90467-09203

39 parts on this diagram · 5 diagrams in section
