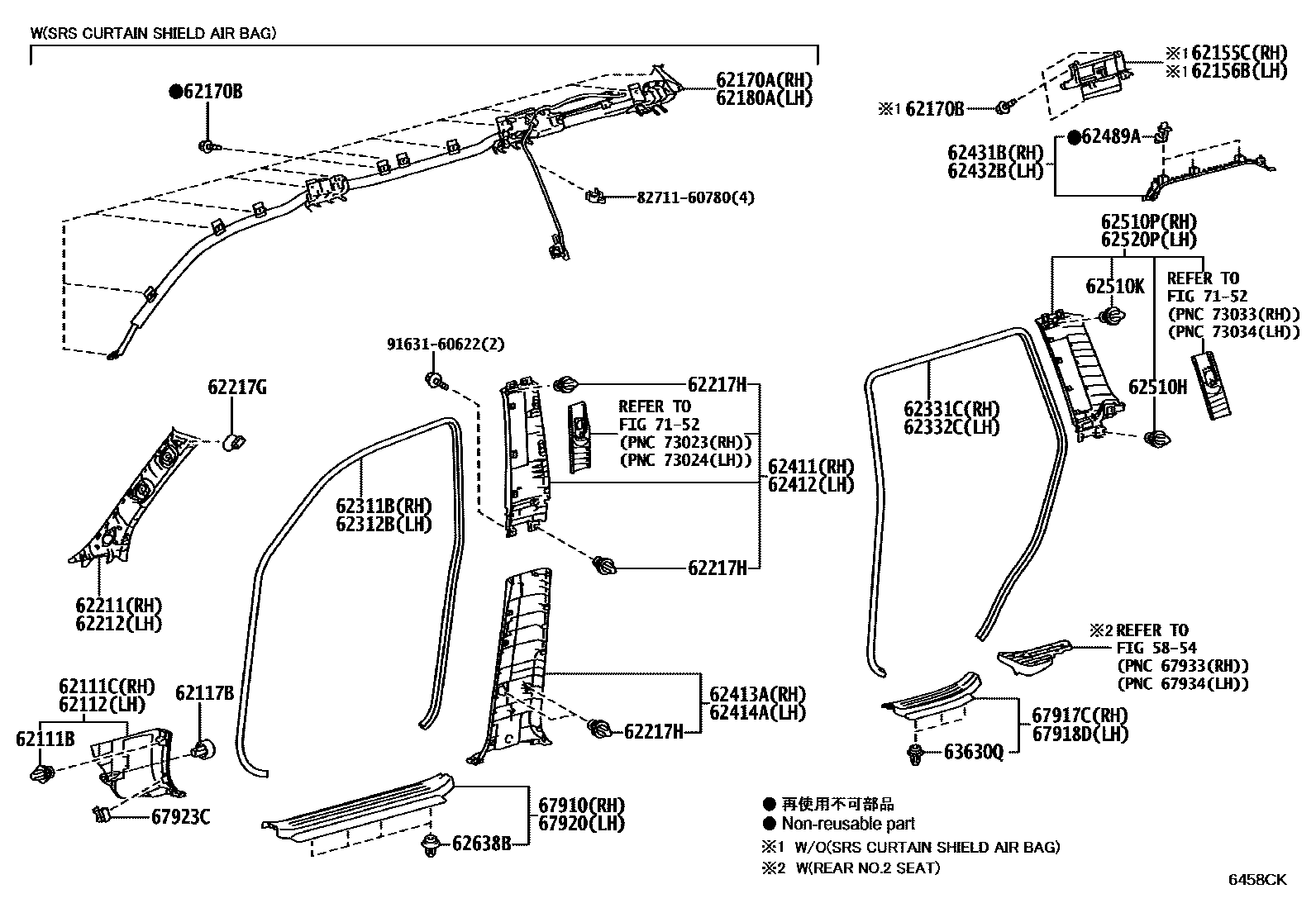

INSIDE TRIM BOARD
5854
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
sub62170-60101
N1&SWEDEN, FINLAND, DENMARK SPEC&REAR SEAT-WITHOUT(WITH/ANCHOR)&SEAT VENTILATION-WITH(VENTILATION & HEATER)
N1&NORWAY SPEC&REAR SEAT-WITHOUT(WITH/ANCHOR)&SEAT VENTILATION-WITH(VENTILATION &HEATER)
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT MANUAL
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REARSEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
TAIWAN SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
TURKEY SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
ISRAEL SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RRAIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER
sub62170-60121
62170BBOLT, W/WASHER
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-WITHOUT(WITH/ANCHOR)
REAR SEAT-WITHOUT(WITH/ANCHOR)
VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RRAIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT MANUAL
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REARSEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
TAIWAN SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
TURKEY SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
ISRAEL SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
sub62180-60081
N1&NORWAY SPEC&REAR SEAT-WITHOUT(WITH/ANCHOR)&SEAT VENTILATION-WITH(VENTILATION &HEATER)
N1&SWEDEN, FINLAND, DENMARK SPEC&REAR SEAT-WITHOUT(WITH/ANCHOR)&SEAT VENTILATION-WITH(VENTILATION & HEATER)
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(MANUAL),W(*RRAIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
*LES & WITH(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT MANUAL
*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REARSEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*FAS & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5PERSONS SEAT
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
TAIWAN SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
TURKEY SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
ISRAEL SPEC&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT VENTILATION-WITH(VENTILATION & HEATER)
VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN &5:5 DOUBLE FLAT POWER
VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN, 5 PERSONS SEAT
sub62180-60101
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
62412GARNISH, CENTER PILLAR, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
62489ACLIP, ROOF SIDE INNER GARNISH
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
62638BCLIP
63630QCLIP
67910PLATE ASSY, DOOR SCUFF, RH
NEUTRAL BEIGE,TRIM4#
67917CPLATE, REAR DOOR SCUFF, RH
NEUTRAL BEIGE,TRIM4#
67918DPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
67920PLATE ASSY, DOOR SCUFF, LH
NEUTRAL BEIGE,TRIM4#
67923CCLAMP, DOOR SCUFF PLATE, NO.1
7152
8271160780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60780
9163160622
main91631-60622
39 parts on this diagram · 5 diagrams in section
