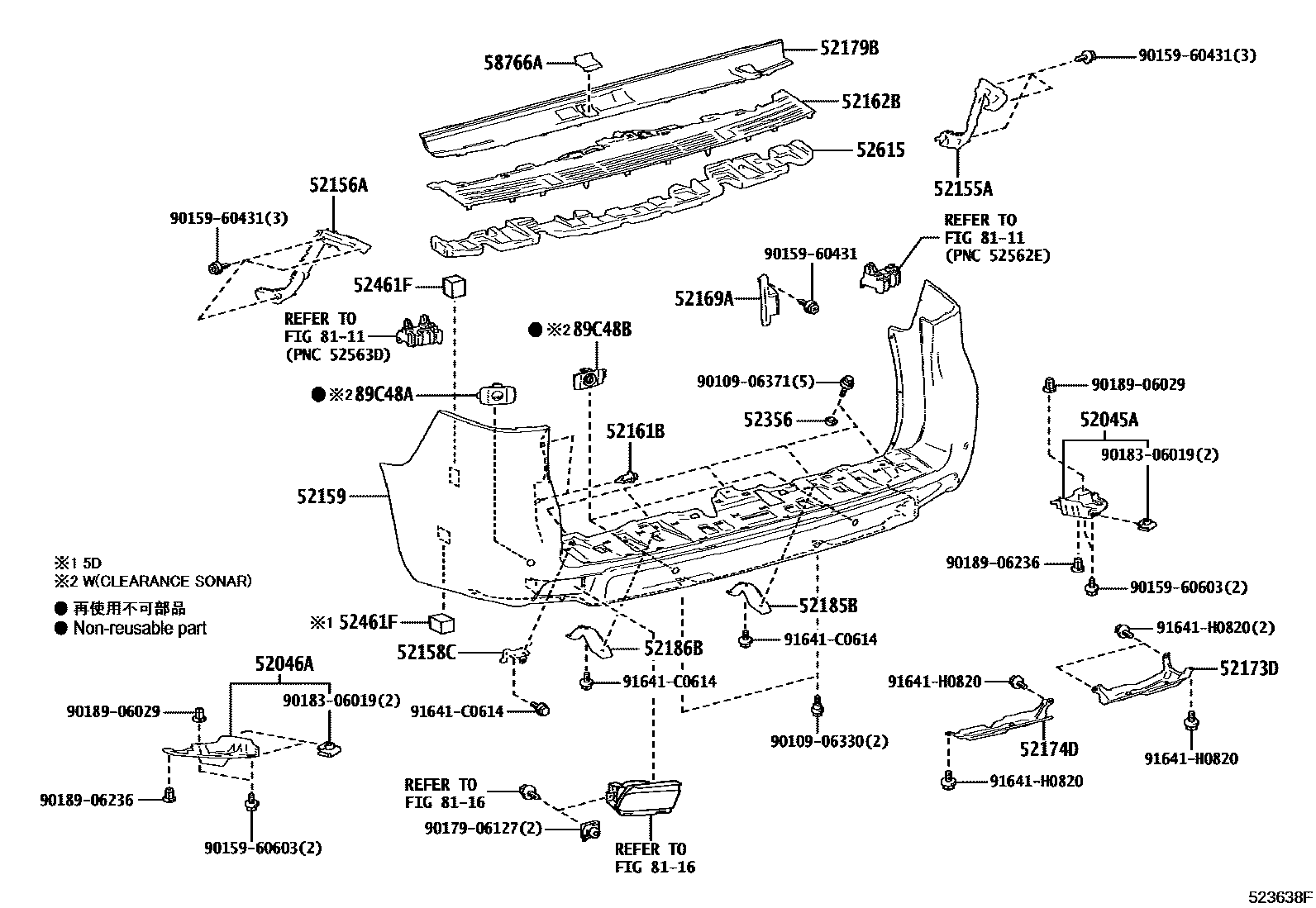

REAR BUMPER & BUMPER STAY
52045APROTECTOR SUB-ASSY, REAR BUMPER, RH
52046APROTECTOR SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
CLEARANCE & BACK SONAR-WITH(FRONT & REAR); PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR ONLY)
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52169ASUPPORT, REAR BUMPER SIDE, NO.3
BLACK
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52179BPLATE, REAR BUMPER BAR
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52356CUSHION, REAR BUMPER STEP
52461FPAD, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
58766ACOVER, JACK BOX HOLE
8111REAR COMBINATION LAMP
8116REAR FOG LAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
SUPER WHITE 2,040,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),WHITE PEARL CS.,070,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),WHITE PEARL CS.,070,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),WHITE PEARL CS.,070,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),SILVER ME.,1F7,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),SILVER ME.,1F7,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),SILVER ME.,1F7,LH
GRAY ME.,1G3,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACK,202,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACK,202,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACK,202,LH
ATTITUDE BLACK MC.,218,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RED M.M.,3R3,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RED M.M.,3R3,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),RED M.M.,3R3,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),AVANT-GARDE BRONZE ME.,4V8,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),AVANT-GARDE BRONZE ME.,4V8,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),AVANT-GARDE BRONZE ME.,4V8,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),VINTAGE BROWN PEARL CS.,4X4,LH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),VINTAGE BROWN PEARL CS.,4X4,LH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),VINTAGE BROWN PEARL CS.,4X4,LH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),SUPER WHITE 2,040,RH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),SUPER WHITE 2,040,RH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),SUPER WHITE 2,040,RH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),WHITE PEARL CS.,070,RH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),WHITE PEARL CS.,070,RH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),WHITE PEARL CS.,070,RH
SILVER ME.,1F7,RH
GRAY ME.,1G3,RH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACK,202,RH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACK,202,RH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACK,202,RH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),ATTITUDE BLACK MC.,218,RH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),ATTITUDE BLACK MC.,218,RH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),ATTITUDE BLACK MC.,218,RH
IRELAND SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221,RH; MALTA SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221,RH; UNITED KINGDOM SPEC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221,RH
RED M.M.,3R3,RH
AVANT-GARDE BRONZE ME.,4V8,RH
VINTAGE BROWN PEARL CS.,4X4,RH
9010906330
main90109-06330
9010906371
main90109-06371
9015960431
main90159-60431
9015960603
main90159-60603
9017906127
main90179-06127
9018306019
main90183-06019
9018906029
main90189-06029
9018906236
main90189-06236
91641C0614
main91641-C0614
91641H0820
main91641-H0820
32 parts on this diagram · 1 diagram in section
