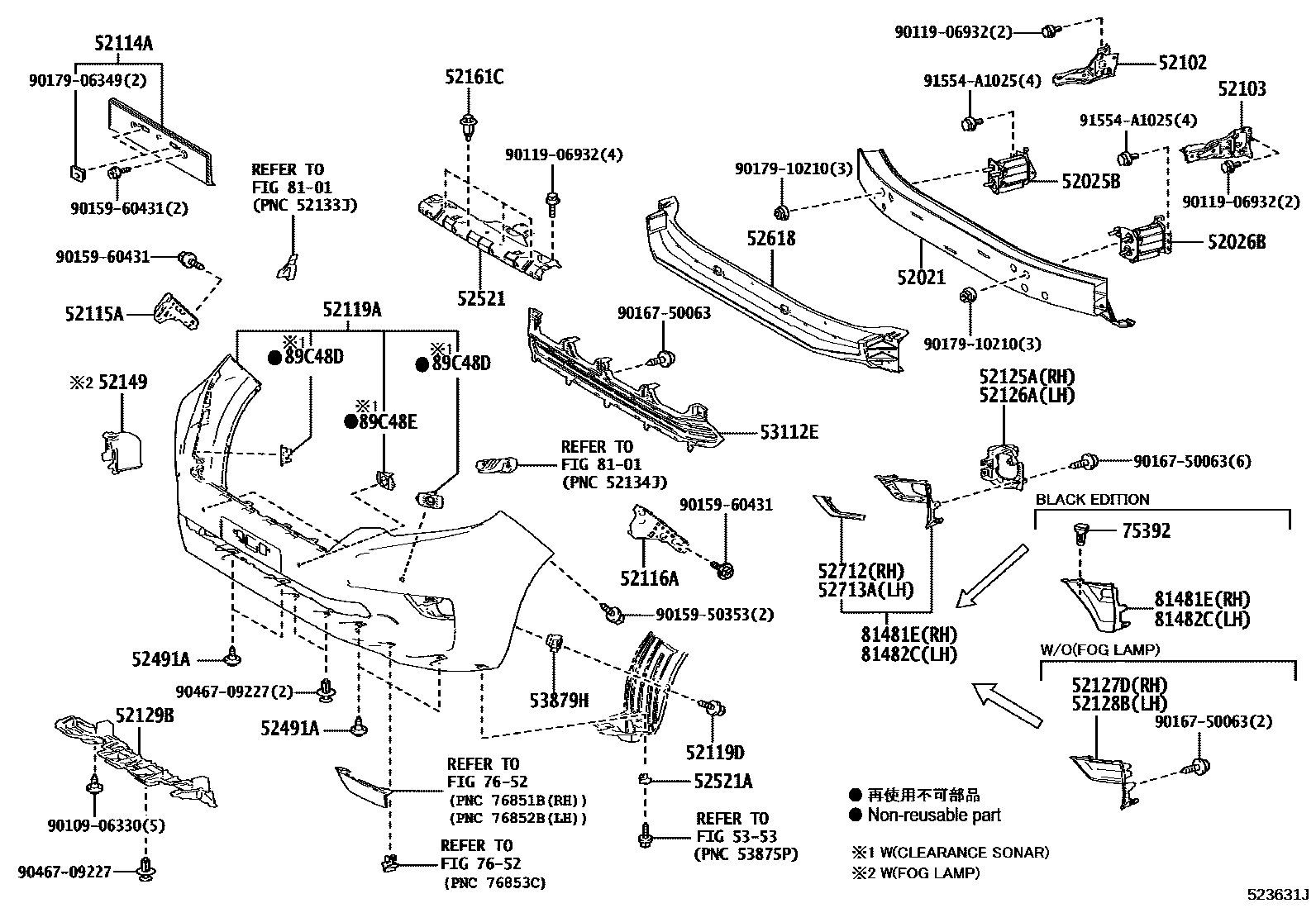

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52102BRACKET SUB-ASSY, FRONT BUMPER, RH
52103BRACKET SUB-ASSY, FRONT BUMPER, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
PAINT REQ.,IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.,MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.,MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE& BACK SONAR-WITH(FRONT & REAR)
IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
52126ABRACKET, FOG LAMP MOUNTING, LH
IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE& BACK SONAR-WITH(FRONT & REAR)
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52149BRACKET, FRONT BUMPER, INNER
IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE& BACK SONAR-WITH(FRONT & REAR)
52161CPIECE, FRONT BUMPER
sub52161-0K040
52491ABOLT, BUMPER PAD
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52618ABSORBER, FRONT BUMPER, LOWER
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
53112EGRILLE, RADIATOR, LOWER NO.1
5353
53879HRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE& BACK SONAR-WITH(FRONT & REAR)
7652
8101
81481ECOVER, FOG LAMP, RH
IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE& BACK SONAR-WITH(FRONT & REAR)
81482CCOVER, FOG LAMP, LH
IRELAND SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MALTA SPEC&MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)
MAT BLACK EDITION&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(BLACK BEZEL)&CLEARANCE& BACK SONAR-WITH(FRONT & REAR)
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
9010906330
main90109-06330
9011906932
main90119-06932
9015950353
main90159-50353
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9017910210
main90179-10210
9046709227
main90467-09227
91554A1025
main91554-A1025
42 parts on this diagram · 1 diagram in section
