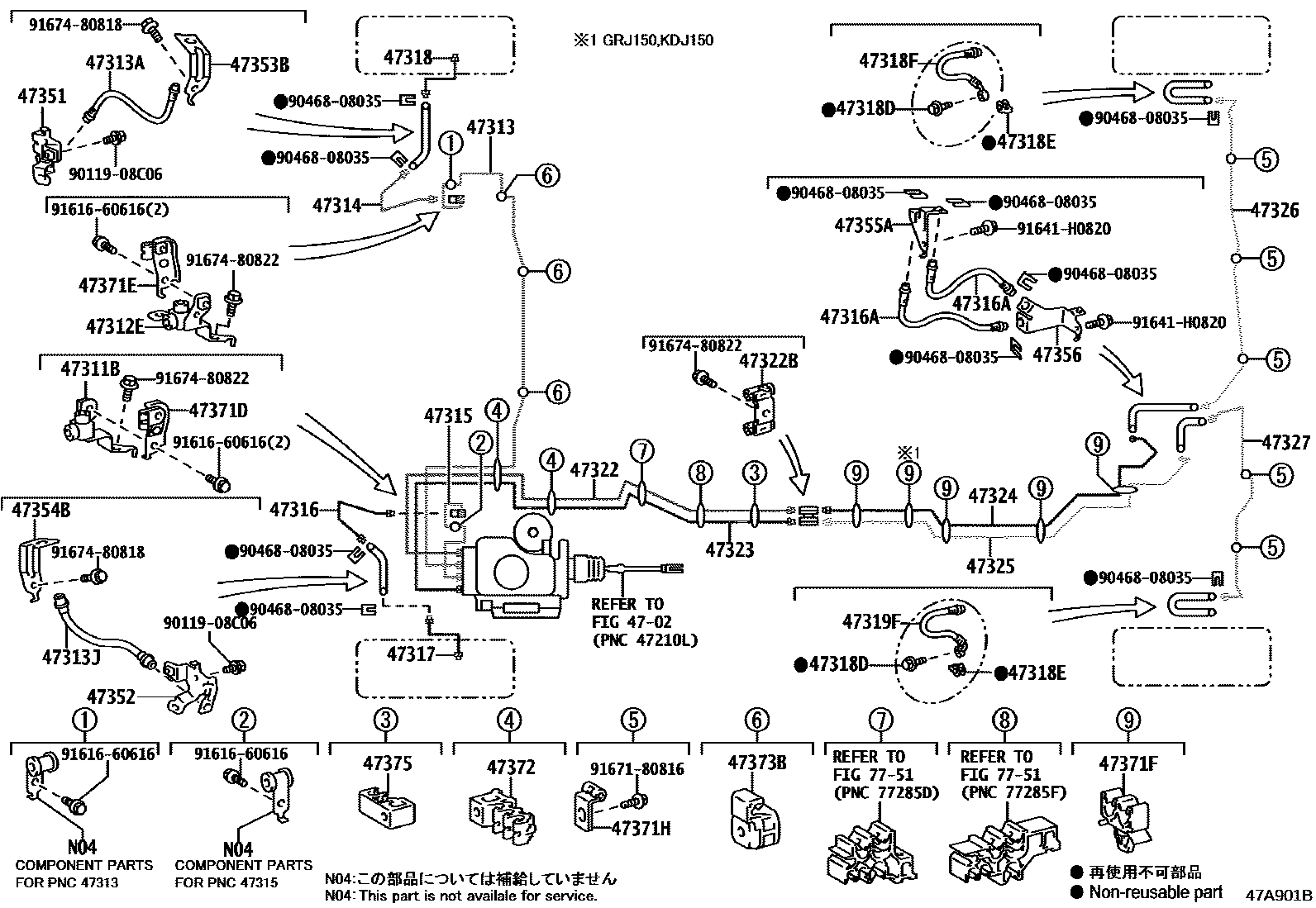

BRAKE TUBE & CLAMP

0001 1EXCEPT EURO 6 0002 1EURO 6 0003 1 0004 1 0005 1BRAKE TUBE 0006 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10281iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47312TUBE, FRONT BRAKE, NO.2

main47312-3D320iTRJ150201708-202312

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10282iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47313TUBE, FRONT BRAKE, NO.3

main47313-60461iGDJ15#,KDJ150..RHD201708-202312

main47313-60471iTRJ150201708-202312

main47313-60481iGDJ15#,GRJ150,KDJ150..LHD201708-202312

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J01iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J01iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47314TUBE, FRONT BRAKE, NO.4

main47314-60301iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47315TUBE, FRONT BRAKE, NO.5

main47315-35480iTRJ150201708-202312

main47315-60571iGDJ15#,GRJ150,KDJ150..LHD201708-202312

main47315-60680iGDJ15#,KDJ150..RHD201708-202312

47316TUBE, FRONT BRAKE, NO.6

main47316-60631iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02H20×2iGDJ15#,GRJ150,KDJ150,TRJ150201708-202008

main90947-02J85×2iGDJ155202008-202311

47317TUBE, FRONT BRAKE, NO.7

main47317-60210iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47318TUBE, FRONT BRAKE, NO.8

main47314-60380iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H17supersedes 90947-02H93iGDJ15#,GRJ150,KDJ150..EUR; GDJ150,GRJ150,TRJ150..RUS201708-202312

UKRAINE SPEC

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H18supersedes 90947-02H94iGDJ15#,GRJ150,KDJ150..EUR; GDJ150,GRJ150,TRJ150..RUS201708-202312

UKRAINE SPEC

47322TUBE, REAR BRAKE, NO.2

main47322-35A20iTRJ150201708-202312

main47322-60B01iGDJ150..RUS;GRJ150,KDJ150..LHD201708-202312

main47322-60C60iGDJ15#..LHD..EUR201708-202312

main47322-60D50iKDJ150..RHD201708-201906

main47322-60D70iGDJ15#..RHD201708-202008

main47322-60E00iGDJ15#..RHD202008-202312

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10283iGRJ150,KDJ150;GDJ150,TRJ150..RUS201708-202312

main90412-10305iGDJ150..EUR201708-202312

47323TUBE, REAR BRAKE, NO.3

main47323-35300iTRJ150201708-202312

main47323-60861iGDJ150..RUS;GRJ150,KDJ150..LHD201708-202312

main47323-60B10iGDJ15#..LHD..EUR201708-202312

main47323-60C40iKDJ150..RHD201708-201906

main47323-60C60iGDJ15#..RHD201708-202312

47324TUBE, REAR BRAKE, NO.4

main47324-60421iGDJ150..LHD..6FC..EUR; GRJ150,KDJ150;GDJ150,TRJ150..RUS201708-202010

EXHAUST EMISSION CONTROL-EURO 5

main47324-60422iGDJ150..LHD..6FC..EUR; GRJ150;GDJ150,TRJ150..RUS202010-202312

EXHAUST EMISSION CONTROL-EURO 4

main47324-60460iGDJ150..EUR201708-202010

main47324-60461iGDJ150..EUR202010-202312

main47324-60470iGDJ155201708-202010

main47324-60471iGDJ155202010

47325TUBE, REAR BRAKE, NO.5

main47325-60381iGDJ150..LHD..6FC..EUR; GRJ150,KDJ150;GDJ150,TRJ150..RUS201708-202010

EXHAUST EMISSION CONTROL-EURO 5

main47325-60382iGDJ150..LHD..6FC..EUR; GRJ150;GDJ150,TRJ150..RUS202010-202312

EXHAUST EMISSION CONTROL-EURO 4

main47325-60420iGDJ150..EUR201708-202010

main47325-60421iGDJ150..EUR202010-202312

main47325-60430iGDJ155201708-202010

main47325-60431iGDJ155202010

47326TUBE, REAR BRAKE, NO.6

main47326-60371iGDJ15#,GRJ150,KDJ150,TRJ150201708-202010

main47326-60372iGDJ15#,GRJ150,TRJ150202010-202312

47327TUBE, REAR BRAKE, NO.7

main47327-60231iGDJ15#,GRJ150,KDJ150,TRJ150201708-202010

main47327-60232iGDJ15#,GRJ150,TRJ150202010-202312

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-60350iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-60210iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-60150iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-60140iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-60200iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main47355-60210iGDJ155201708

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-60031iGDJ150,GRJ150,TRJ150201708-202312

47371DCLAMP, BRAKE TUBE, NO.8

main47371-60160iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47371ECLAMP, BRAKE TUBE, NO.9

main47371-60170iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47371FCLAMP, BRAKE TUBE, NO.10

main90469-07019×4iGDJ150..EUR; GRJ150,KDJ150;GDJ150,TRJ150..RUS201708-202312

47371HCLAMP, BRAKE TUBE, NO.12

main90461-08639×5iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C95iGDJ15#,GRJ150,KDJ150..LHD; TRJ150;GDJ15#,KDJ150..RHD201708-202312

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E27×3iGDJ15#,KDJ150..RHD201708-202312

main90949-01E29×3iGDJ15#,GRJ150,KDJ150..LHD201708-202312

47375CLAMP, BRAKE TUBE, NO.5

main77299-32030iGRJ150,KDJ150;GDJ150,TRJ150..RUS201708-202312

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908C06

main90119-08C06

9046808035

main90468-08035

9161660616

main91616-60616

91641H0820

main91641-H0820

9167180816

main91671-80816

9167480818

main91674-80818

9167480822

main91674-80822

45 parts on this diagram · 6 diagrams in section
