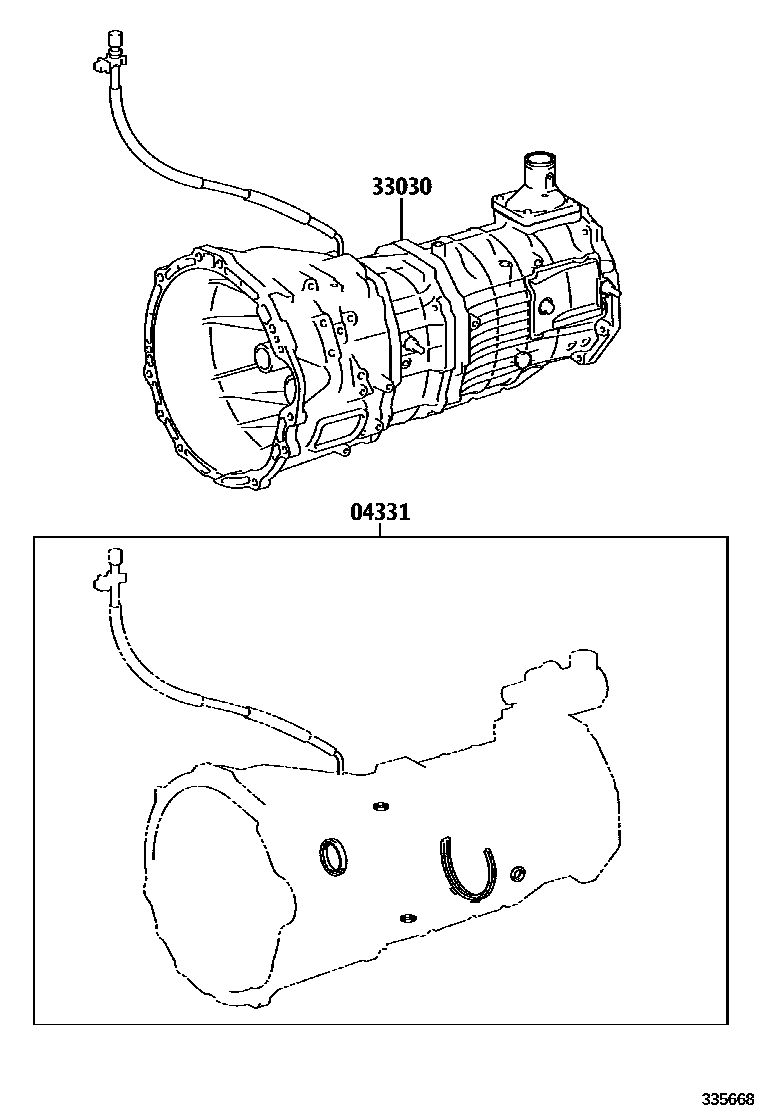

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60290i201708-202312

main04331-60411i201708-202312

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-60C21i201708-202312

R150F

main33030-60C40i201708-202312

RA61F

2 parts on this diagram · 2 diagrams in section
