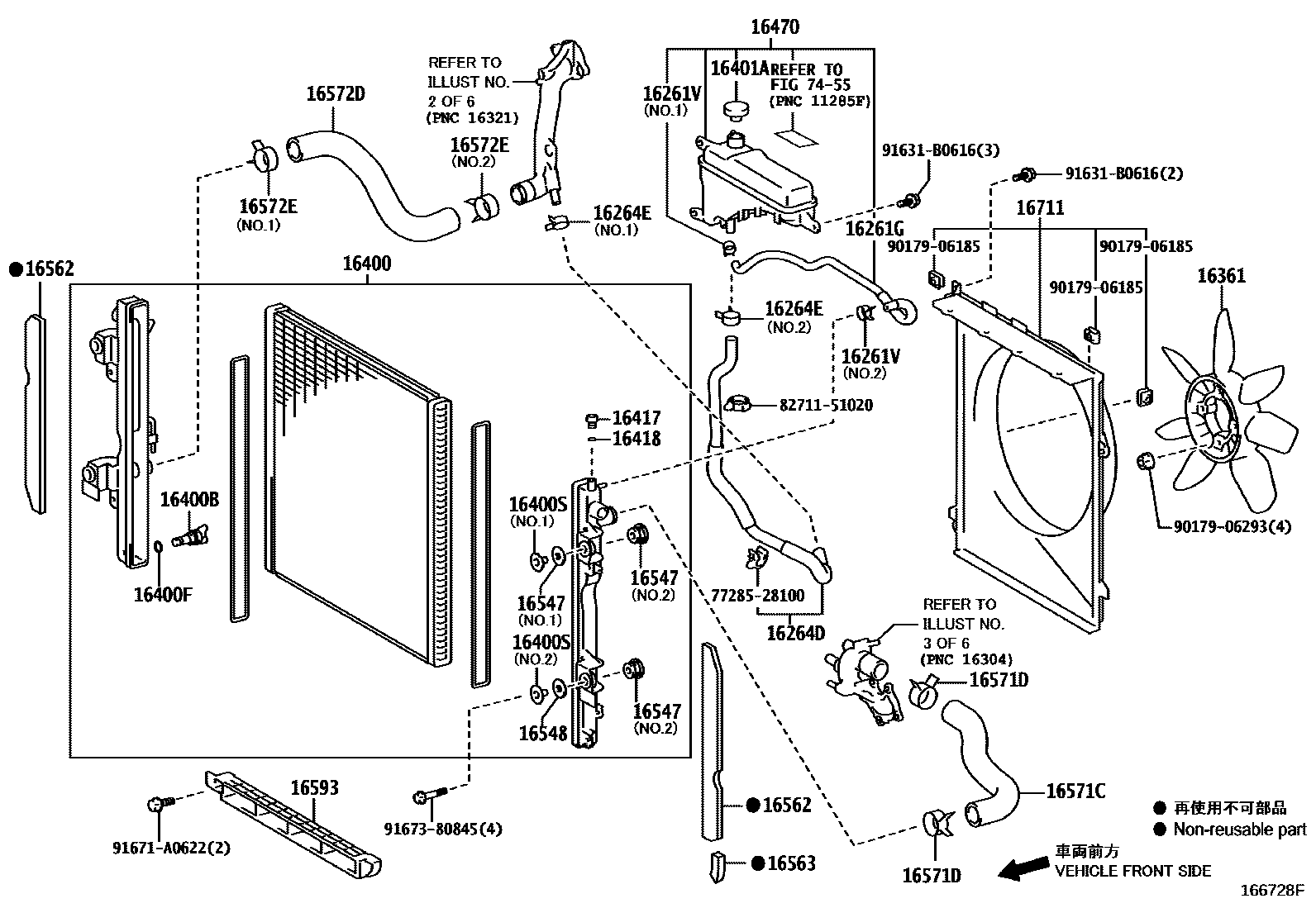

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
ECUADOR SPEC
16261GHOSE, WATER BY-PASS, NO.1
16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H); MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
ECUADOR SPEC,NO.1; NO.1
NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.3
NO.1
main96138-42101×4i1GDFTV..GDJ15#..EUR; 1GDFTV..GDJ150..LHD..6F; 1GDFTV..GDJ150..LHD..6FC..EUR; 1GDFTV..GDJ150..RUS202307-202312
EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H),NO.3; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H),NO.3; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H),NO.3; NO.3
16361FAN
16400RADIATOR ASSY
UKRAINE SPEC
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16400SCOLLAR(FOR RADIATOR)
NO.2
NO.1
16401CAP SUB-ASSY, RADIATOR
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16547BUSH, RADIATOR SUPPORT, NO.1
NO.1
NO.2
16548BUSH, RADIATOR SUPPORT, NO.2
16562SEAL, RADIATOR TO SUPPORT, NO.2
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
UKRAINE SPEC
EXHAUST EMISSION CONTROL-EURO 5
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
16593GUIDE, RADIATOR AIR, NO.1
16711SHROUD, FAN
7455CAUTION PLATE
7728528100BRACKET, FUEL TUBE
main77285-28100
8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-51020
9017906185
main90179-06185
9017906293
main90179-06293
91631B0616
main91631-B0616
91671A0622
main91671-A0622
9167380845
main91673-80845
36 parts on this diagram · 19 diagrams in section
