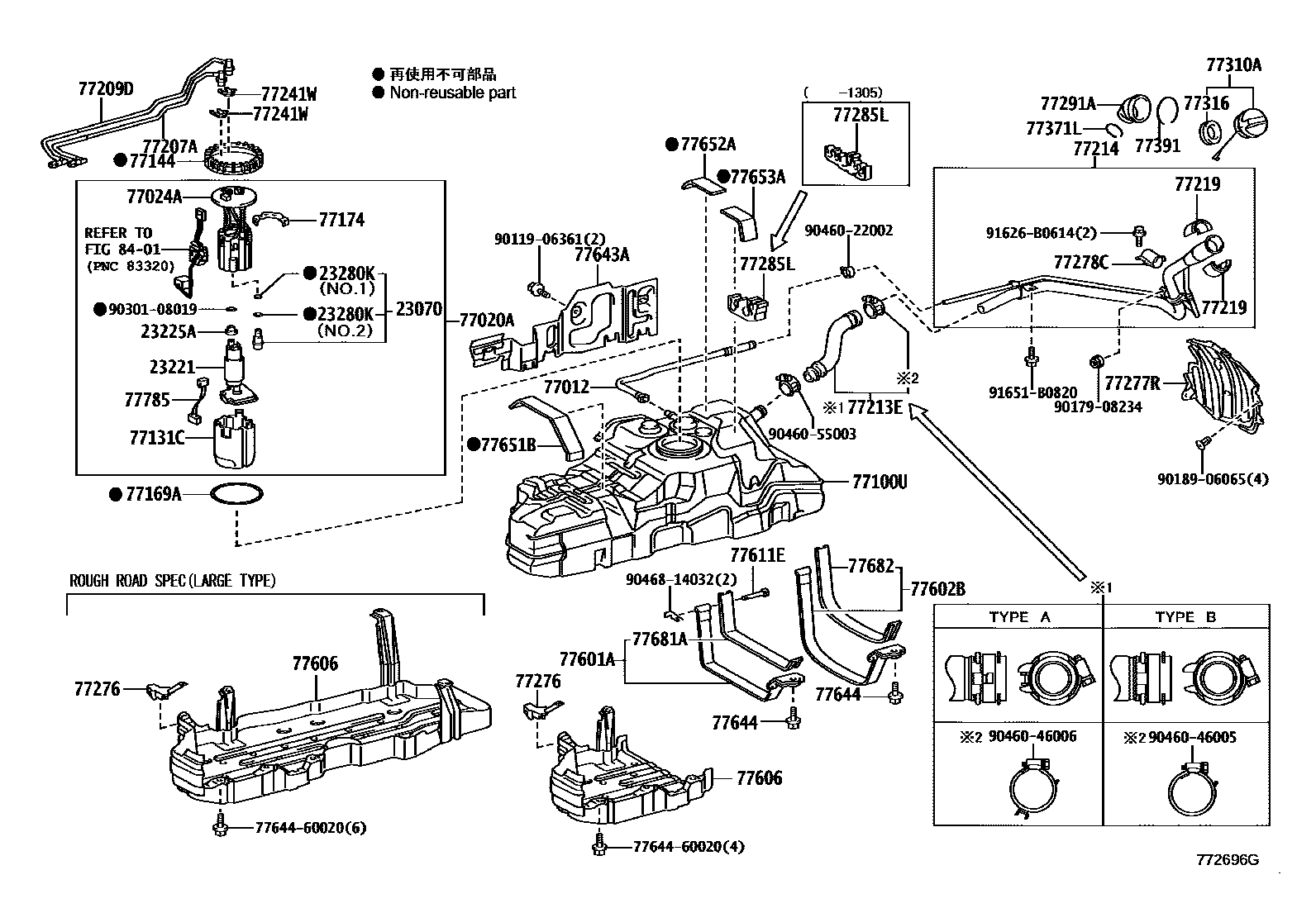

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31010i1GRFE..GRJ150..RHD200908-201110

23221PUMP, FUEL

main23220-31430i1GRFE..GRJ150..RHD200908-201110

23225ASPACER, FUEL PUMP

main23225-23010i1GRFE..GRJ150201308-201506

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1GRFE..GRJ150201308-201506

NO.1

main90301-15024i1GRFE..GRJ150201308-201506

NO.2

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-60200iGRJ150..RHD200908-201110

main77012-60201iGDJ150,GRJ150,KDJ150201606

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-60410iGRJ150..LHD200908-201308

main77020-60411iGRJ150201506

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60260iGRJ150..RHD200908-201110

77100UTANK SUB-ASSY, FUEL

main77001-35A30iGRJ150201506-201610

main77001-35A31iGRJ150201611

main77001-35A70iKDJ155201206-201308

main77001-60641iKDJ155200908-201206

main77001-60A30iKDJ150201308-201506

77131CSUB-TANK, FUEL, NO.1

main77131-60090iGRJ150..RHD200908-201110

77144RETAINER, FUEL PUMP GAUGE

main77144-35010iGRJ150..RHD200908-201110

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30050iKDJ150201308-201506

main77169-35010iGRJ150200908-201001

main77169-47030iGRJ150..LHD201002-201308

77174SUPPORT, FUEL SUCTION, NO.1

main77174-60020iGRJ150201506

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-60100iGRJ150201506-201708

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-35430iKDJ150200908-201308

main77209-60530iGRJ150..LHD200908-201308

main77209-60760iGDJ150201506

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-60360iGRJ150..RHD201005-201110

TYPE A:REFER ILLUST.

main77213-60380iKDJ155200908-201308

main77213-60390iGDJ150,GRJ150,KDJ150201506

TYPE B:REFER ILLUST.

77214PIPE, FUEL TANK FILLER

main77210-60090iKDJ150201505-201506

main77210-60100iGRJ150201506

main77210-60130iKDJ150200908-201308

main77210-60140iGRJ150201308-201505

77219COVER, FUEL TANK FILLER PIPE

main77219-52040×2iGRJ150..RHD200908-201110

77241WCLIP, TUBE JOINT

main77241-33011×2iGRJ150; KDJ150201308-201506

NO.2

main77241-35450iKDJ150200908-201308

NO.1

main77241-60320×2iGRJ150; KDJ150200908-200911

NO.2

77276PROTECTOR, FUEL HOSE

main77276-35040iGRJ150,KDJ150201308-201506

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-35040iKDJ155200908-201308

main77277-60150iGRJ150..RHD200908-201110

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77277-52020iGRJ150,KDJ150200908-200911

main77277-60190iGRJ150..RHD200912-201110

77285LCLAMP, FUEL TUBE, NO.1

main77285-35620iGRJ150..RHD200908-201110

main77285-35770iGDJ150,GRJ150,KDJ150201506

main77285-60480×2iKDJ155201506-201607

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60130iKDJ150;GRJ150..LHD200908-201308

main77291-60140iKDJ155201308-201506

77310ACAP ASSY, FUEL TANK

main77300-52030iKDJ155201506-201607

77316GASKET, FUEL TANK CAP

main77316-52040iKDJ15#;GRJ150..LHD200908-201308

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iGRJ150,KDJ15#201308-201506

77391RING, FUEL INLET BOX

main77391-12060iGRJ150..RHD200908-201110

main77391-33030iKDJ155200908-201308

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60340iGRJ150..RHD200908-201110

main77601-60400iGDJ150,GRJ150,KDJ150201606

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60120iGRJ150..RHD200908-201110

main77602-60150iGDJ150,GRJ150,KDJ150201606

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60150iGDJ155201506

main77606-60190supersedes 77606-60200iKDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506

FUEL TANK PROTECTOR-ROUGH ROAD SPEC(LARGE TYPE)

77611EPIN, FUEL TANK BAND

main77653-35040×2iGRJ150..RHD200908-201110

77643APROTECTOR, FUEL TANK, NO.3

main77643-35020iKDJ150;GRJ150..LHD200908-201308

main77643-35040iGDJ150,GRJ150,KDJ150201602

77644BOLT, FUEL TANK

main77644-35030×2iKDJ150;GRJ150..LHD200908-201308

77651BCUSHION, FUEL TANK

main77651-35070iGRJ150..RHD200908-201110

77652ACUSHION, FUEL TANK, NO.2

main77652-35060iGRJ150,KDJ150201308-201506

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iKDJ150;GRJ150..LHD200908-201308

77681ASEAT, FUEL TANK BAND

main77681-60210iGRJ150,KDJ150201308-201506

77682SEAT, FUEL TANK BAND, LH

main77681-35041iGRJ150,KDJ150201308-201506

77785HARNESS, FUEL PUMP

main77785-60020iGRJ150..RHD200908-201110

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7764460020BOLT, FUEL TANK

main77644-60020

9011906361

main90119-06361

9017908234

main90179-08234

9018906065

main90189-06065

9030108019

main90301-08019

9046022002

main90460-22002

9046046005

main90460-46005

9046046006

main90460-46006

9046055003

main90460-55003

9046814032

main90468-14032

91626B0614

main91626-B0614

91651B0820

main91651-B0820

52 parts on this diagram · 10 diagrams in section
