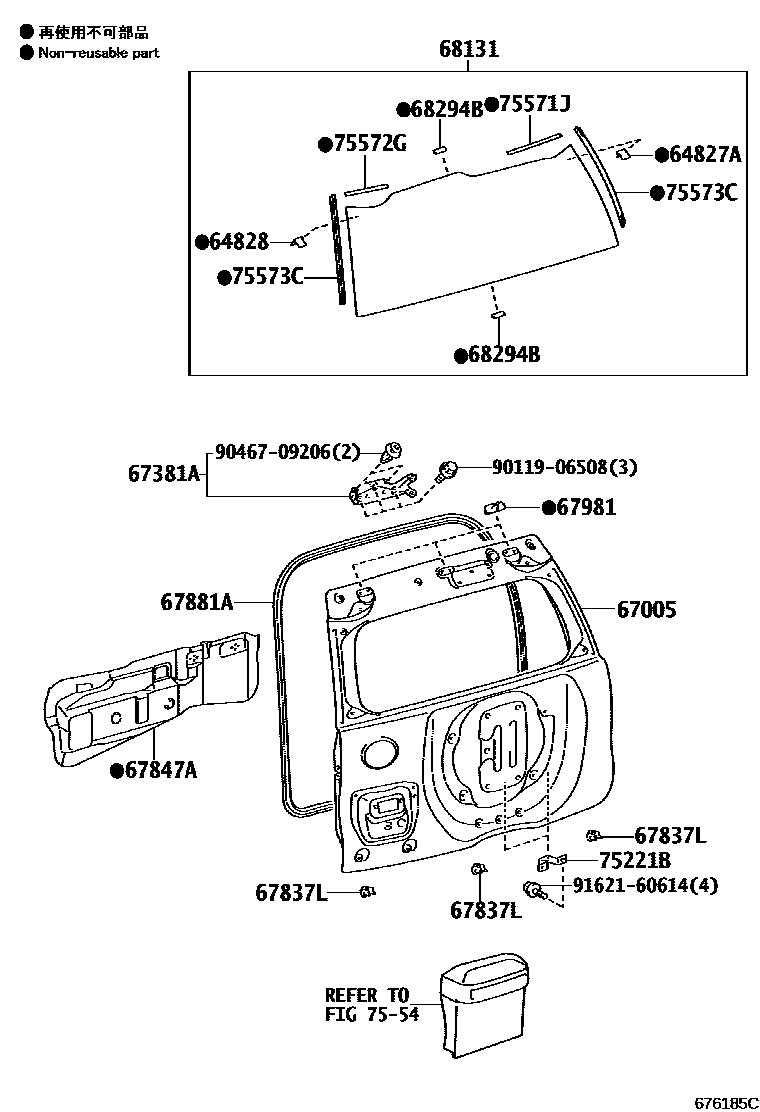

BACK DOOR PANEL & GLASS

64827ACLIP, BACK WINDOW GLASS, RH

main64827-60060i200908-201607

64828CLIP, BACK WINDOW GLASS, LH

main64828-60060i200908-201607

67005PANEL SUB-ASSY, BACK DOOR

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP&BACK MONITOR-WITH(WITH/GUIDE)

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)

main67005-60F50i200908-201308

SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR)

main67005-60F50i200908-201110

main67005-60F70i200908-201708

sub67005-60F71

main67005-60F90i201308-201708

*242&SPARE TIRE-WITHOUT

main67005-60F90i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITO

main67005-60F90i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT

main67005-60F90i201308-201708

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

PORTUGAL SPEC&TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201708

PORTUGAL SPEC&SPARE TIRE-WITHOUT

main67005-60F90i201308-201708

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

GERMANY SPEC&TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201708

GERMANY SPEC&SPARE TIRE-WITHOUT

main67005-60F90i201308-201708

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

SLOVENIA SPEC&TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201708

SLOVENIA SPEC&SPARE TIRE-WITHOUT

main67005-60F90i201308-201708

VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201708

SPARE TIRE-WITHOUT

main67005-60F90i201308-201708

*242&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACKMONITOR-WITH

main67005-60F90i201506-201708

*242&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACKMONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

*242&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201506-201708

*242&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI-TELLAIN MONITOR)

main67005-60F90i201308-201708

*242&TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201506

*242&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACKMONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

*242&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITO

main67005-60F90i201308-201506

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

RUMANIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201506

RUMANIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

RUMANIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201506

RUMANIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

RUMANIA SPEC&TX-L PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH

main67005-60F90i201308-201506

RUMANIA SPEC&SPARE TIRE-WITHOUT

main67005-60F90i201308-201506

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

main67005-60F90i201308-201506

VX PACKAGE&SPARE TIRE-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR)

67381ABRACKET, BACK WINDOW WIPER MOTOR, NO.1

main67381-60080i200908-201607

67837LSEAL, DOOR DUST PROOF

main67837-60070i200908-201607

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-60090i200908-201110

main67847-60090i200908-201506

SPARE TIRE-WITHOUT

main67847-60100i200908-201212

main67847-60120i201212-201607

67881AWEATHERSTRIP, BACK DOOR

main67881-60140i200908-201111

sub67881-60141

main67881-60141i201112-201607

67981STIFFENER, BACK DOOR, NO.2

main67981-60010i200908-201607

68131GLASS, BACK DOOR

main68105-60190i201308-201506

*242&SPARE TIRE-WITHOUT

main68105-60190i200908-201506

SPARE TIRE-WITHOUT

main68105-60190i201308-201506

SLOVENIA SPEC&SPARE TIRE-WITHOUT

main68105-60190i201308-201506

GERMANY SPEC&SPARE TIRE-WITHOUT

main68105-60190i201308-201506

PORTUGAL SPEC&SPARE TIRE-WITHOUT

main68105-60190i201308-201506

HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT

main68105-60190i201308-201506

RUMANIA SPEC&SPARE TIRE-WITHOUT

main68105-60190i200908-201110

main68105-60200i200908-201607

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030i200908-201607

75221BBRACKET, TOOL BOX

main75221-60010i200908-201607

7554

75571JMOULDING, BACK WINDOW OUTSIDE, UPPER RH

main75571-60020i200908-201708

75572GMOULDING, BACK WINDOW OUTSIDE, UPPER LH

main75572-60020i200908-201708

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-60100i200908-201708

main75573-60110i201308-201708

GERMANY SPEC&SPARE TIRE-WITHOUT

main75573-60110i200908-201708

SPARE TIRE-WITHOUT

main75573-60110i200908-201308

SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP

main75573-60110i200908-201308

SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER

main75573-60110i201308-201708

*242&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOROVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201708

*242&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOROVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201708

*242&SPARE TIRE-WITHOUT

main75573-60110i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201708

HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT

main75573-60110i201308-201708

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201708

PORTUGAL SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201708

PORTUGAL SPEC&SPARE TIRE-WITHOUT

main75573-60110i201308-201708

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201708

GERMANY SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201506

RUMANIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201506

RUMANIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201506

RUMANIA SPEC&SPARE TIRE-WITHOUT

main75573-60110i201308-201708

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201708

SLOVENIA SPEC&VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201708

SLOVENIA SPEC&SPARE TIRE-WITHOUT

main75573-60110i201308-201708

VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main75573-60110i201308-201708

VX PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

main75573-60110i201308-201708

TX-L PACKAGE&SPARE TIRE-WITHOUT&REAR QUARTER GLASS-PRIVACY(DARK GRAY)

9011906508

main90119-06508

9046709206

main90467-09206

9162160614

main91621-60614

18 parts on this diagram · 4 diagrams in section
