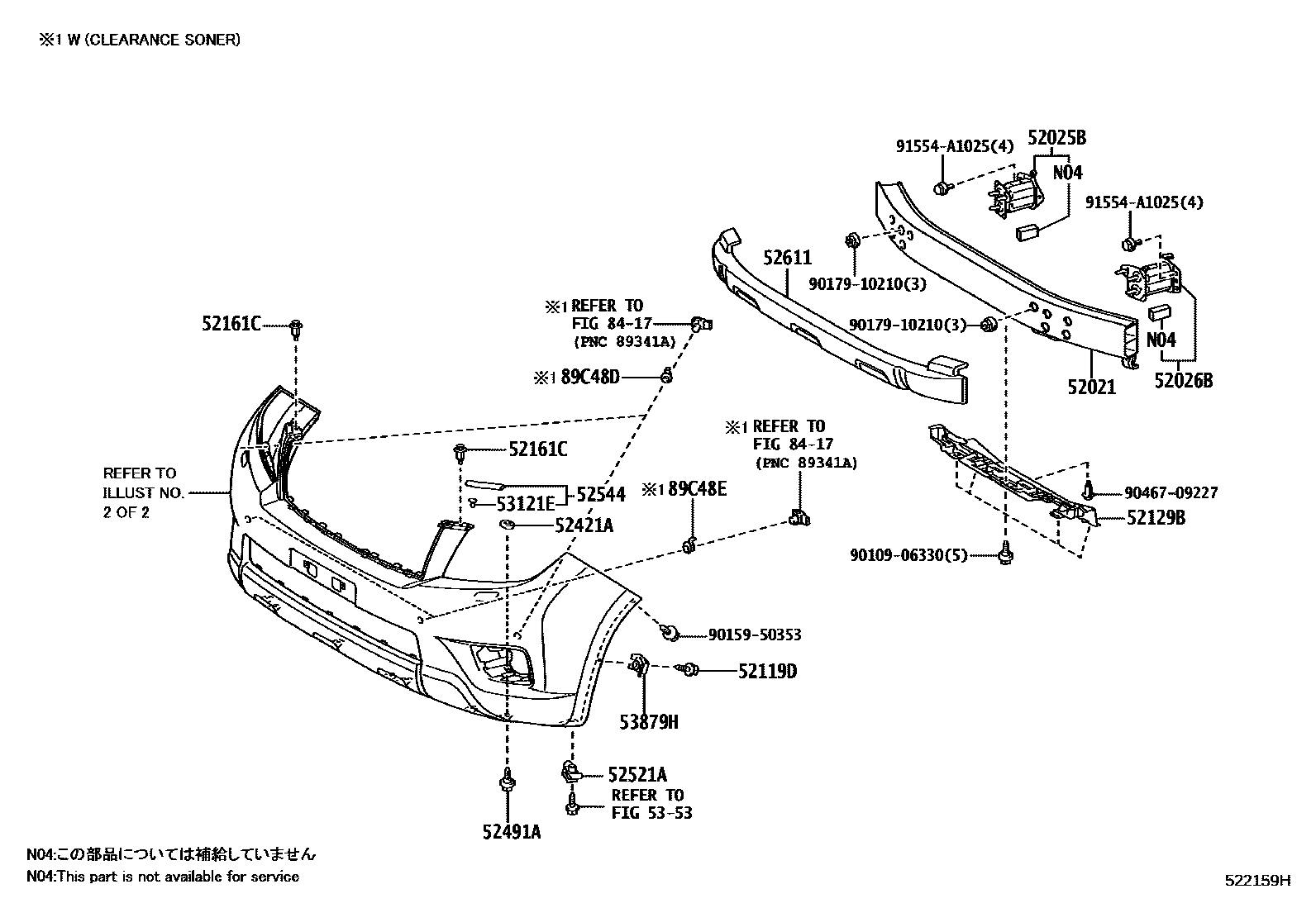

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52119DSCREW, NO.1
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
52491ABOLT, BUMPER PAD
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52544SEAL, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
53121ECLIP(FOR FRONT BUMPER), NO.1
5353HOOD & FRONT FENDER
53879HRETAINER, FRONT FENDER LINER
8417CLEARANCE & BACK SONAR
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-33100-A0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),SUPER WHITE 2,040; SUPER WHITE 2,040
main89348-33100-A1×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),WHITE PEARL CS.,070; WHITE PEARL CS.,070
main89348-33100-B0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),SILVER ME.,1F7; SILVER ME.,1F7
main89348-33100-B1×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),GRAY ME.,1G3; GRAY ME.,1G3
main89348-33100-B2×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK. STEEL MC.,1H2; DK. STEEL MC.,1H2
main89348-33100-C0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),ATTITUDE BLACK MC.,218
main89348-33100-C4×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),BLACK,202; BLACK,202
main89348-33100-D0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),RED M.M.,3R3; RED M.M.,3R3
main89348-33100-E8×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),BRONZE M.M.,4T3; BRONZE M.M.,4T3
main89348-33100-G1×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201608
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK.GREEN MC.,6V4; DK.GREEN MC.,6V4
main89348-33100-L0×2iGDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201608-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),VINTAGE BROWN PEARL CS.,4X4; VINTAGE BROWN PEARL CS.,4X4
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK.BLUE MC.,8S6
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),SUPERWHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),WHITEPEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),SILVERME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),DK. STEELMC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,DK. STEEL MC.,1H2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BLACKISH RED MC.,3R0
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BEIGEME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BEIGE ME.,4T8
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GREENM.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,GREEN M.M.,6V2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,GRAYISH BLUE ME.,8R3
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
main89348-33100-A0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),SUPER WHITE 2,040; SUPER WHITE 2,040
main89348-33100-A1×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),WHITE PEARL CS.,070; WHITE PEARL CS.,070
main89348-33100-B0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),SILVER ME.,1F7; SILVER ME.,1F7
main89348-33100-B1×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),GRAY ME.,1G3; GRAY ME.,1G3
main89348-33100-B2×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK. STEEL MC.,1H2; DK. STEEL MC.,1H2
main89348-33100-C0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),ATTITUDE BLACK MC.,218
main89348-33100-C4×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),BLACK,202; BLACK,202
main89348-33100-D0×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),RED M.M.,3R3; RED M.M.,3R3
main89348-33100-E8×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),BRONZE M.M.,4T3; BRONZE M.M.,4T3
main89348-33100-G1×2iGDJ155,KDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150,KDJ155; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201506-201608
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK.GREEN MC.,6V4; DK.GREEN MC.,6V4
main89348-33100-L0×2iGDJ155; GRJ150; KDJ150..LHD;GDJ15#,GRJ150; KDJ150..LHD;GDJ150,GRJ150; KDJ150..RHD201608-201708
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4; AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),VINTAGE BROWN PEARL CS.,4X4; VINTAGE BROWN PEARL CS.,4X4
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6; AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK.BLUE MC.,8S6
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),SUPERWHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),WHITEPEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),WHITE PEARL CS.,070; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),SILVERME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),DK. STEEL MC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),DK. STEELMC.,1H2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,DK. STEEL MC.,1H2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACKISH RED MC.,3R0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BLACKISH RED MC.,3R0
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BEIGEME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BEIGE ME.,4T8; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BEIGE ME.,4T8
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GREENM.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GREEN M.M.,6V2; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,GREEN M.M.,6V2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GRAYISH BLUE ME.,8R3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,GRAYISH BLUE ME.,8R3
9010906330
main90109-06330
9015950353
main90159-50353
9017910210
main90179-10210
9046709227
main90467-09227
91554A1025
main91554-A1025
23 parts on this diagram · 4 diagrams in section
