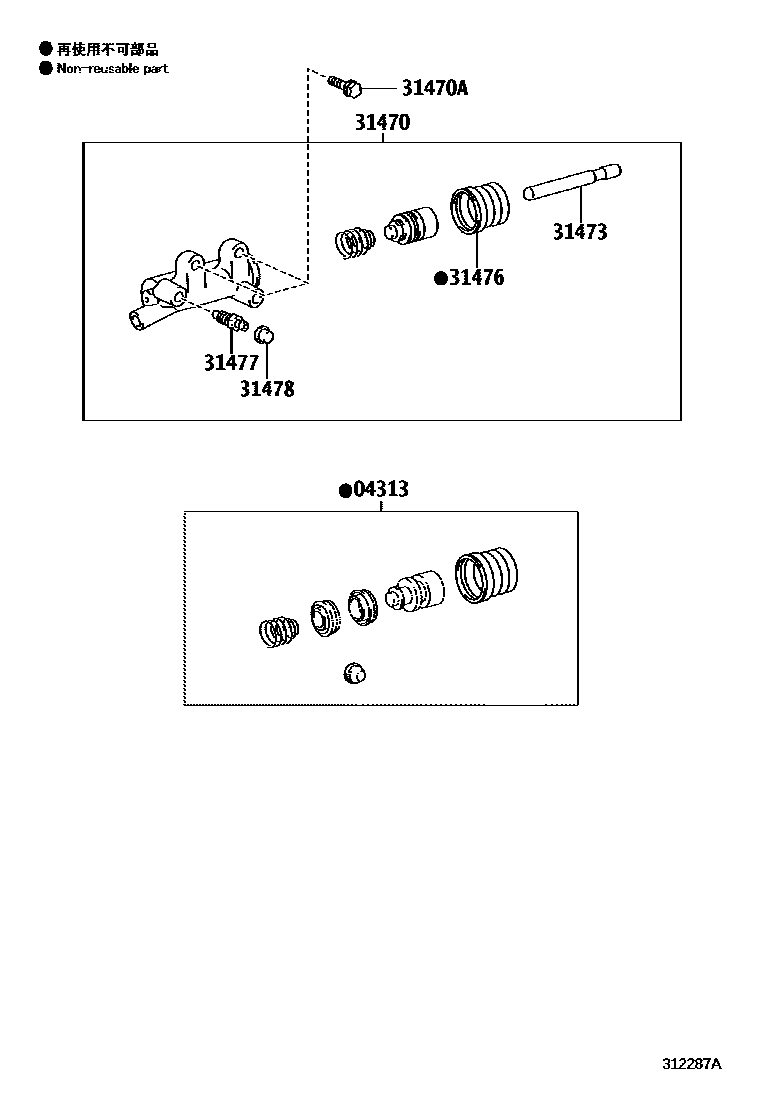

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53040iKDJ15#..6F200908-201308

main04313-53041iKDJ15#..6F201505-201506

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60350iKDJ15#..6F200908-201308

main31470-60390iKDJ15#..6F201505-201506

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iKDJ15#..6F200908-201308

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60141iKDJ15#..6F200908-201308

main31473-60190iKDJ15#..6F201505-201506

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKDJ15#..6F200908-201308

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKDJ15#..6F200908-201308

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKDJ15#..6F200908-201308

7 parts on this diagram · 1 diagram in section
