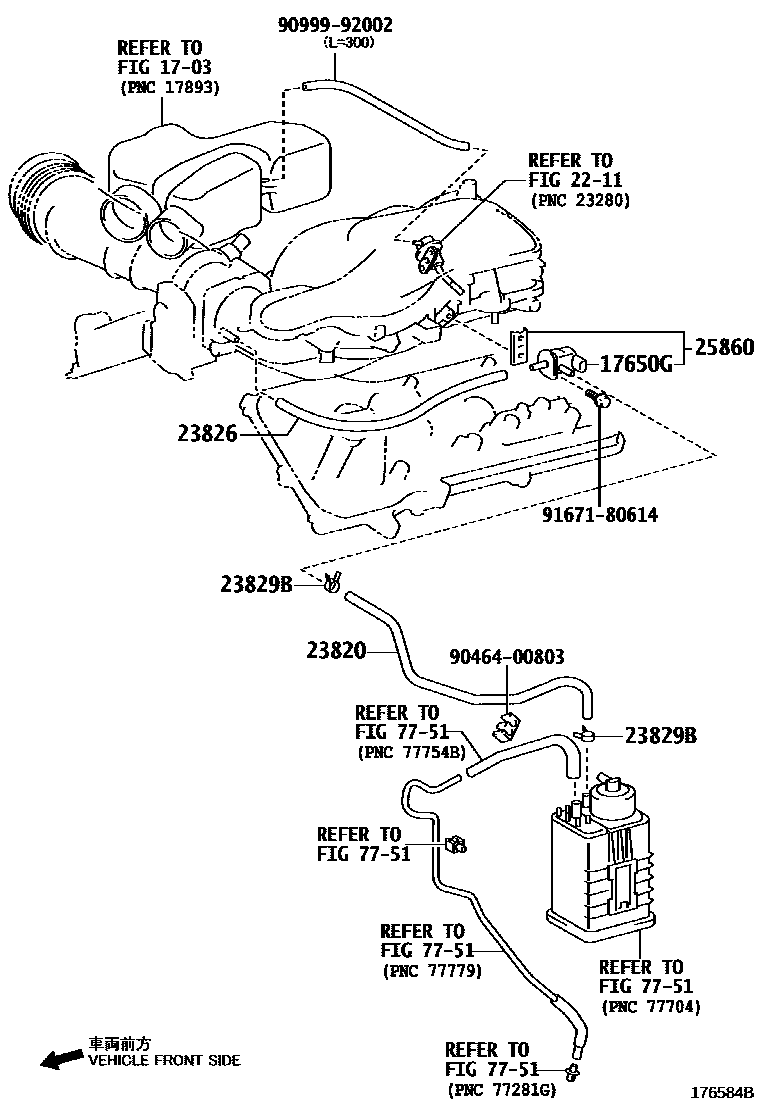

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0006 1FOR EURO 5 OR EURO 5+ CONFORM

1703AIR CLEANER

→ Go to FIG 17-03

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GRJ150201210-201308

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31200i1GRFE..GRJ150..LHD200908-201308

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31160i1GRFE..GRJ150201506

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×2i1GRFE..GRJ150..RHD200908-201110

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i1GDFTV..GDJ15#201506

NO.1

main25860-30160i1GDFTV..GDJ15#201506

NO.2

main25860-36020i1GRFE..GRJ150201210-201308

main90910-12089i1GDFTV..GDJ15#201506

NO.3

main25860-30110i1KDFTV..KDJ15#201010-201012

ENGINE-FOR EURO 5 CONFORMITY,NO.1

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046400803

main90464-00803

9099992002

main90999-92002

9167180614

main91671-80614

11 parts on this diagram · 5 diagrams in section
