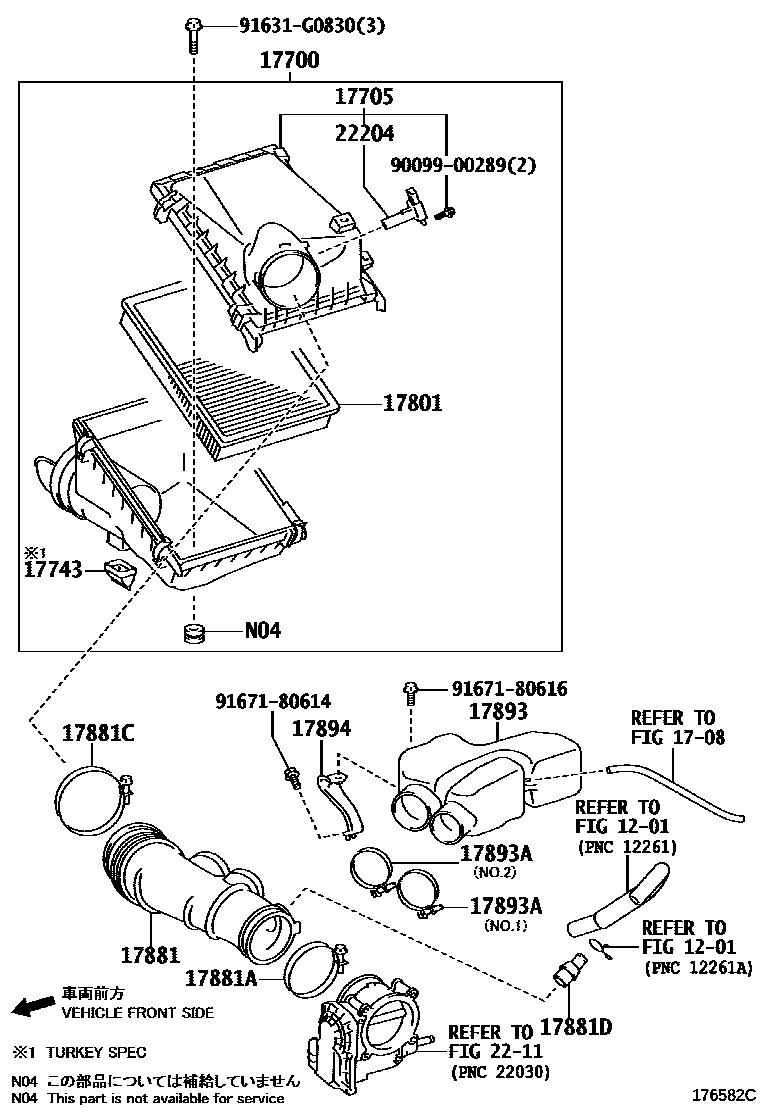

AIR CLEANER

0001 1 0002 1W/(PRE COOLER) 0003 1W/O(PRE COOLER) 0004 1 0006 1FOR EURO 5 OR EURO 5+ CONFORM

1201

1708

17700CLEANER ASSY, AIR

main17700-1B060i1GDFTV..GDJ15#201506

main17700-30270i1KDFTV..KDJ155200908-201607

main17700-31840i1GRFE..GRJ150200908-201105

sub17700-31841

main17700-31841i1GRFE..GRJ150201106-201107

sub17700-31842

main17700-31842i1GRFE..GRJ150..RHD201107-201506

17705CAP SUB-ASSY, AIR CLEANER

main17705-11630i1GDFTV..GDJ15#201506

main17705-30170i1KDFTV..KDJ150200908-201607

main17705-31370i1GRFE..GRJ150200908-201105

sub17705-31371

main17705-31371i1GRFE..GRJ150201106-201506

17743VALVE, DUST RELIEF

main17743-75010i1KDFTV..KDJ15#200908-201607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-11130i1GDFTV..GDJ15#201506

main17801-30080i1KDFTV..KDJ155200908-201607

main17801-38050i1GRFE..GRJ150200908-201107

sub17801-38051

main17801-38051i1GRFE..GRJ150201107-201506

17881HOSE, AIR CLEANER, NO.1

main17881-11600i1GDFTV..GDJ15#201506

main17881-30140i1KDFTV..KDJ150200908-201607

main17881-31250i1GRFE..GRJ150..LHD200908-201506

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-30800i1GDFTV..GDJ15#201506

NO.1

main96111-30830i1KDFTV..KDJ155200908-201607

main96111-30830i1KDFTV..KDJ150201506

NO.2

main96111-30900i1GRFE..GRJ150200908-201506

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-31060i1GRFE..GRJ150..RHD200908-201506

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i1GRFE..GRJ150..RHD200908-201506

17893RESONATOR, INTAKE AIR

main17893-31130i1GRFE..GRJ150..RHD200908-201506

17893ACLAMP, HOSE

main96111-10650i1GRFE..GRJ150200908-201002

NO.1

main96111-10690i1GRFE..GRJ150..RHD201003-201506

NO.1

main96111-10750i1GRFE..GRJ150..RHD200908-201506

NO.2

17894BRACKET, RESONATOR

main17894-31050i1GRFE..GRJ150200908-201506

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1GRFE..GRJ150..LHD201106-201308

MARK 22204-0T040

sub22204-28010

main22204-0V010i1GRFE..GRJ150201106-201506

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1GRFE..GRJ150..RHD201106-201308

MARK 22204-0V020

main22204-28010i1GRFE..GRJ150..LHD201106-201506

MARK 22204-28010

main22204-30020i1KDFTV..KDJ15#200908-201607

main22204-30030i1GDFTV..GDJ15#201506

main22204-37010i1GRFE..GRJ150200908-201106

sub22204-28010

9009900289

main90099-00289

91631G0830

main91631-G0830

9167180614

main91671-80614

9167180616

main91671-80616

19 parts on this diagram · 5 diagrams in section
