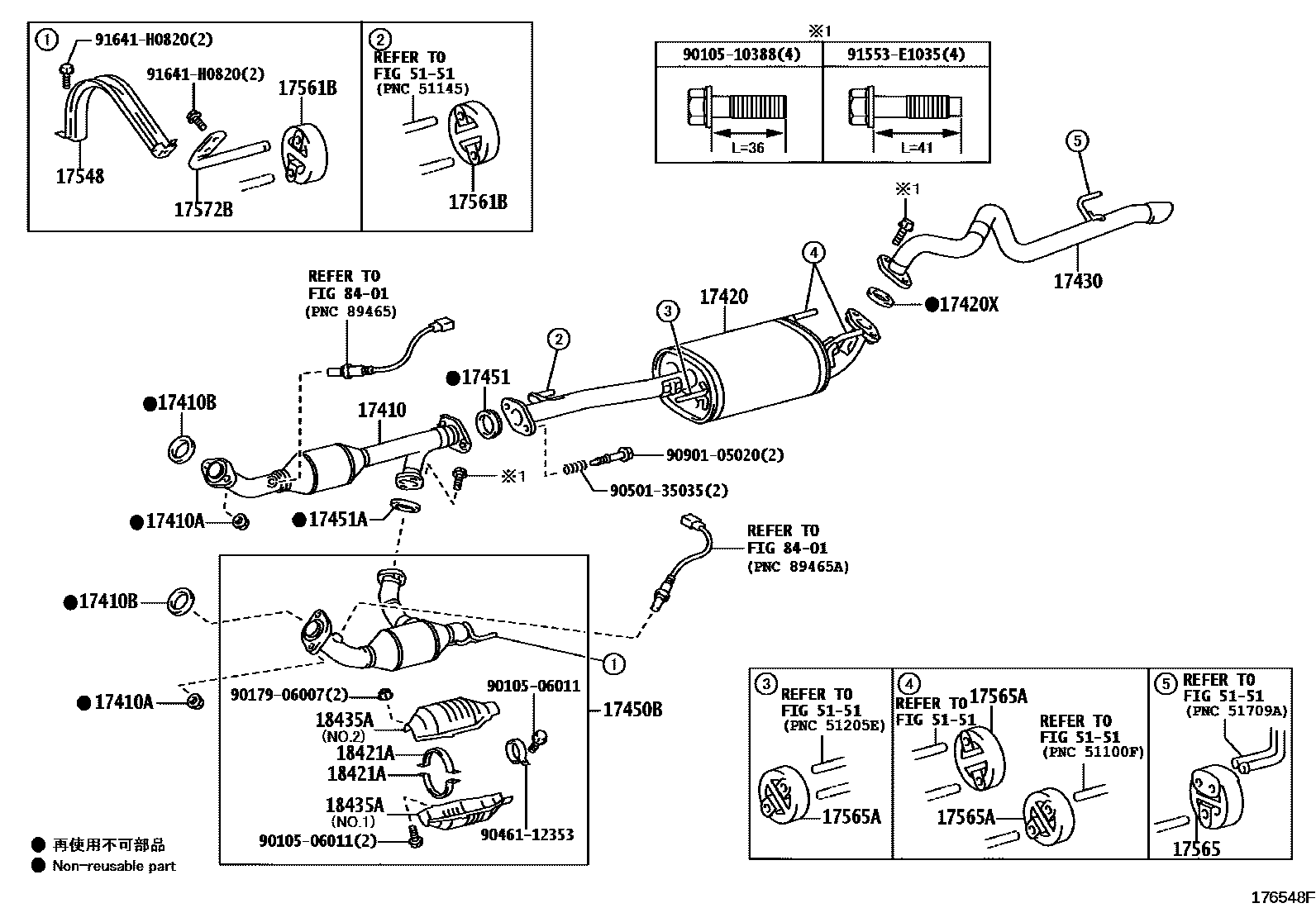

17410PIPE ASSY, EXHAUST, FRONT

main17410-30190i201308-201506

*114=TOYOTA/ZB1/Y

main17410-30200i201308-201506

*114=TOYOTA/ZB9/Y

main17410-30260i200908-201202

*114=TOYOTA/AG4/Y

main17410-30261i201506

*114=TOYOTA/AG4/Y

main17410-30360i201506

*114=*416

main17410-31A10i200908-201308

*114=TOYOTA/TB7/Y

main17410-11A00i201506

RUSSIA SPEC; SERBIA,MONTENEGRO SPEC; UKRAINE SPEC

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i201308-201506

ENGINE-FOR EURO 4 CONFORMITY

17410BGASKET, EXHAUST PIPE

main17451-22070i201506

main90917-06089×2i200908-201110

main90917-06090i201506

17420PIPE ASSY, EXHAUST, CENTER

main17420-30180i200908-201308

main17420-30190i200908-201308

main17420-30300i201506

main17420-30310i201506

main17420-31340i201308-201404

main17420-31360i201405-201506

main17420-11520i201506

RUSSIA SPEC; SERBIA,MONTENEGRO SPEC; UKRAINE SPEC

main17420-30250supersedes 17420-30180i201012-201308

*242; AZORES,MACEDONIA SPEC; BULGARIA SPEC; CZECHOSLOVAKIA SPEC; ENGLAND SPEC; ESTONIA,LATVIA,LITHUANIA SPEC; GERMANY SPEC; GREECE SPEC; HUNGARY,SLOVAKIA,POLAND SPEC; ICELAND SPEC; IRELAND SPEC; ISRAEL SPEC; MALTA SPEC; MONACO,GIBRALTAR,CANARY ISLANDS SPEC; PORTUGAL SPEC; REUNION,GUIANAN,GUADELOUPE,MARTINIQUE; RUMANIA SPEC; SLOVENIA SPEC; SWEDEN,FINLAND,NORWAY,DENMARK SPEC; TURKEY SPEC

main17420-30260supersedes 17420-30190i201012-201308

*242; AZORES,MACEDONIA SPEC; BULGARIA SPEC; CZECHOSLOVAKIA SPEC; ENGLAND SPEC; ESTONIA,LATVIA,LITHUANIA SPEC; GERMANY SPEC; GREECE SPEC; HUNGARY,SLOVAKIA,POLAND SPEC; ICELAND SPEC; IRELAND SPEC; ISRAEL SPEC; MALTA SPEC; MONACO,GIBRALTAR,CANARY ISLANDS SPEC; PORTUGAL SPEC; REUNION,GUIANAN,GUADELOUPE,MARTINIQUE; RUMANIA SPEC; SLOVENIA SPEC; SWEDEN,FINLAND,NORWAY,DENMARK SPEC; TURKEY SPEC

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06090i200908-201308

17430PIPE ASSY, EXHAUST, TAIL

main17430-30150i201308-201506

main17430-31870i201506

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-31111i200908-201110

*114=TOYOTA/TB8/Y

17451GASKET, EXHAUST PIPE

main17451-28070i200908-200909

main17451-31020i201506

main90917-06090i201506

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06089i200908-201110

17548BRACKET, EXHAUST PIPE STOPPER

main17548-31011i200908-201110

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040×2i200908-201110

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-31050i200908-201110

main17565-74320i201506-201607

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i201308-201506

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-75290i201012-201308

*242; AZORES,MACEDONIA SPEC; BULGARIA SPEC; CZECHOSLOVAKIA SPEC; ENGLAND SPEC; ESTONIA,LATVIA,LITHUANIA SPEC; GERMANY SPEC; GREECE SPEC; HUNGARY,SLOVAKIA,POLAND SPEC; ICELAND SPEC; IRELAND SPEC; ISRAEL SPEC; MALTA SPEC; MONACO,GIBRALTAR,CANARY ISLANDS SPEC; PORTUGAL SPEC; REUNION,GUIANAN,GUADELOUPE,MARTINIQUE; RUMANIA SPEC; SLOVENIA SPEC; SWEDEN,FINLAND,NORWAY,DENMARK SPEC; TURKEY SPEC

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-31110i200908-201110

18421ASTAY, CONVERTER PROTECTOR, LH

main18421-75010×2i200908-201110

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-30010i201308-201506

main18435-31030i201506

NO.2

main18445-31010i201308-201506

NO.1

5151FRAME

→ Go to FIG 51-51
