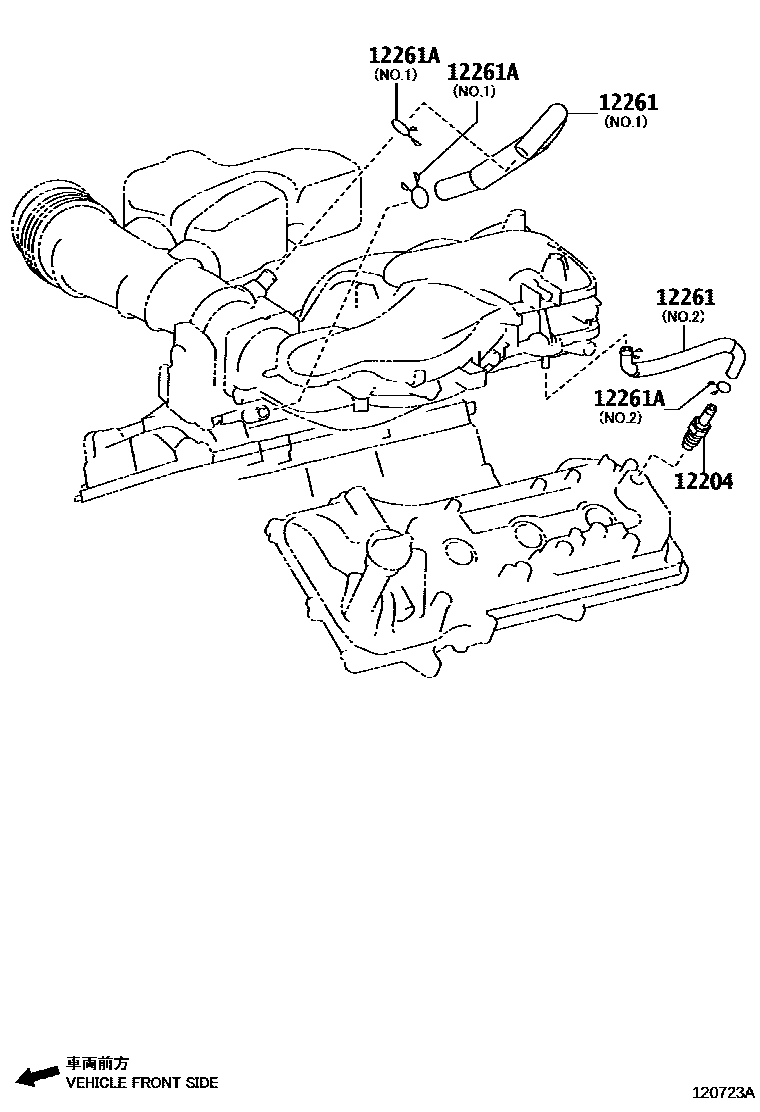

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31110i1GRFE..GRJ150201506

12261HOSE, VENTILATION

main12261-30040i1KDFTV..KDJ150201506

main12261-31130i1GRFE..GRJ150201506

NO.2

main12261-31140i1GRFE..GRJ150..LHD200908-201308

NO.1

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i1GRFE..GRJ150201506

NO.2

main90467-21004×2i1GRFE..GRJ150..RHD200908-201110

NO.1

3 parts on this diagram · 3 diagrams in section
