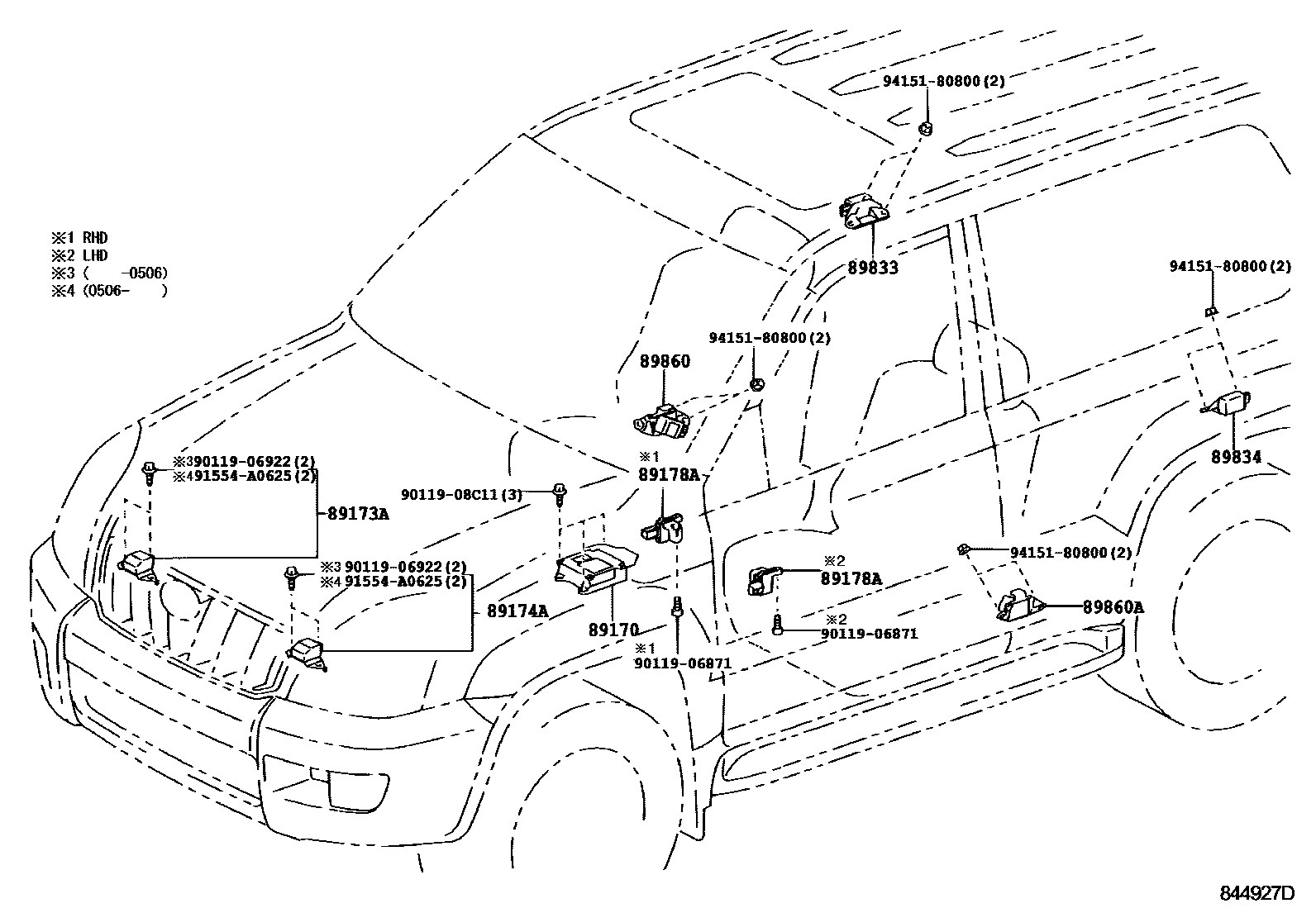

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-60120supersedes 89170-60060iGRJ120,KDJ12#..RHD200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main89170-60130supersedes 89170-60110iGRJ12#,KDJ12#..LHD200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

89173ASENSOR, AIRBAG, FRONT RH

main89173-39335iGRJ12#,KDJ12#200209-200506

MARK=89173-35060

main89173-49405iGRJ12#,KDJ12#200506-200908

MARK=89173-45050

89174ASENSOR, AIRBAG, FRONT LH

main89173-39335iGRJ12#,KDJ12#200209-200506

MARK=89173-35060

main89173-49405iGRJ12#,KDJ12#200506-200908

MARK=89173-45050

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iGRJ12#,KDJ12#..LHD200209

main89178-0W010iGRJ120,KDJ12#..RHD200209

89833SENSOR, AIRBAG, REAR RH

main89833-60010iGRJ120,KDJ120200209

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main89833-60020iGRJ125,KDJ125200209

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

89834SENSOR, AIRBAG, REAR LH

main89833-60010iGRJ120,KDJ120200209

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main89833-60020iGRJ125,KDJ125200209

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-60020iGRJ12#,KDJ12#200209

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-60020iGRJ12#,KDJ12#200209

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

9011906871

main90119-06871

9011906922

main90119-06922

9011908C11

main90119-08C11

91554A0625

main91554-A0625

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
