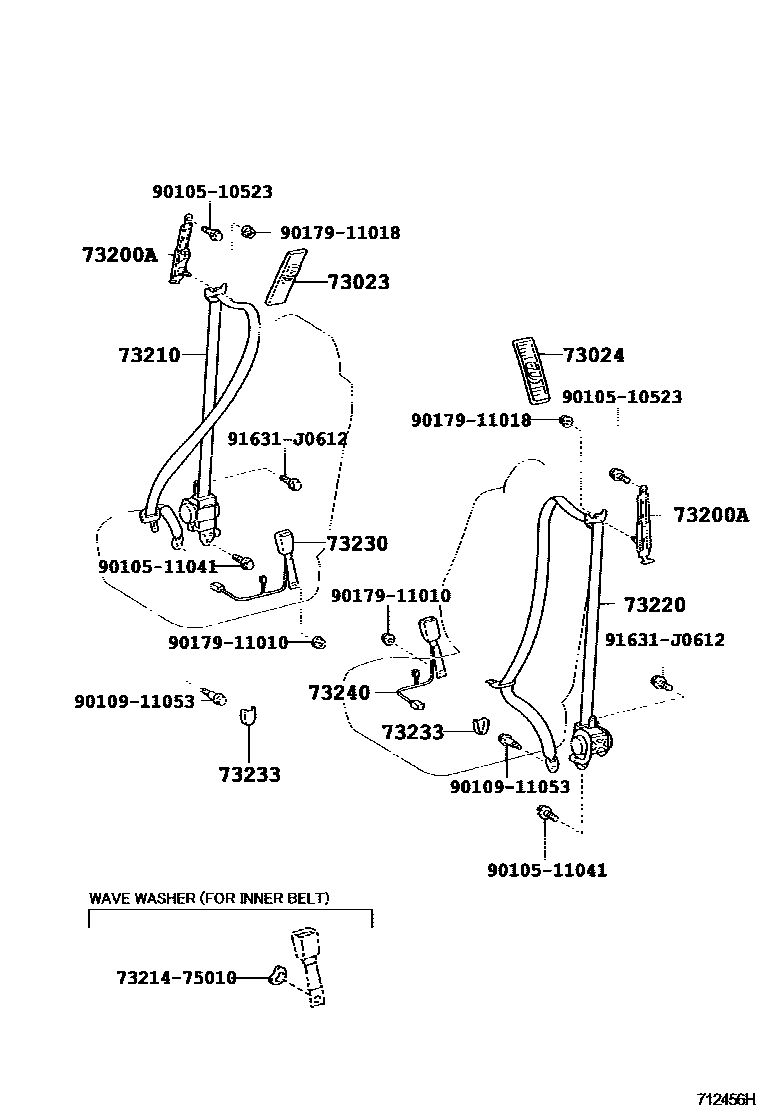

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-30010-A0iGRJ12#,KDJ12#200209-200908

IVORY,TRIM0#

main73023-30010-B4iGRJ12#,KDJ12#200209-200908

MD.GRAY,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-30010-A0iGRJ12#,KDJ12#200209-200908

IVORY,TRIM0#

main73024-30010-B4iGRJ12#,KDJ12#200209-200908

MD.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-30080×2iKDJ12#200209-200301

main73200-60030×2iGRJ12#,KDJ12#200301

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60540-A0iGRJ12#,KDJ12#200209-200303

IVORY,TRIM0#

main73210-60540-B0iGRJ12#,KDJ12#..4FC,5F200304-200908

BLUISH GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60460-A0iGRJ12#,KDJ12#..4FC,5F200304-200908

IVORY,TRIM0#

main73220-60460-B0×2iGRJ12#,KDJ12#200303-200304

BLUISH GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60400-A0iGRJ120,KDJ12#..RHD200209-200908

IVORY,TRIM0#

main73230-60400-B0iGRJ120,KDJ12#..RHD200209-200908

MD.GRAY,TRIM1#

main73240-60360-A0iGRJ12#,KDJ12#..LHD200209-200908

IVORY,TRIM0#

main73240-60360-B0iGRJ12#,KDJ12#..LHD200209-200908

MD.GRAY,TRIM1#

main73230-60420-A0iGRJ120,KDJ120..RHD200408-200908

W(*LEP1) & LEATHER SEAT PACKAGE,IVORY,TRIM0#

main73230-60420-B0iGRJ120,KDJ120..RHD200209-200408

FRONT SEAT-SEPALATE, POWER 8WAY,MD.GRAY,TRIM1#

main73240-60370-A0iGRJ120,KDJ120..LHD200209-200408

FRONT SEAT-SEPALATE, POWER 8WAY,IVORY,TRIM0#

main73240-60370-B0iGRJ120,KDJ120..LHD200209-200408

FRONT SEAT-SEPALATE, POWER 8WAY,MD.GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60010-A0×2iGRJ12#,KDJ12#200209-200908

IVORY,TRIM0#

main73233-60010-B2×2iGRJ12#,KDJ12#200209-200908

MD.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60400-A0iGRJ12#,KDJ12#..LHD200209-200908

IVORY,TRIM0#

main73230-60400-B0iGRJ12#,KDJ12#..LHD200209-200908

MD.GRAY,TRIM1#

main73240-60360-A0iGRJ120,KDJ12#..RHD200209-200908

IVORY,TRIM0#

main73240-60360-B0iGRJ120,KDJ12#..RHD200209-200908

MD.GRAY,TRIM1#

main73230-60420-A0iGRJ120,KDJ120..LHD200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE,IVORY,TRIM0#

main73230-60420-B0iGRJ120,KDJ120..LHD200209-200408

FRONT SEAT-SEPALATE, POWER 8WAY,MD.GRAY,TRIM1#

main73240-60370-A0iGRJ120,KDJ120..RHD200209-200408

FRONT SEAT-SEPALATE, POWER 8WAY,IVORY,TRIM0#

main73240-60370-B0iGRJ120,KDJ120..RHD200209-200408

FRONT SEAT-SEPALATE, POWER 8WAY,MD.GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511041

main90105-11041

9010911053

main90109-11053

9017911010

main90179-11010

9017911018

main90179-11018

91631J0612

main91631-J0612

15 parts on this diagram · 4 diagrams in section
