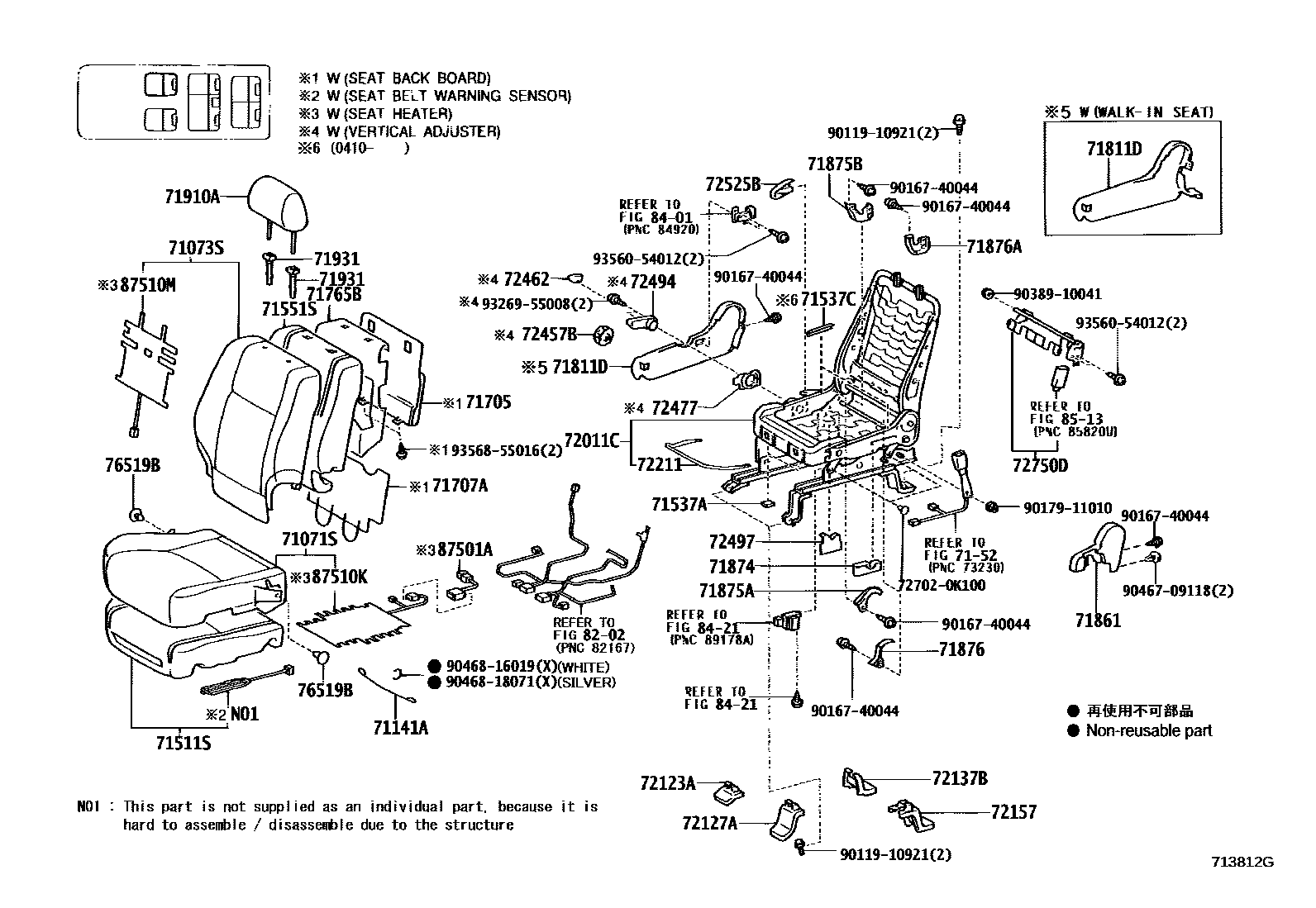

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-6A320-A0i200408-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A320-B0i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A321-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A321-B0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A370-A0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A370-B0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A371-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A371-B0i200610-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A380-A0supersedes 71071-6A390-A0i200209-200908

WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A380-B0supersedes 71071-6A390-B0i200209-200908

WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A400-A0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A400-B0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A401-A0i200610-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A401-B0i200610-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-6A420-A0i200209-200908

WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; WITH(SEAT HEATER),IVORY,TRIM0#

main71071-6A420-B0i200209-200908

WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-6A610-A0i200209-200309

IVORY,TRIM0#

main71073-6A610-B0i200209-200908

MEDIUM GRAY,TRIM1#

main71073-6A540-A0i200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#

main71073-6A540-B0i200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#

main71073-6A570-A0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71073-6A570-B0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-6A571-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71073-6A571-B0i200610-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-6A580-A0i200209-200609

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#

main71073-6A580-B0i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#

main71073-6A581-A0i200610-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#

main71073-6A581-B0i200610-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,MEDIUM GRAY,TRIM1#

main71073-6A590-A0i200209-200908

WITH(SEAT HEATER),IVORY,TRIM0#

main71073-6A590-B0i200209-200908

WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-6A600-A0i200209-200908

WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#

main71073-6A600-B0i200209-200908

WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MEDIUM GRAY,TRIM1#

71141AWIRE, FRONT SEAT CUSHION COVER,

main71141-60080×4i200402-200908

IRELAND N1&REAR SEAT-WITHOUT, WITH(ANCHOR); SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; W(*LEP1) & LEATHER SEAT PACKAGE; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN; WITH(SEAT HEATER); WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60200i200209-200908

main71501-60210i200209-200908

main71501-60160i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER); LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71501-60170i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER); LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71501-60180i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71501-60190i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER); LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

7152SEAT BELT

→ Go to FIG 71-52

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010×4i200209-200908

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-60050×2i200410-200908

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-60400i200209-200309

main71505-60070i200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)

main71551-60360i200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN

main71551-60410i200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-60260-A0×2i200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71705-60260-B0×2i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-60020-A0i200408-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71707-60020-B0i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER),MD.GRAY,TRIM1#

main71707-60050-A1i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71707-60050-B1i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

71765BPROTECTOR, FRONT SEATBACK, RH

main71765-60060i200209-200908

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-60200-A0i200209-200908

IVORY,TRIM0#

main71811-60200-B1i200209-200908

MD.GRAY,TRIM1#

main71811-60210-A0i200209-200908

IVORY,TRIM0#

main71811-60210-B0i200209-200908

MD.GRAY,TRIM1#

main71811-60250-A0i200209-200908

IVORY,TRIM0#

main71811-60250-B1i200209-200908

MD.GRAY,TRIM1#

main71811-60230-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71811-60230-B0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

main71811-60240-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71811-60240-B0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-60100-A0i200209-200908

IVORY,TRIM0#

main71861-60100-B1i200209-200908

MD.GRAY,TRIM1#

main71861-60130-A0i200209-200908

IVORY,TRIM0#

main71861-60130-B1i200209-200908

MD.GRAY,TRIM1#

main71861-60110-A0i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER),IVORY,TRIM0#

main71861-60110-B1i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-58010i200209-200908

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60160-A0i200209-200309

IVORY,TRIM0#

main71875-60160-B1i200209-200908

MD.GRAY,TRIM1#

main71875-58030-A0i200408-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71875-58030-B1i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58060i200209-200908

main71875-58050i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71875-58050-C0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),BLACK; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,BLACK; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),BLACK

main71875-58060-C0i200209-200404

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,BLACK; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-60160-A0i200209-200309

IVORY,TRIM0#

main71876-60160-B1i200209-200309

MD.GRAY,TRIM1#

main71875-60150-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),IVORY,TRIM0#

main71875-60150-B1i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),MD.GRAY,TRIM1#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060i200209-200309

main71876-58050i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71876-58050-C0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK; LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER),BLACK; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,BLACK; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),BLACK

main71876-58060-C0i200209-200404

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,BLACK; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK

71910AHEADREST ASSY, FRONT SEAT

main71910-60590-A0×2i200209-200908

IVORY,TRIM0#

main71910-60590-B0×2i200209-200908

MEDIUM GRAY,TRIM1#

main71910-60640-A0×2i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,IVORY,TRIM0#; W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER),IVORY,TRIM0#

main71910-60640-B0×2i200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN,MEDIUM GRAY,TRIM1#; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER),MEDIUM GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A0×2i200209-200710

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-B6×2i200209-200710

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#

main71930-44020-A0×2i200710-200908

W(LOCK),IVORY,TRIM0#

main71930-44020-B1×2i200710-200908

W(LOCK),MD.GRAY,TRIM1#

main71931-42020-A0×2i200209-200710

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-B6×2i200209-200710

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

main71931-47010-A0×2i200710-200908

W/O(LOCK),IVORY,TRIM0#

main71931-47010-B8×2i200710-200908

W/O(LOCK),MD.GRAY,TRIM1#

72011CADJUSTER SUB-ASSY, FRONT SEAT, RH

main71110-60070i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)

main71110-60150i200209-200309

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)

main71110-60151i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)

main71110-60180supersedes 71110-60050i200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60190supersedes 71110-60060i200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60200i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60240supersedes 71110-60130i200209-200309

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60241supersedes 71110-60131i200309-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60260i200209-200309

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60261i200408-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN

main71110-60290i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)

main71110-60300i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71110-60310i200209-200309

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)

main71110-60311i200309-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)

main71110-60320i200209-200309

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN

main71110-60321i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-60090-A0i200209-200908

IVORY,TRIM0#

main72123-60090-B0i200209-200908

MD.GRAY,TRIM1#

main72123-60080-A0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&REAR SEAT-REMOVABLE,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE,IVORY,TRIM0#

main72123-60080-B0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE,MD.GRAY,TRIM1#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-60050-A0i200209-200908

IVORY,TRIM0#

main72127-60050-B0i200209-200908

MD.GRAY,TRIM1#

main72127-60060-A0i200209-200401

FRONT SEAT-SEPALATE, POWER 8WAY&REAR SEAT-REMOVABLE,IVORY,TRIM0#

main72127-60060-B0i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE,MD.GRAY,TRIM1#

72137BCOVER, SEAT TRACK, RH

main72137-60100-A0×2i200209-200908

IVORY,TRIM0#

main72137-60100-B0×2i200209-200908

MD.GRAY,TRIM1#

main72137-60110-A0×4i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&REAR SEAT-REMOVABLE,IVORY,TRIM0#; LEATHER & BLACK WOOD STEERING PACKAGE,IVORY,TRIM0#

main72137-60110-B0×4i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&REAR SEAT-REMOVABLE,MD.GRAY,TRIM1#; LEATHER & BLACK WOOD STEERING PACKAGE,MD.GRAY,TRIM1#

72157COVER, SEAT TRACK BRACKET, INNER

main72157-60120-A0×2i200209-200908

IVORY,TRIM0#

main72157-60120-B0×2i200209-200908

MD.GRAY,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-60190i200309

main72211-60200i200309

72457BKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-58010-A0i200209-200908

IVORY,TRIM0#

main72457-58010-B2i200209-200908

MD.GRAY,TRIM1#

72462COVER, VERTICAL ADJUSTER RH

main72462-52010-A0i200209-200304

IVORY,TRIM0#

main72462-52010-B2i200209-200304

MD.GRAY,TRIM1#

main72462-58010-A0i200304-200309

IVORY,TRIM0#

main72462-58010-B2i200304-200309

MD.GRAY,TRIM1#

main72462-60010-A0i200309-200908

IVORY,TRIM0#

main72462-60010-B0i200309-200908

MD.GRAY,TRIM1#

72477SPACER, VERTICAL ADJUSTER

main72477-58010i200209-200908

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-60010-A0i200209-200309

IVORY,TRIM0#

main72494-60010-B0i200209-200309

MD.GRAY,TRIM1#

main72494-60020-A0i200309-200908

IVORY,TRIM0#

main72494-60020-B0i200309-200908

MD.GRAY,TRIM1#

72497COVER, VERTICAL ADJUSTER BRACKET, OUTER

main72497-60020i200209-200908

main72497-58010i200209-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main72497-60010i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER); LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

72525BHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-60100-A0i200209-200908

IVORY,TRIM0#

main72525-60100-B1i200209-200908

MD.GRAY,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-48020i200309-200908

main72750-60050i200209-200309

main72750-60090i200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER); LEATHER & BLACK WOOD STEERING PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

76519BCLIP, FRONT SEAT CUSHION COVER

main76519-42010×4i200209-200908

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8421AIR BAG

→ Go to FIG 84-21

8513SEAT MOTOR & SEAT HEATER

→ Go to FIG 85-13

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-60010×2i200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN; WITH(SEAT HEATER); WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-60260i200209-200305

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN; WITH(SEAT HEATER); WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main87510-60370i200305-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-60270i200209-200305

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN; W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER &SIDE & CURTAIN; WITH(SEAT HEATER); WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main87510-60380i200305-200408

W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER); W(*LEP1) & LEATHER SEAT PACKAGE&FRONT SEAT-SEPALATE, POWER 8WAY&WITH(SEAT HEATER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-0K100

9011910921

main90119-10921

9016740044

main90167-40044

9017911010

main90179-11010

9038910041

main90389-10041

9046709118

main90467-09118
