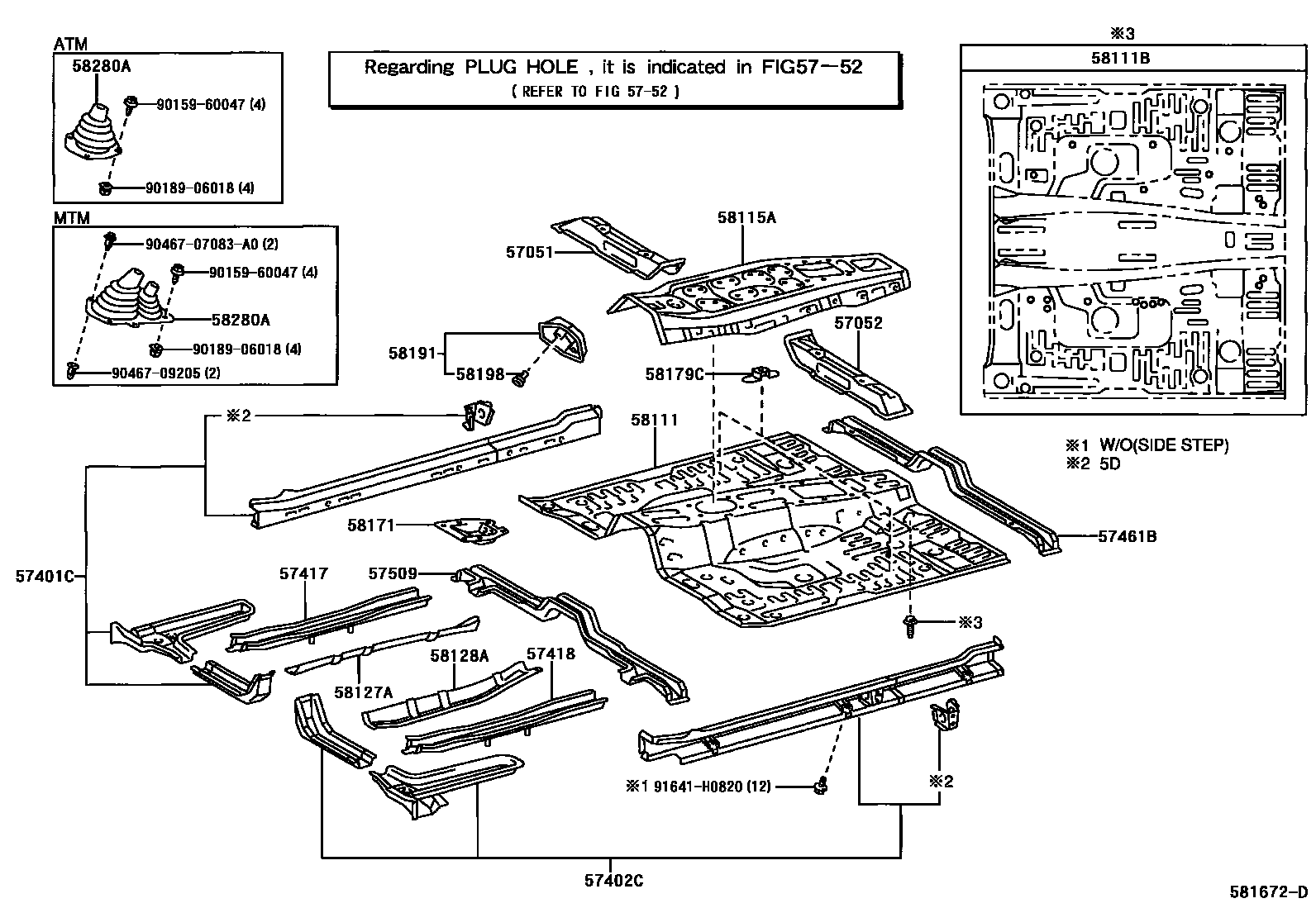

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35050iGRJ12#,KDJ12#200209-200807

sub57051-35051

main57051-35051iGRJ12#,KDJ12#200808

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35050iGRJ12#,KDJ12#200209-200807

sub57052-35051

main57052-35051iGRJ12#,KDJ12#200808

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-35907iGRJ120,KDJ120200209

main57401-60900iGRJ125,KDJ125200209

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-35908iGRJ120,KDJ120200209

main57402-60900iGRJ125,KDJ125200209

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35050iGRJ12#,KDJ12#200209-200603

sub57417-35051

main57417-35051iGRJ12#,KDJ12#200604

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35060iGRJ12#,KDJ12#200209-200603

sub57417-35061

main57417-35061iGRJ12#,KDJ12#200604

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-35020iGRJ120,KDJ120200209

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-35010iGRJ12#,KDJ12#200209

5752

58111PAN, FRONT FLOOR

main58111-6A330iGRJ12#,KDJ12#..ATM200209-200411

sub58111-6A331

main58111-6A331iGRJ12#,KDJ12#..5FC200412-200807

sub58111-6A332

main58111-6A332iGRJ12#,KDJ12#..5FC200808

main58111-6A350iKDJ12#..5F200209-200408

main58111-6A351iKDJ12#..6F200408-200503

sub58111-6A352

main58111-6A352iKDJ12#..6F200504-200807

sub58111-6A353

main58111-6A353iKDJ12#..6F200808

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166iGRJ12#,KDJ12#200209-200908

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-60010iGRJ120,KDJ12#..RHD..ATM200209-200808

sub58115-60011

main58115-60011iGRJ120,KDJ12#..RHD..5FC200809

main58115-60020iGRJ12#,KDJ12#..LHD..ATM200209

main58115-60030iKDJ12#..5F200209-200312

sub58115-60031

main58115-60031iKDJ12#..MTM200312

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010iGRJ12#,KDJ12#200209

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35010iGRJ12#,KDJ12#200209-200603

sub58128-35011

main58128-35011iGRJ12#,KDJ12#200604

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60020iGRJ12#,KDJ12#200209

58179CBRACKET, CLAMP FLOOR

58191FOOTREST, FRONT FLOOR

main58190-60080iGRJ12#,KDJ12#..LHD..ATM200209

main58190-60090iKDJ12#..LHD..MTM200209

main58190-60100iGRJ120,KDJ12#..RHD..ATM200209

sub58190-60170

main58190-60110iKDJ12#..RHD..MTM200209-200905

sub58190-60111

main58190-60111iKDJ12#..RHD..6F200906

sub58190-60112

58198CLIP, FOOTREST

main58198-20210iGRJ12#,KDJ12#200209

58280ABOOT ASSY, SHIFT LEVER

main58280-60180iKDJ12#..LHD..5F200209-200405

main58280-60181iKDJ12#..LHD..5F200405-200408

main58280-60200iKDJ12#..RHD..5F200209-200405

main58280-60201iKDJ12#..RHD..5F200405-200408

main58280-60220iGRJ12#,KDJ12#..LHD..ATM200209

main58280-60240iGRJ120,KDJ12#..RHD..ATM200209

main58280-60270iKDJ12#..RHD..6F200408

main58280-60280iKDJ12#..LHD..6F200408

9015960047

main90159-60047

9018906018

main90189-06018

9046707083A0

main90467-07083A0

9046709205

main90467-09205

91641H0820

main91641-H0820

24 parts on this diagram · 2 diagrams in section
