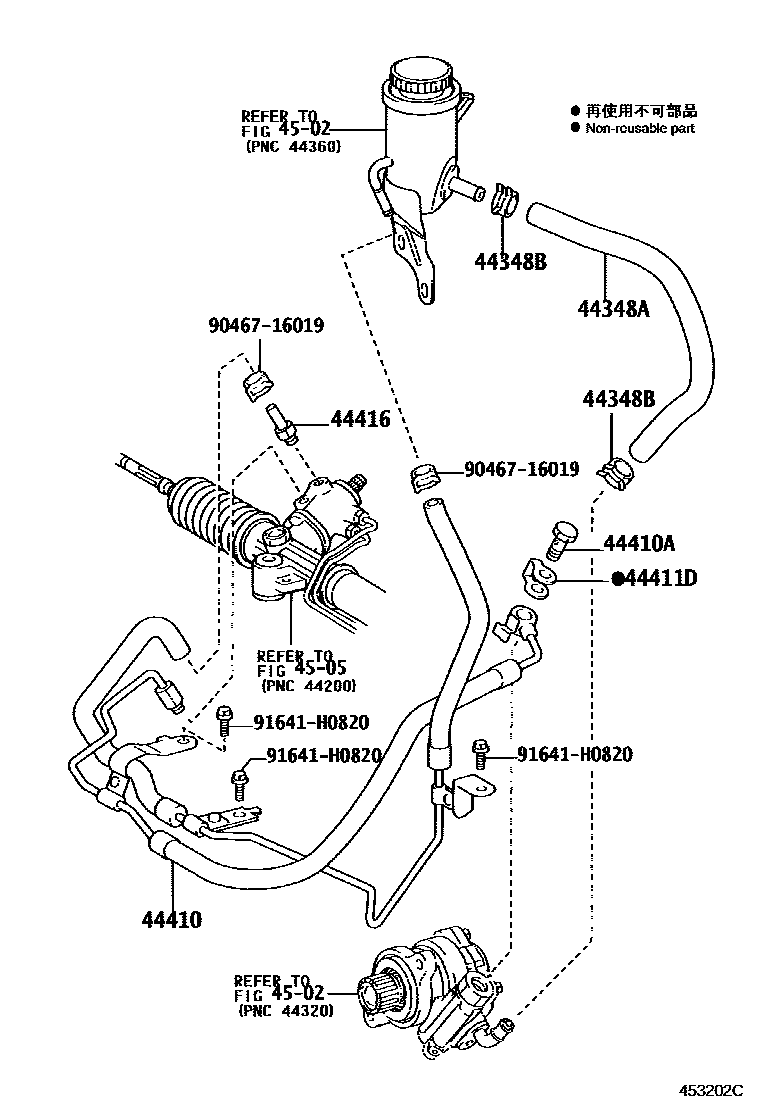

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35280iGRJ12#200301

main44348-35290iKDJ12#200209

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iGRJ12#,KDJ12#200209

44410TUBE ASSY, PRESSURE FEED

main44410-35690iGRJ12#..LHD200301-200507

main44410-35691iGRJ12#..LHD200508-200908

main44410-35720iKDJ12#..RHD200209-200507

main44410-35721iKDJ12#..RHD200508-200908

main44410-35730iKDJ12#..LHD200209-200507

main44410-35731iKDJ12#..LHD200508-200908

main44410-60550iGRJ120..RHD200301-200507

main44410-60551iGRJ120..RHD200508-200908

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iGRJ12#,KDJ12#200209-200908

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iGRJ12#,KDJ12#200209-200908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iGRJ12#,KDJ12#200209-200507

main44416-60370iGRJ12#,KDJ12#200508-200908

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9046716019

main90467-16019

91641H0820

main91641-H0820

10 parts on this diagram · 4 diagrams in section
