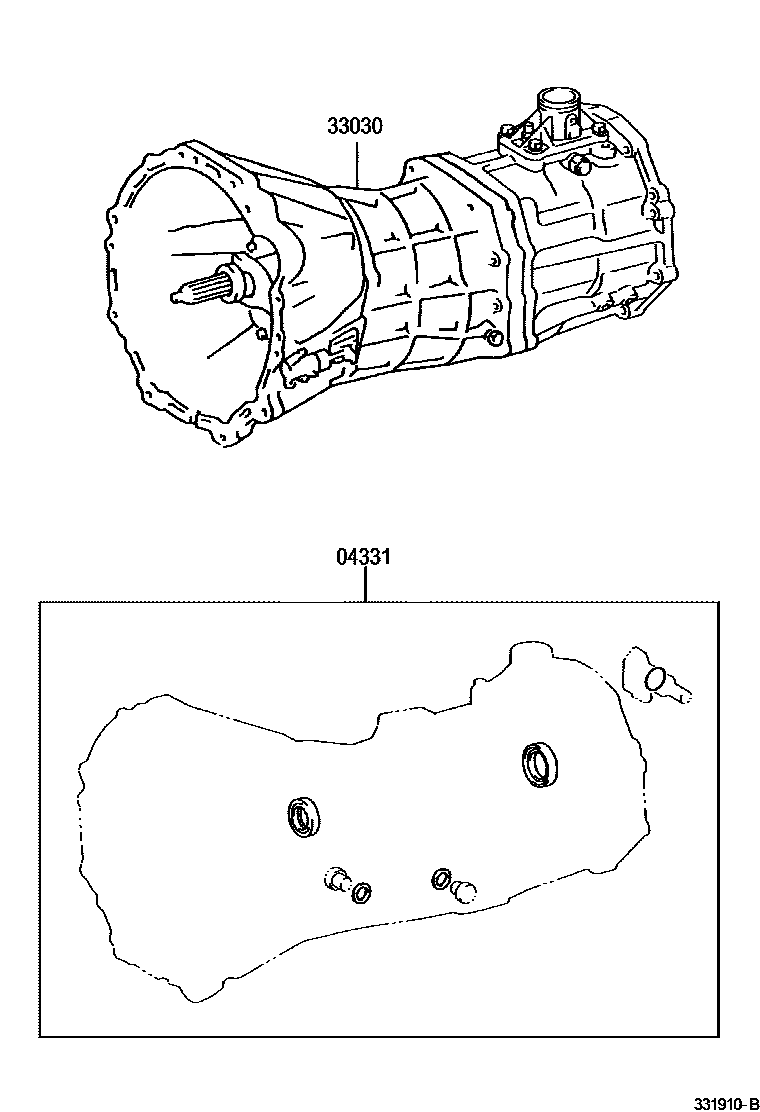

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60280iKDJ12#..5F200209-200408

main04331-60290iKDJ12#..6F200408-200908

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-60A30supersedes 33030-60A00iKDJ12#..6F200408-200506

RA61F,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main33030-60A31supersedes 33030-60A02iKDJ12#..6F200506-200708

RA61F,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main33030-60A32supersedes 33030-60A02iKDJ12#..6F200708-200908

RA61F,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main33030-6A620supersedes 33030-6A610iKDJ12#..5F200209-200408

R150,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

2 parts on this diagram · 1 diagram in section
