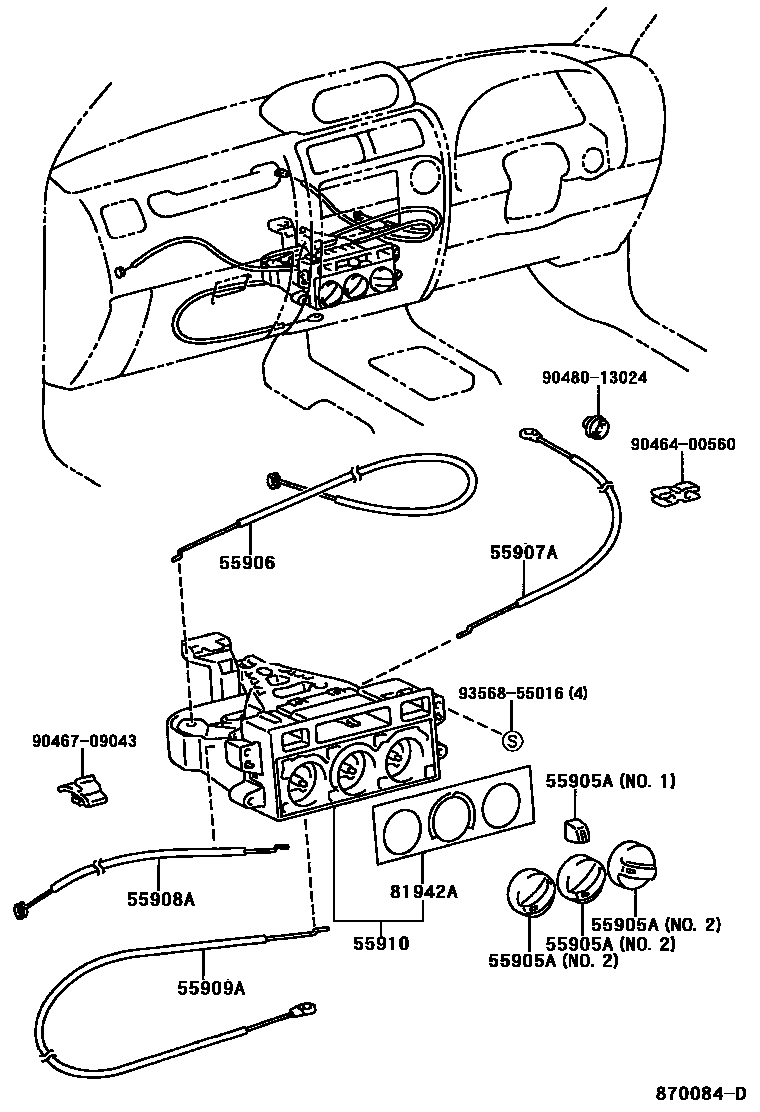

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55905AKNOB, HEATER CONTROL
NO.1
NO.2
TEMP
A/C
FRONT DEF
REAR DEF
MODE
OFF
RECIRCU/FRESH
AUTO
AUTO
A/C
55906CABLE SUB-ASSY, HEATER CONTROL
55907ACABLE SUB-ASSY, WATER VALVE CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
81942ASHEET, HEATER CONTROL NAME, NO.1
9046400560
main90464-00560
9046709043
main90467-09043
9048013024
main90480-13024
9356855016
main93568-55016
11 parts on this diagram · 6 diagrams in section
